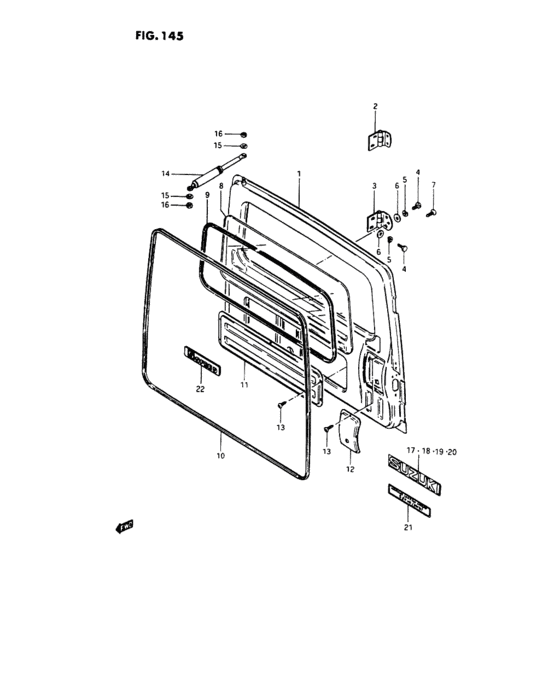

Back door (V) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-80241-000
Panel assy, back door
|
69100-80241-000 |
— | ||
| replacement | |||||
|
1
|
1
69100-80212-000
PANEL ASSY,BACK DOOR
|
69100-80212-000 |
— | ||
|
1
|
1
69100-80211-000
Panneau porte arriere
, , Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 7, Italy, Austria, Channel Islands, Israel,,8, Iceland |
69100-80211-000 |
— | ||
| replacement | |||||
|
1
|
1
69100-80212-000
PANEL ASSY,BACK DOOR
, , Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, 7, Italy, Austria, Channel Islands, Israel,,8, Iceland |
69100-80212-000 |
— | ||
|
1
|
1
69100-80251-000
Panel assy, back door
Indonesia |
69100-80251-000 |
— | ||
|
2
|
2
69510-80110-000
Charniere porte
|
69510-80110-000 |
— | ||
| replacement | |||||
|
2
|
2
69510-80111-000 HINGE,BACK DOOR UPR |
69510-80111-000 |
US $70.40 |
||
|
3
|
3
69520-80110-000
Hinge, lower
|
69520-80110-000 |
— | ||
| replacement | |||||
|
3
|
3
69520-80111-000 HINGE,BACK DOOR LWR |
69520-80111-000 |
US $70.40 |
||
|
4
|
4
09100-08167-000
ボルト,8X22
|
09100-08167-000 |
— | ||
| replacement | |||||
|
4
|
4
09118-08060-000 BOLT(8X22) |
09118-08060-000 |
US $1.28 |
||
|
5
|
5
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
5
|
5
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
6
|
6
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
6
|
6
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
6
|
6
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
7
|
7
09125-08002-000
スクリュ,8X20
, , Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, Italy, Austria, Channel Islands, Israel, 8,,Iceland |
09125-08002-000 |
— | ||
| replacement | |||||
|
7
|
7
09125-08015-XC0 SCREW(8X20), , Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, Italy, Austria, Channel Islands, Israel, 8,,Iceland |
09125-08015-XC0 |
US $1.60 |
||
|
8
|
8
84571-80132-000
Glace porte arriere
|
84571-80132-000 |
— | ||
| replacement | |||||
|
8
|
8
84571-82C10-000 GLASS,BACK DR WINDOW |
84571-82C10-000 |
US $169.28 |
||
|
8
|
8
84571-80112-000
Glass, back window
|
84571-80112-000 |
— | ||
| replacements | |||||
|
8
|
8
84571-82CD0-000 GLASS,BACK DR WINDOW |
84571-82CD0-000 |
US $307.28 |
||
|
8
|
8
84571-82C10-000 GLASS,BACK DR WINDOW |
84571-82C10-000 |
US $169.28 |
||
|
8
|
8
84571-80122-000
ガラス,バックドアウィンド(シロ/デフォッガ)
W/DEFOGGER |
84571-80122-000 |
— | ||
| replacement | |||||
|
8
|
8
84571-82CD0-000 GLASS,BACK DR WINDOWW/DEFOGGER |
84571-82CD0-000 |
US $307.28 |
||
|
8
|
8
84571-80102-000
Glass, back window
W/DEFOGGER |
84571-80102-000 |
— | ||
| replacement | |||||
|
8
|
8
84571-82CD0-000 GLASS,BACK DR WINDOWW/DEFOGGER |
84571-82CD0-000 |
US $307.28 |
||
|
9
|
9
84623-80100-000 WEATHERSTRIP,BACK WINDOW |
84623-80100-000 |
US $103.20 |
||
|
10
|
10
84681-80100-000
ウェザストリップ,バックウィンド
|
84681-80100-000 |
— | ||
| replacement | |||||
|
10
|
10
84681-82CA0-000 WEATHERSTRIP,BACK DR OPNG |
84681-82CA0-000 |
US $168 |
||
|
11
|
11
83771-80100-000 LID,BACK DR SVCE HOLE |
83771-80100-000 |
US $25.21 |
||
|
12
|
12
83772-80100-000 LID,BACK DR LATCH SVCE HOLE |
83772-80100-000 |
US $19.20 |
||
|
13
|
13
03141-05128-000
スクリュ
|
03141-05128-000 |
— | ||
| replacement | |||||
|
13
|
13
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
14
|
14
81860-80101-000 UNIT,DR BALANCER<-81860-80100 |
81860-80101-000 |
US $122.40 |
||
|
15
|
15
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
16
|
16
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
16
|
16
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
16
|
16
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
17
|
17
77813-80010-23E
Emblem, suzuki
TYPE 1 |
77813-80010-23E |
— | ||
| replacement | |||||
|
17
|
17
77813-80010-019 EMBLEM,TAILTYPE 1 |
77813-80010-019 |
US $63.84 |
||
|
18
|
18
77813-80010-23D
Emblem, suzuki
TYPE 1 |
77813-80010-23D |
— | ||
| replacement | |||||
|
18
|
18
77813-80010-019 EMBLEM,TAILTYPE 1 |
77813-80010-019 |
US $63.84 |
||
|
19
|
19
77813-80010-26Z
Emblem, tail
TYPE 2,TYPE 3 |
77813-80010-26Z |
— | ||
| replacement | |||||
|
19
|
19
77813-80010-27A
EMBLEM,TAIL
TYPE 2,TYPE 3 |
77813-80010-27A |
— | ||
|
20
|
20
77813-80010-27A
EMBLEM,TAIL
TYPE 2,TYPE 3 |
77813-80010-27A |
— | ||
|
21
|
21
86961-63600-000
EMBLEM,LOAD INDICATOR
250KG (5501B) |
86961-63600-000 |
— | ||
|
22
|
22
77841-81001-000
Anagrame 5 speed
<-77841-81000 |
77841-81001-000 |
— | ||
| replacement | |||||
|
22
|
22
77841-81002-000 EMBLEM,5SPEED<-77841-81000 |
77841-81002-000 |
US $18.24 |
||
