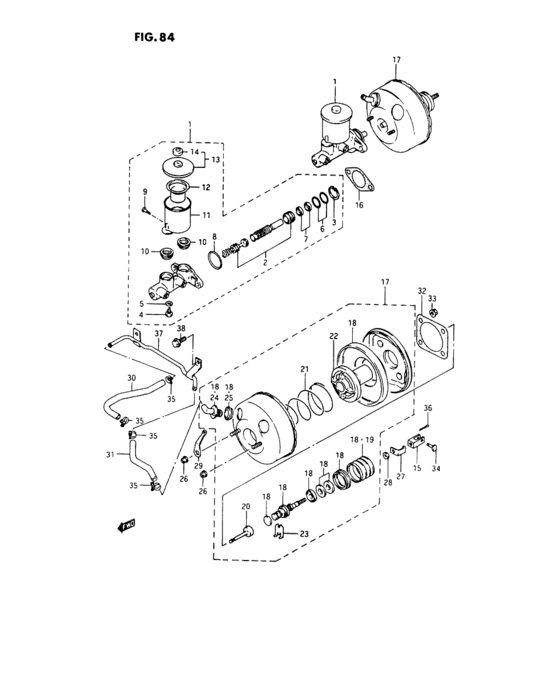

Brake master cylinder (LHD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-83220-000
Cylinder assy, brake master
TYPE 1 |
51100-83220-000 |
— | ||
|
1
|
1
51100-83270-000
Cylinder assy, brake master
TYPE 2,TYPE 3 |
51100-83270-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-83071-000 CYLINDER ASSY,BRAKE MASTERTYPE 2,TYPE 3 |
51100-83071-000 |
US $296.24 |
||
|
1
|
1
51100-83020-000
Cylinder assy,brake master
Finland, Norway, Sweden, Switzerland, Belgium, Germany, Holland,,Italy, Austria, Channel Islands, Israel |
51100-83020-000 |
— | ||
|
1
|
1
51100-83070-000
Cylinder assy,brake master
Finland, Norway, Switzerland, Belgium, Germany, Holland, Italy,,Austria, Channel Islands, Israel JSA0SJ50000128349~,JSA0SJ70000100052~,JSA0SJ51000103693~,JSA0SJ71000100003~,JSA0SJ50V00112831~,JSA0SJ70V00100017~,JSA0SJ51T00101243~ |
51100-83070-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-83071-000 CYLINDER ASSY,BRAKE MASTERFinland, Norway, Switzerland, Belgium, Germany, Holland, Italy,,Austria, Channel Islands, Israel JSA0SJ50000128349~,JSA0SJ70000100052~,JSA0SJ51000103693~,JSA0SJ71000100003~,JSA0SJ50V00112831~,JSA0SJ70V00100017~,JSA0SJ51T00101243~ |
51100-83071-000 |
US $296.24 |
||
|
1
|
1
51100-83520-000
Cylinder assy, brake master
Sweden JSA0SJ50000108806~,JSA0SJ51000101053~,JSA0SJ50V00103867~,JSA0SJ51T00100127~ |
51100-83520-000 |
— | ||
|
1
|
1
51100-83570-000
Cylinder assy, brake master
Sweden JSA0SJ50000128349~,JSA0SJ51000103693~,JSA0SJ50V00112831~,JSA0SJ51T00101243~ |
51100-83570-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-83071-000 CYLINDER ASSY,BRAKE MASTERSweden JSA0SJ50000128349~,JSA0SJ51000103693~,JSA0SJ50V00112831~,JSA0SJ51T00101243~ |
51100-83071-000 |
US $296.24 |
||
|
2
|
2
51100-82830-000
Piston set,brake master
TYPE 1 |
51100-82830-000 |
— | ||
|
2
|
2
51100-83810-000
Piston set,brake master
TYPE 2,TYPE 3 |
51100-83810-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-83811-000 PISTON SET,BRAKE MASTERTYPE 2,TYPE 3 |
51100-83811-000 |
US $61.60 |
||
|
3
|
3
51162-82020-000
サークリップ,ピストンストッパ
|
51162-82020-000 |
— | ||
| replacement | |||||
|
3
|
3
08331-41329-000 CIRCLIP |
08331-41329-000 |
from US $1.52 |
||
|
4
|
4
51165-82020-000
ボルト,セカンダリストッパ
|
51165-82020-000 |
— | ||
|
5
|
5
51166-67020-000
リング,ストッパボルトシール
|
51166-67020-000 |
— | ||
|
6
|
6
51183-82020-000
Oリング,ピストンストッパ
|
51183-82020-000 |
— | ||
|
7
|
7
51184-82020-000 CUP,CYLINDER |
51184-82020-000 |
US $4.27 |
||
|
8
|
8
51185-82020-000
Oリング,マスタシリンダ
|
51185-82020-000 |
— | ||
|
9
|
9
51193-82020-000
スクリュ,コネクタ
|
51193-82020-000 |
— | ||
|
10
|
10
51197-82020-000 GROMMET,RESERVOIR CONNECTOR |
51197-82020-000 |
US $2.43 |
||
|
11
|
11
51211-83020-000
リザーバ,マスタシリンダ
|
51211-83020-000 |
— | ||
| replacement | |||||
|
11
|
11
51200-83020-000
RESERVOIR ASSY,MASTER CYLINDER
|
51200-83020-000 |
— | ||
|
12
|
12
51234-83020-000
ストレーナ,シリンダリザーバ
|
51234-83020-000 |
— | ||
|
13
|
13
51220-83220-000
Cap, reservoir
|
51220-83220-000 |
— | ||
| replacement | |||||
|
13
|
13
51220-83020-000
Cap,cylinder reservoir
|
51220-83020-000 |
— | ||
|
13
|
13
51220-83020-000
Cap,cylinder reservoir
Finland, Norway, Sweden, Switzerland, Belgium, Germany, Holland,,Italy, Austria, Saudi Arabia, Channel Islands, Israel |
51220-83020-000 |
— | ||
|
13
|
13
51220-83520-000
Cap assy, cylinder reservoir
Sweden JSA0SJ50000108806~,JSA0SJ51000101053~,JSA0SJ50V00103867~,JSA0SJ51T00100127~ |
51220-83520-000 |
— | ||
| replacement | |||||
|
13
|
13
51220-83020-000
Cap,cylinder reservoir
Sweden JSA0SJ50000108806~,JSA0SJ51000101053~,JSA0SJ50V00103867~,JSA0SJ51T00100127~ |
51220-83020-000 |
— | ||
|
14
|
14
51235-82120-000
キャップ,フィラキャップブリーザ
|
51235-82120-000 |
— | ||
|
14
|
14
51235-82420-000
Cap, filler cap breather
Sweden JSA0SJ50000108806~,JSA0SJ51000101053~,JSA0SJ50V00103867~,JSA0SJ51T00100127~ |
51235-82420-000 |
— | ||
|
15
|
15
51182-82020-000
クレビス,プッシュロッド
|
51182-82020-000 |
— | ||
| replacement | |||||
|
15
|
15
51182-77E00-000 CLEVIS,CYLINDER PUSH ROD |
51182-77E00-000 |
US $9.12 |
||
|
16
|
16
51199-82020-000
GASKET,MASTER CYLINDER
|
51199-82020-000 |
— | ||
|
17
|
17
51300-83120-000
Booster assy, brake master
TYPE 1 |
51300-83120-000 |
— | ||
|
17
|
17
51300-83170-000
Booster assy,brake master
TYPE 2,TYPE 3 |
51300-83170-000 |
— | ||
|
18
|
18
51300-82840-000
Repair kit, brake master
TYPE 1 |
51300-82840-000 |
— | ||
|
18
|
18
51300-83810-000
Repair kit, brake master
TYPE 2,TYPE 3 |
51300-83810-000 |
— | ||
|
19
|
19
51330-82020-000
ブーツ,ブースタボディ
|
51330-82020-000 |
— | ||
|
20
|
20
51350-83020-000
ロッドアッシ,ブースタピストン
|
51350-83020-000 |
— | ||
|
21
|
21
51360-83120-000
Spring, booster piston
<-51360-83020 |
51360-83120-000 |
— | ||
| replacement | |||||
|
21
|
21
51360-83121-000
スプリング,ブースタピストン
<-51360-83020 |
51360-83121-000 |
— | ||
|
22
|
22
51363-83020-000
Piston, booster
TYPE 1 |
51363-83020-000 |
— | ||
|
22
|
22
51363-83170-000
ピストン,ブースタ
TYPE 2,TYPE 3 |
51363-83170-000 |
— | ||
|
23
|
23
51364-83020-000
Key, valve stopper
|
51364-83020-000 |
— | ||
| replacement | |||||
|
23
|
23
51364-83021-000
キー,バルブストッパ
|
51364-83021-000 |
— | ||
|
24
|
24
51370-83120-000
Valve assy, vacuum check
|
51370-83120-000 |
— | ||
|
25
|
25
51371-82020-000 GROMMET,CHECK VALVE |
51371-82020-000 |
US $1.98 |
||
|
26
|
26
51313-82020-000
ナット,ブースタ
|
51313-82020-000 |
— | ||
| replacement | |||||
|
26
|
26
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
27
|
27
51348-82020-000
ブラケット,プッシュロッド
|
51348-82020-000 |
— | ||
|
28
|
28
51349-82020-000
ナット,シリンダプッシュロッド
|
51349-82020-000 |
— | ||
| replacements | |||||
|
28
|
28
09140-10019-000 NUT |
09140-10019-000 |
US $9.20 |
||
|
28
|
28
08310-30107-000
New Genuine Part
|
08310-30107-000 |
— | ||
|
29
|
29
51372-83120-000
Bracket, check valve
|
51372-83120-000 |
— | ||
|
30
|
30
51010-83010-000
Hose, brake vacuum intake
|
51010-83010-000 |
— | ||
| replacement | |||||
|
30
|
30
51010-83061-000
Hose,brake vacuum intake
|
51010-83061-000 |
— | ||
|
30
|
30
51010-83210-000
Hose, brake vacuum intake
Sweden, Switzerland:W/CATALYZER |
51010-83210-000 |
— | ||
| replacement | |||||
|
30
|
30
51010-83261-000
New Genuine Part
Sweden, Switzerland:W/CATALYZER |
51010-83261-000 |
— | ||
|
30
|
30
51010-83000-000
Hose, brake vacuum intake
JSA0SJ50000151050~,JSA0SJ50V000130439~,JSA0SJ51T00105042~,JSA0SJ51000110121~ SJ50-130529~,SJ51-105028~ SJ51T-105046~ |
51010-83000-000 |
— | ||
| replacement | |||||
|
30
|
30
51010-83061-000
Hose,brake vacuum intake
JSA0SJ50000151050~,JSA0SJ50V000130439~,JSA0SJ51T00105042~,JSA0SJ51000110121~ SJ50-130529~,SJ51-105028~ SJ51T-105046~ |
51010-83061-000 |
— | ||
|
30
|
30
51010-83200-000
Hose, brake vacuum intake
Sweden, Switzerland:W/CATALYZER,JSA0SJ50000150898~,JSA0SJ51000110111~ |
51010-83200-000 |
— | ||
| replacement | |||||
|
30
|
30
51010-83261-000
New Genuine Part
Sweden, Switzerland:W/CATALYZER,JSA0SJ50000150898~,JSA0SJ51000110111~ |
51010-83261-000 |
— | ||
|
31
|
31
51010-83020-000
Hose, brake vacuum
|
51010-83020-000 |
— | ||
| replacement | |||||
|
31
|
31
51010-83021-000
HOSE,BRAKE VACUUM
|
51010-83021-000 |
— | ||
|
32
|
32
51132-82002-000
パッキング,ブレーキマスタシリンダ
<-51132-82001 |
51132-82002-000 |
— | ||
| replacement | |||||
|
32
|
32
51132-82003-000 PACKING,BRAKE MASTER CYLINDER<-51132-82001 |
51132-82003-000 |
US $1.60 |
||
|
33
|
33
09159-08052-000
ナット
<-09159-08051 |
09159-08052-000 |
— | ||
| replacement | |||||
|
33
|
33
09159-08135-000 NUT<-09159-08051 |
09159-08135-000 |
from US $0.77 |
||
|
34
|
34
09200-10010-000
ピン
|
09200-10010-000 |
— | ||
| replacement | |||||
|
34
|
34
09200-10021-000 PIN |
09200-10021-000 |
US $1.28 |
||
|
35
|
35
09400-19302-000
クランプ
<-09400-19301 |
09400-19302-000 |
— | ||
| replacement | |||||
|
35
|
35
09401-15404-000 CLIP<-09400-19301 |
09401-15404-000 |
from US $1.06 |
||
|
36
|
36
04111-25206-000
コッタピン
|
04111-25206-000 |
— | ||
| replacement | |||||
|
36
|
36
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
37
|
37
51380-83000-000
Pipe, brake booster
|
51380-83000-000 |
— | ||
|
38
|
38
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
38
|
38
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
