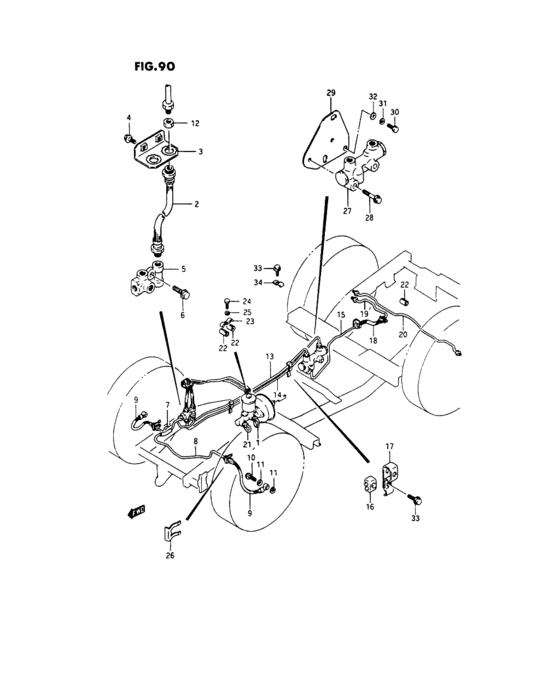

Brake piping (W:) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-83100-000
Pipe, brake no. 1
LHD |
51410-83100-000 |
— | ||
|
1
|
1
51410-83000-000
Pipe,brake,no.1
RHD |
51410-83000-000 |
— | ||
|
2
|
2
51570-83030-000
ホース,マスタシリンダフレキシブル
|
51570-83030-000 |
— | ||
| replacement | |||||
|
2
|
2
51570-80030-000 HOSE,MASTER CYLINDER FLEXIBLE |
51570-80030-000 |
US $12.80 |
||
|
3
|
3
51712-83001-000 BRACKET,MA CYL HOSE |
51712-83001-000 |
US $2.72 |
||
|
4
|
4
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
4
|
4
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
5
|
5
51650-83040-000 JOINT,6WAY BRAKE |
51650-83040-000 |
US $40.80 |
||
|
6
|
6
01517-06253-000
ボルト
|
01517-06253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
6
|
6
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
7
|
7
51420-83400-000
Pipe, brake no. 2
|
51420-83400-000 |
— | ||
|
8
|
8
51430-83400-000
Pipe, brake no. 3
|
51430-83400-000 |
— | ||
|
9
|
9
51540-80151-000 HOSE,FR BRAKE FLEXIBLE |
51540-80151-000 |
US $13.83 |
||
|
10
|
10
09360-10026-000 Union bolt |
09360-10026-000 |
from US $1.85 |
||
|
11
|
11
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
12
|
12
09140-16007-000 NUT |
09140-16007-000 |
US $1.92 |
||
|
13
|
13
51460-83400-000
Pipe, brake no. 6
|
51460-83400-000 |
— | ||
|
14
|
14
51340-83400-000
Pipe, brake no. 14
|
51340-83400-000 |
— | ||
|
15
|
15
51350-83400-000
Pipe, brake no. 15
|
51350-83400-000 |
— | ||
|
16
|
16
51401-83000-000
RETAINER,BRAKE PIPE
|
51401-83000-000 |
— | ||
| replacement | |||||
|
16
|
16
51402-83000-000 CLAMP,BRAKE PIPE |
51402-83000-000 |
US $3.09 |
||
|
17
|
17
51402-83000-000 CLAMP,BRAKE PIPE |
51402-83000-000 |
US $3.09 |
||
|
18
|
18
51580-80131-000 HOSE,RR BRAKE FLEXIBLE |
51580-80131-000 |
US $29.81 |
||
|
19
|
19
51470-83000-000 PIPE,BRAKE NO.7 |
51470-83000-000 |
US $12.95 |
||
|
20
|
20
51480-83000-000 PIPE,BRAKE NO.8 |
51480-83000-000 |
US $17.63 |
||
|
21
|
21
51520-83100-000
Pipe, brake no. 12
LHD |
51520-83100-000 |
— | ||
|
21
|
21
51520-83000-000
PIPE,BRAKE NO.12
RHD |
51520-83000-000 |
— | ||
|
22
|
22
51755-67000-000
New Genuine Part
|
51755-67000-000 |
— | ||
| replacement | |||||
|
22
|
22
51755-77200-000 PROTECTOR,BRAKE PIPE |
51755-77200-000 |
US $4.56 |
||
|
23
|
23
09403-07312-000 CLAMPLHD |
09403-07312-000 |
from US $0.92 |
||
|
24
|
24
01107-06123-000
Bolt 6x1x16
LHD |
01107-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01500-0612A-000 BOLTLHD |
01500-0612A-000 |
from US $0.76 |
||
|
24
|
24
01500-06123-000
Bolt, front
LHD |
01500-06123-000 |
— | ||
|
25
|
25
08321-21063-000 Lock washerLHD |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
25
|
25
08321-0106A-000 WASHER,LOCKLHD |
08321-0106A-000 |
from US $0.76 |
||
|
26
|
26
09383-13001-000 E RING |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
26
|
26
09383-13003-000 E-RING |
09383-13003-000 |
from US $1.60 |
||
|
27
|
27
51920-83020-000
Valve assy, p & b
|
51920-83020-000 |
— | ||
|
28
|
28
01517-06353-000
ボルト
|
01517-06353-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
28
|
28
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
29
|
29
51951-83300-000
Plate, p & b valve
|
51951-83300-000 |
— | ||
|
30
|
30
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
30
|
30
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
30
|
30
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
31
|
31
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
31
|
31
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
32
|
32
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
32
|
32
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
33
|
33
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
|
34
|
34
09403-05302-000 CLAMPClamp |
09403-05302-000 |
US $1.28 |
||
