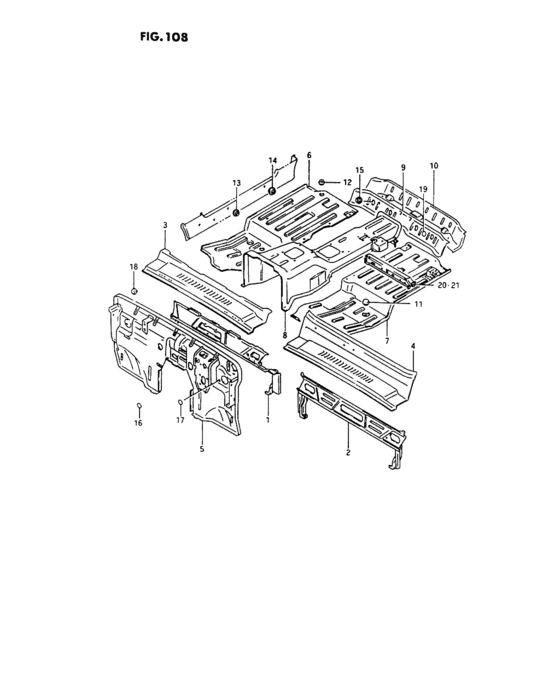

Center panel (CENTER PANEL) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-83011-000
Panel assy,cowl upper rr
LHD |
59600-83011-000 |
— | ||
|
1
|
1
59600-83001-000 PANEL ASSY,COWL UPPERRHD |
59600-83001-000 |
US $127.68 |
||
|
2
|
2
59600-83131-000
Paneau sup ar mod - v
LHD |
59600-83131-000 |
— | ||
|
2
|
2
59600-83121-000
Panel assy,cowl,upper
RHD |
59600-83121-000 |
— | ||
|
2
|
2
59600-83111-000
Panel assy, cowl upper rear
LHD |
59600-83111-000 |
— | ||
|
2
|
2
59600-83101-000
パネルアッシ,カウリングアッパ,リヤ
RHD |
59600-83101-000 |
— | ||
| replacement | |||||
|
2
|
2
59600-83121-000
Panel assy,cowl,upper
RHD |
59600-83121-000 |
— | ||
|
3
|
3
59300-83001-000
PANEL ASSY,COWL UPPER
|
59300-83001-000 |
— | ||
| replacement | |||||
|
3
|
3
59300-830V0-000 PANEL ASSY,COWL UPR |
59300-830V0-000 |
US $113.25 |
||
|
4
|
4
59300-80142-000
Panneau tablier mod-v
LHD |
59300-80142-000 |
— | ||
| replacement | |||||
|
4
|
4
59300-80144-000
Panel assy,cowl upper
LHD |
59300-80144-000 |
— | ||
|
4
|
4
59300-80102-000
パネルアッシ,カウリング,アッパ
RHD |
59300-80102-000 |
— | ||
| replacement | |||||
|
4
|
4
59300-80104-000 PANEL ASSY,COWL UPPERRHD |
59300-80104-000 |
US $401.12 |
||
|
5
|
5
61100-83090-000
Panel, dash
LHD, TYPE 1,TYPE 2 |
61100-83090-000 |
— | ||
| replacement | |||||
|
5
|
5
61100-83050-000
Panel, dash
LHD, TYPE 1,TYPE 2 |
61100-83050-000 |
— | ||
|
5
|
5
61100-83021-000
Panel, dash
TYPE 3 |
61100-83021-000 |
— | ||
|
5
|
5
61100-83040-000
Panel, dash
RHD |
61100-83040-000 |
— | ||
|
5
|
5
61100-83070-000
Panel, dash
RHD |
61100-83070-000 |
— | ||
|
5
|
5
61100-83310-000
Panel, dash
Sweden, Switzerland:W/CATALYZER |
61100-83310-000 |
— | ||
| replacement | |||||
|
5
|
5
61100-83311-000
Panel, dash
Sweden, Switzerland:W/CATALYZER |
61100-83311-000 |
— | ||
|
6
|
6
61400-83010-000
Panel, floor rh
TYPE 1:LHD |
61400-83010-000 |
— | ||
|
6
|
6
61400-83031-000
Panel,front floor,r
TYPE 2:LHD <-61400-83030 |
61400-83031-000 |
— | ||
|
6
|
6
61400-83040-000
Panel, floor rh
TYPE 3:LHD |
61400-83040-000 |
— | ||
| replacement | |||||
|
6
|
6
61400-83041-000
PANEL,FRONT FLOOR,R
TYPE 3:LHD |
61400-83041-000 |
— | ||
|
6
|
6
61400-83000-000
Panel, floor rh
TYPE 1:RHD |
61400-83000-000 |
— | ||
|
6
|
6
61400-83020-000
パネル,フロントフロア,ライト
TYPE 2,TYPE 3:RHD |
61400-83020-000 |
— | ||
| replacement | |||||
|
6
|
6
61400-80260-000 PANEL,FRONT FLOOR,RTYPE 2,TYPE 3:RHD |
61400-80260-000 |
US $298.08 |
||
|
7
|
7
61500-83010-000
Paneau stage av cg
LHD |
61500-83010-000 |
— | ||
| replacements | |||||
|
7
|
7
61600-83011-000
Paneau tunel
LHD |
61600-83011-000 |
— | ||
|
7
|
7
61500-80260-000
PANEL,FRONT FLOOR,L
LHD |
61500-80260-000 |
— | ||
|
7
|
7
61500-83001-000
パネル,フロントフロア,レフト
RHD <-61500-83000 |
61500-83001-000 |
— | ||
| replacement | |||||
|
7
|
7
61500-83002-000 PANEL,FRONT FLOOR,LRHD <-61500-83000 |
61500-83002-000 |
US $314.64 |
||
|
7
|
7
61500-83020-000
Pnale, floor lh
TYPE 3:RHD |
61500-83020-000 |
— | ||
| replacement | |||||
|
7
|
7
61500-83021-000 PANEL,FRONT FLOOR,LTYPE 3:RHD |
61500-83021-000 |
US $314.64 |
||
|
8
|
8
61600-83011-000
Paneau tunel
LHD |
61600-83011-000 |
— | ||
|
8
|
8
61600-83001-000 PANEL,FLOOR TUNNELRHD |
61600-83001-000 |
US $230 |
||
|
8
|
8
61600-83051-000
Panel, tunnel
W:Thailand |
61600-83051-000 |
— | ||
|
8
|
8
61600-83031-000
Panel, tunnel
|
61600-83031-000 |
— | ||
|
8
|
8
61600-83041-000
Panel, tunnel
Finland, Germany |
61600-83041-000 |
— | ||
|
8
|
8
61600-83021-000
Panel, tunnel
Finland, Germany, Austria |
61600-83021-000 |
— | ||
|
9
|
9
61810-83010-000
Member, floor no.1
TYPE 1 |
61810-83010-000 |
— | ||
| replacement | |||||
|
9
|
9
61810-83030-000 MEMBER,CTR FL NO.1TYPE 1 |
61810-83030-000 |
US $64 |
||
|
9
|
9
61810-83030-000 MEMBER,CTR FL NO.1TYPE 2,TYPE 3 |
61810-83030-000 |
US $64 |
||
|
9
|
9
61810-83040-000
Member, floor no.1
SEPARATE SEAT |
61810-83040-000 |
— | ||
| replacement | |||||
|
9
|
9
61810-83030-000 MEMBER,CTR FL NO.1SEPARATE SEAT |
61810-83030-000 |
US $64 |
||
|
10
|
10
61820-83010-000
メンバ,センタフロア,NO.2
|
61820-83010-000 |
— | ||
| replacement | |||||
|
10
|
10
61820-8300V-000 MEMBER,CTR FL NO.2 |
61820-8300V-000 |
US $124.80 |
||
|
10
|
10
61820-83000-000
メンバ,センタフロア,NO.2
Norway, Cyprus, Greece |
61820-83000-000 |
— | ||
| replacement | |||||
|
10
|
10
61820-8300V-000 MEMBER,CTR FL NO.2Norway, Cyprus, Greece |
61820-8300V-000 |
US $124.80 |
||
|
11
|
11
09250-40002-000 CAP(OD:52) |
09250-40002-000 |
from US $1.82 |
||
|
12
|
12
09250-30002-000
キャップ,OD:30
|
09250-30002-000 |
— | ||
| replacement | |||||
|
12
|
12
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
13
|
13
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
14
|
14
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $0.97 |
||
|
15
|
15
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
16
|
16
67627-70000-000
シール,ホール
|
67627-70000-000 |
— | ||
| replacement | |||||
|
16
|
16
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
17
|
17
67627-70000-000
シール,ホール
|
67627-70000-000 |
— | ||
| replacement | |||||
|
17
|
17
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
18
|
18
09250-20011-000
キャップ
N/HEATER |
09250-20011-000 |
— | ||
| replacement | |||||
|
18
|
18
09250-20015-000 CAP(OD:28.5)Cap, air con harness N/HEATER |
09250-20015-000 |
from US $0.79 |
||
|
19
|
19
67627-70000-000
シール,ホール
|
67627-70000-000 |
— | ||
| replacement | |||||
|
19
|
19
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
|
20
|
20
61550-80001-000
Renfort cg
LHD |
61550-80001-000 |
— | ||
| replacement | |||||
|
20
|
20
61550-57C00-000
MEMBER,FR SEAT,L
LHD |
61550-57C00-000 |
— | ||
|
21
|
21
61450-80001-000
メンバ,フロントシート,ライト
RHD |
61450-80001-000 |
— | ||
| replacement | |||||
|
21
|
21
61450-57C00-000 MEMBER,FR SEAT,RRHD |
61450-57C00-000 |
US $50.40 |
||
