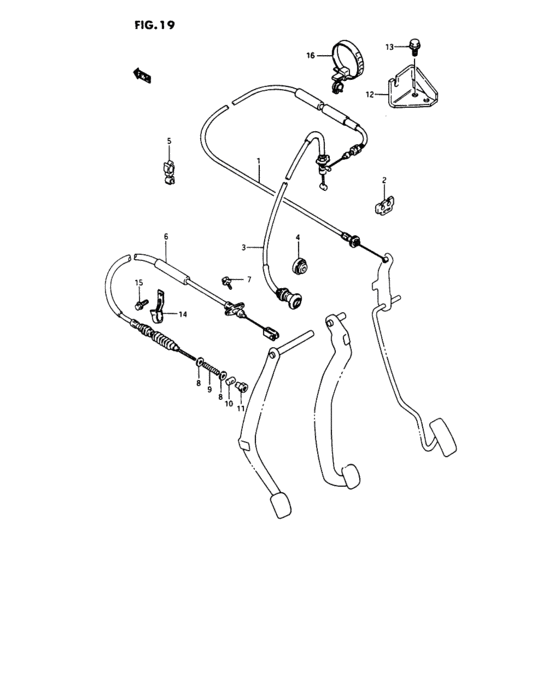

Control cable (CONTROL CABLE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-83010-000
CABLE ASSY,ACCEL
LHD |
15910-83010-000 |
— | ||
|
1
|
1
15910-83000-000
CABLE ASSY,ACCEL
RHD |
15910-83000-000 |
— | ||
|
1
|
1
15910-83300-000
Cable assy, accel
Sweden, Switzerland:W/CATALYZER |
15910-83300-000 |
— | ||
| replacement | |||||
|
1
|
1
15910-8330V-000
CABLE ASSY,ACCEL
Sweden, Switzerland:W/CATALYZER |
15910-8330V-000 |
— | ||
|
2
|
2
15991-83000-000
CLAMP,ACCEL CABLE
LHD |
15991-83000-000 |
— | ||
|
3
|
3
15930-83010-000
Cable assy, choke
LHD |
15930-83010-000 |
— | ||
| replacement | |||||
|
3
|
3
15930-60A3V-000
CABLE,CHOKE
LHD |
15930-60A3V-000 |
— | ||
|
3
|
3
15930-83000-000
Cable assy, choke
RHD |
15930-83000-000 |
— | ||
| replacement | |||||
|
3
|
3
15930-60A2V-000
CABLE,CHOKE
RHD |
15930-60A2V-000 |
— | ||
|
4
|
4
15939-83000-000 PLUG,CHOKE CABLE, , Finland, Norway, Sweden, Switzerland, Belgium,,2, 5, Sinagpore, Italy, Hong Kong, Austria, Saudi Arabia,,Channel Islands, Israel, 8 |
15939-83000-000 |
US $1.52 |
||
|
5
|
5
09408-00049-000 CLAMPLHD |
09408-00049-000 |
US $1.28 |
||
|
6
|
6
23710-83022-000
Cable assy, clutch
LHD, ->23710-83023 USED WITH,23911-83001 |
23710-83022-000 |
— | ||
| replacements | |||||
|
6
|
6
23710-83024-000
CABLE ASSY,CLUTCH
LHD, ->23710-83023 USED WITH,23911-83001 |
23710-83024-000 |
— | ||
|
6
|
6
23911-83003-000 BRACKET,CLUTCH CABLELHD, ->23710-83023 USED WITH,23911-83001 |
23911-83003-000 |
US $13.51 |
||
|
6
|
6
23710-83023-000
Cable assy, clutch
SJ50-108657~ SJ51-101246~,SJ51T-101523~ JSA0SJ50000115923~,JSA0SJ51000101939~,JSA0SJ50V00106894~,JSA0SJ51T00100171~ |
23710-83023-000 |
— | ||
| replacement | |||||
|
6
|
6
23710-83024-000
CABLE ASSY,CLUTCH
SJ50-108657~ SJ51-101246~,SJ51T-101523~ JSA0SJ50000115923~,JSA0SJ51000101939~,JSA0SJ50V00106894~,JSA0SJ51T00100171~ |
23710-83024-000 |
— | ||
|
6
|
6
23710-83011-000
Cable assy, clutch
RHD, ->23710-83012 USED WITH,23911-83001 |
23710-83011-000 |
— | ||
| replacements | |||||
|
6
|
6
23710-83013-000 CABLE ASSY,CLUTCHRHD, ->23710-83012 USED WITH,23911-83001 |
23710-83013-000 |
US $120.80 |
||
|
6
|
6
23911-83003-000 BRACKET,CLUTCH CABLERHD, ->23710-83012 USED WITH,23911-83001 |
23911-83003-000 |
US $13.51 |
||
|
6
|
6
23710-83012-000
Cable assy, clutch
SJ50-108657~ SJ51-101246~,SJ51T-101523~ JSA0SJ50000115923~,JSA0SJ51000101939~,JSA0SJ50V00106894~,JSA0SJ51T00100171~ |
23710-83012-000 |
— | ||
| replacement | |||||
|
6
|
6
23710-83013-000 CABLE ASSY,CLUTCHSJ50-108657~ SJ51-101246~,SJ51T-101523~ JSA0SJ50000115923~,JSA0SJ51000101939~,JSA0SJ50V00106894~,JSA0SJ51T00100171~ |
23710-83013-000 |
US $120.80 |
||
|
7
|
7
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
7
|
7
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
8
|
8
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
9
|
9
09440-08026-000 SPRING |
09440-08026-000 |
from US $1.22 |
||
|
10
|
10
09209-13007-000
ピン
|
09209-13007-000 |
— | ||
| replacement | |||||
|
10
|
10
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.82 |
||
|
11
|
11
09150-06010-000 NUT |
09150-06010-000 |
from US $1.82 |
||
|
12
|
12
23911-83000-000
Bracket, clutch cable
|
23911-83000-000 |
— | ||
| replacement | |||||
|
12
|
12
23911-83003-000 BRACKET,CLUTCH CABLE |
23911-83003-000 |
US $13.51 |
||
|
12
|
12
23911-83001-000
Bracket, clutch cable
SJ50-108657~ SJ51-101246~,SJ51T-101523~ JSA0SJ50000115923~,JSA0SJ51000101939~,JSA0SJ50V00106894~,JSA0SJ51T00100171~ |
23911-83001-000 |
— | ||
| replacement | |||||
|
12
|
12
23911-83003-000 BRACKET,CLUTCH CABLESJ50-108657~ SJ51-101246~,SJ51T-101523~ JSA0SJ50000115923~,JSA0SJ51000101939~,JSA0SJ50V00106894~,JSA0SJ51T00100171~ |
23911-83003-000 |
US $13.51 |
||
|
13
|
13
01517-10203-000
ボルト
|
01517-10203-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
14
|
14
23915-83000-000
CLAMP,CLUTCH CABLE,NO.1
LHD |
23915-83000-000 |
— | ||
|
15
|
15
01517-06103-000
ボルト
LHD |
01517-06103-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0610A-000 BOLTLHD |
01550-0610A-000 |
from US $0.80 |
||
|
15
|
15
01550-0610B-000 BoltBolt LHD |
01550-0610B-000 |
from US $0.80 |
||
|
16
|
16
09403-12310-000 CLAMPRHD |
09403-12310-000 |
US $35.30 |
||
