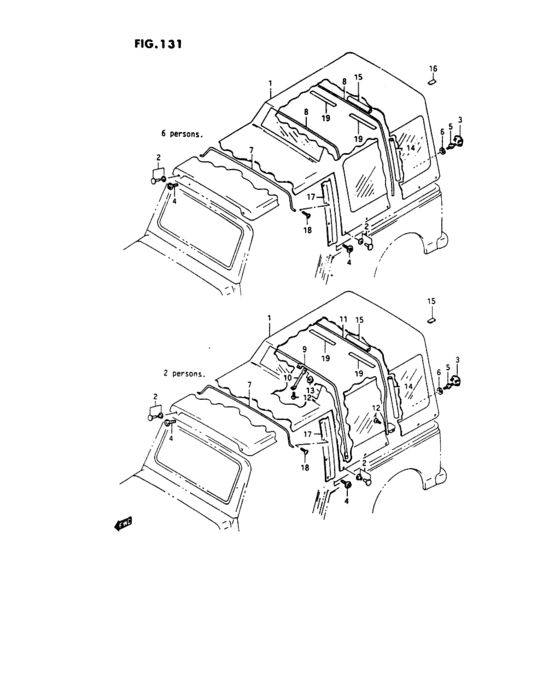

Deck top (W:F) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78310-83313-45R
Deck assy, top
<-78310-83312-45R |
78310-83313-45R |
— | ||
|
1
|
1
78310-83441-45R
Deck assy, top
Norway, <-78310-83440-45R |
78310-83441-45R |
— | ||
|
1
|
1
78310-83303-40S
Deck assy, top
<-78310-83302-40S |
78310-83303-40S |
— | ||
| replacement | |||||
|
1
|
1
78310-83303-6EP
DECK ASSY,TOP
<-78310-83302-40S |
78310-83303-6EP |
— | ||
|
1
|
1
78310-83451-40S
Deck assy, top
Norway, <-78310-83450-40S |
78310-83451-40S |
— | ||
|
1
|
1
78310-83303-40U
TOP ASSY,DECK
<-78310-83302-40U |
78310-83303-40U |
— | ||
|
1
|
1
78310-83451-40U
Deck assy, top
Norway, <-78310-83450-40U |
78310-83451-40U |
— | ||
|
1
|
1
78310-83460-45R
Deck assy, top
TYPE 3:Norway |
78310-83460-45R |
— | ||
|
1
|
1
78310-83470-40S
Deck assy, top
TYPE 3:Norway |
78310-83470-40S |
— | ||
|
1
|
1
78310-83470-40U
Deck assy, top
TYPE 3:Norway |
78310-83470-40U |
— | ||
|
2
|
2
79100-63850-000 HOOK SET |
79100-63850-000 |
US $4.45 |
||
| replacement | |||||
|
2
|
2
79100-63861-000 HOOK SET |
79100-63861-000 |
US $13.60 |
||
|
3
|
3
79133-63041-000 FEMALE,RR HOOK |
79133-63041-000 |
US $8.64 |
||
|
4
|
4
78491-80011-000
メール,トップデッキフック
<-78491-80010 |
78491-80011-000 |
— | ||
| replacement | |||||
|
4
|
4
78490-82CA2-000 MALE,TOP DECK FR HOOK<-78491-80010 |
78490-82CA2-000 |
US $1.52 |
||
|
5
|
5
79134-73002-000 HOOK,MALE TOP DECK<-79134-73001 |
79134-73002-000 |
US $1.52 |
||
|
6
|
6
09161-04011-000 WASHER(3.8X12X0.8) |
09161-04011-000 |
US $1.52 |
||
|
7
|
7
78510-80300-000
RAIL,ROOF SIDE FR
|
78510-80300-000 |
— | ||
|
8
|
8
78471-80300-000
FRAME,TOP BOW
6 PERSONS |
78471-80300-000 |
— | ||
|
9
|
9
78460-80330-000
Frame, top bow front
2 PERSONS |
78460-80330-000 |
— | ||
|
10
|
10
78463-80330-000
Frame, top bow front cross
2 PERSONS |
78463-80330-000 |
— | ||
|
11
|
11
78470-80330-000
Frame, top bow center
2 PERSONS |
78470-80330-000 |
— | ||
|
12
|
12
02142-06127-000 SCREW2 PERSONS |
02142-06127-000 |
from US $0.76 |
||
|
13
|
13
08313-11067-000 Nut2 PERSONS |
08313-11067-000 |
US $1.75 |
||
| replacement | |||||
|
13
|
13
08313-10067-000 NUT2 PERSONS |
08313-10067-000 |
from US $1.03 |
||
|
14
|
14
78482-80301-000
New Genuine Part
|
78482-80301-000 |
— | ||
| replacement | |||||
|
14
|
14
78483-80301-000
CUSHION,TOP BOW,UPPER
|
78483-80301-000 |
— | ||
|
15
|
15
78483-80301-000
CUSHION,TOP BOW,UPPER
|
78483-80301-000 |
— | ||
|
16
|
16
78476-80001-000
Appui
|
78476-80001-000 |
— | ||
| replacement | |||||
|
16
|
16
78476-80002-000
PAT,RR TOPBOW
|
78476-80002-000 |
— | ||
|
17
|
17
78411-80100-000
Rail, deck top side
|
78411-80100-000 |
— | ||
| replacement | |||||
|
17
|
17
78411-80101-000 RAIL,DECK TOP SIDE |
78411-80101-000 |
US $27.36 |
||
|
18
|
18
02142-06106-000
Screw
|
02142-06106-000 |
— | ||
| replacements | |||||
|
18
|
18
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
18
|
18
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
19
|
19
78484-80300-000
SHEET,CUSHION TOPBOW UPPER
|
78484-80300-000 |
— | ||
