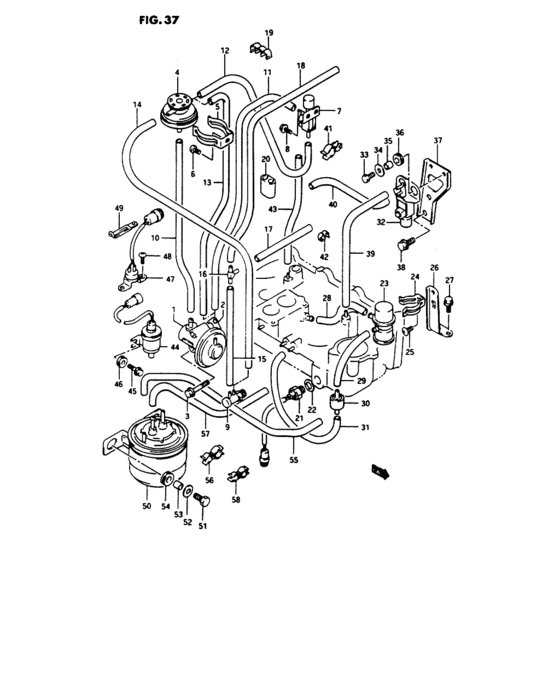

Emission control system (Sweden, Switzerland:W/CATALYZER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-83000-000
Valve, egr
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
18111-83000-000 |
— | ||
| replacement | |||||
|
1
|
1
18111-80C00-000 VALVE,EGR~JSA0SJ50000134843,~JSA0SJ50V00114772 |
18111-80C00-000 |
US $173.70 |
||
|
1
|
1
18111-82000-000
Valve,e.g.r
|
18111-82000-000 |
— | ||
| replacement | |||||
|
1
|
1
18111-8200V-000 VALVE,EGR |
18111-8200V-000 |
US $157.87 |
||
|
2
|
2
18529-78101-000
ガスケット,EGRバルブ
|
18529-78101-000 |
— | ||
| replacement | |||||
|
2
|
2
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
US $1.60 |
||
|
3
|
3
01537-06453-000
ボルト
|
01537-06453-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
4
|
4
18112-83010-000
MODULATOR ASSY,EGR
|
18112-83010-000 |
— | ||
|
5
|
5
18589-78101-000
Clamp, modulator
|
18589-78101-000 |
— | ||
|
6
|
6
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
6
|
6
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
7
|
7
18117-83000-000
VALVE ASSY,3WAY SOLENOID
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
18117-83000-000 |
— | ||
|
8
|
8
01517-06103-000
ボルト
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
01517-06103-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0610A-000 BOLT~JSA0SJ50000134843,~JSA0SJ50V00114772 |
01550-0610A-000 |
from US $0.80 |
||
|
8
|
8
01550-0610B-000 BoltBolt ~JSA0SJ50000134843,~JSA0SJ50V00114772 |
01550-0610B-000 |
from US $0.80 |
||
|
9
|
9
18550-73031-000
Valve, bvs
|
18550-73031-000 |
— | ||
| replacement | |||||
|
9
|
9
18122-80C01-000 VALVE,BVS |
18122-80C01-000 |
US $44.90 |
||
|
10
|
10
18471-83020-000
Hose, egr to modulator
|
18471-83020-000 |
— | ||
| replacements | |||||
|
10
|
10
09352-50111-600 HOSE(5X11X600)Hose, water air bleed (5x11x600) |
09352-50111-600 |
from US $15.81 |
||
|
10
|
10
09352-50111-300
Hose, modulator
|
09352-50111-300 |
— | ||
|
11
|
11
09343-03101-000
ホース,#21/3.5X7.5X240
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09343-03101-000 |
— | ||
| replacements | |||||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09355-35754-601 |
— | ||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601)~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09355-35006-601 |
from US $5.78 |
||
|
12
|
12
09343-03096-000
ホース,#8/3.5X7.5X170
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09343-03096-000 |
— | ||
| replacements | |||||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09355-35754-601 |
— | ||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09343-03102-000
ホース,#*/3.5X7.5X260
|
09343-03102-000 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
|
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601) |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09343-03114-000
ホース,#19/3.5X7.5X310
L:310 ~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09343-03114-000 |
— | ||
| replacements | |||||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:310 ~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09355-35754-601 |
— | ||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:310 ~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09343-03035-000
ホース,#12/3.5X7.5X370
L:370 |
09343-03035-000 |
— | ||
| replacements | |||||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:370 |
09355-35754-601 |
— | ||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:370 |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09343-03091-000
ホース,#17/3.5X7.5X115
L:115 |
09343-03091-000 |
— | ||
| replacements | |||||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:115 |
09355-35754-601 |
— | ||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:115 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
09367-04002-000 CONNECTOR |
09367-04002-000 |
US $4.80 |
||
|
17
|
17
09343-03087-000
ホース,#2/3.5X7.5X50
L:50 |
09343-03087-000 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:50 |
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:50 |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
09343-03103-000
ホース,#15/3.5X7.5X340
L:340 |
09343-03103-000 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
L:340 |
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601)L:340 |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
09408-00034-000
クリップ
|
09408-00034-000 |
— | ||
| replacement | |||||
|
19
|
19
09408-00035-000 CLIPClamp |
09408-00035-000 |
US $17.70 |
||
|
20
|
20
09329-07002-000
Cushion, vacuum hose
|
09329-07002-000 |
— | ||
|
21
|
21
18212-82001-000
SWITCH,THERMAL
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
18212-82001-000 |
— | ||
|
21
|
21
18212-83000-000
Switch, thermol
|
18212-83000-000 |
— | ||
| replacement | |||||
|
21
|
21
18212-82001-000
SWITCH,THERMAL
|
18212-82001-000 |
— | ||
|
22
|
22
09168-12007-000
ガスケット,12X21X2
|
09168-12007-000 |
— | ||
| replacements | |||||
|
22
|
22
09168-12016-000 GASKET(12.2X21X0.8) |
09168-12016-000 |
from US $1.12 |
||
|
22
|
22
09168-12018-000 GASKET(12X21X2) |
09168-12018-000 |
from US $1.60 |
||
|
23
|
23
18119-80400-000 VALVE ASSY,MIXTURE CONTROL |
18119-80400-000 |
US $133.60 |
||
|
24
|
24
18438-80400-000
Clamp, mcv
|
18438-80400-000 |
— | ||
| replacement | |||||
|
24
|
24
18595-82150-000
CLAMP,VACUUM SW
|
18595-82150-000 |
— | ||
|
25
|
25
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
25
|
25
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
25
|
25
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
26
|
26
18419-83000-000
Bracket, mcv
|
18419-83000-000 |
— | ||
| replacement | |||||
|
26
|
26
18419-8300V-000
BRACKET,MCV
|
18419-8300V-000 |
— | ||
|
27
|
27
01517-06163-000
Bolt
|
01517-06163-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0616B-000 BOLT |
01550-0616B-000 |
from US $0.76 |
||
|
27
|
27
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
28
|
28
18473-83020-000
Hose, mcv to intake
|
18473-83020-000 |
— | ||
| replacements | |||||
|
28
|
28
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum |
09355-54115-600 |
from US $7.20 |
||
|
28
|
28
09354-54115-300
ホース,5.4X11.4X300
|
09354-54115-300 |
— | ||
|
29
|
29
09343-03020-000
ホース,#10/3.5X7.5X30
L:30 |
09343-03020-000 |
— | ||
| replacements | |||||
|
29
|
29
09355-35754-601
HOSE(3.5X7.5X601)
L:30 |
09355-35754-601 |
— | ||
|
29
|
29
09355-35006-601 Hose(3.5X7.5X601)L:30 |
09355-35006-601 |
from US $5.78 |
||
|
30
|
30
18115-83000-000
Jet(800cc)
|
18115-83000-000 |
— | ||
|
31
|
31
09343-03091-000
ホース,#17/3.5X7.5X115
L:115 |
09343-03091-000 |
— | ||
| replacements | |||||
|
31
|
31
09355-35754-601
HOSE(3.5X7.5X601)
L:115 |
09355-35754-601 |
— | ||
|
31
|
31
09355-35006-601 Hose(3.5X7.5X601)L:115 |
09355-35006-601 |
from US $5.78 |
||
|
32
|
32
18550-82021-000
VALVE ASSY,3WAY SOLENOID
|
18550-82021-000 |
— | ||
|
33
|
33
01107-06163-000 Bolt m6x1x16 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
33
|
33
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
34
|
34
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
35
|
35
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
36
|
36
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
37
|
37
18417-83000-000
Bracket, vsv
|
18417-83000-000 |
— | ||
| replacement | |||||
|
37
|
37
18417-61A00-000 BRACKET,VSV |
18417-61A00-000 |
US $6.66 |
||
|
38
|
38
01534-10163-000
New Genuine Part
|
01534-10163-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
38
|
38
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
39
|
39
09343-03097-000
ホース,#26/3.5X7.5X180
L:180 |
09343-03097-000 |
— | ||
| replacements | |||||
|
39
|
39
09355-35754-601
HOSE(3.5X7.5X601)
L:180 |
09355-35754-601 |
— | ||
|
39
|
39
09355-35006-601 Hose(3.5X7.5X601)L:180 |
09355-35006-601 |
from US $5.78 |
||
|
40
|
40
09343-03035-000
ホース,#12/3.5X7.5X370
L:370 |
09343-03035-000 |
— | ||
| replacements | |||||
|
40
|
40
09355-35754-601
HOSE(3.5X7.5X601)
L:370 |
09355-35754-601 |
— | ||
|
40
|
40
09355-35006-601 Hose(3.5X7.5X601)L:370 |
09355-35006-601 |
from US $5.78 |
||
|
41
|
41
09408-00060-000 CLAMP |
09408-00060-000 |
US $13.20 |
||
|
42
|
42
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
43
|
43
09343-03093-000
ホース,#4/3.5X7.5X130
L:130 |
09343-03093-000 |
— | ||
| replacements | |||||
|
43
|
43
09355-35754-601
HOSE(3.5X7.5X601)
L:130 |
09355-35754-601 |
— | ||
|
43
|
43
09355-35006-601 Hose(3.5X7.5X601)L:130 |
09355-35006-601 |
from US $5.78 |
||
|
44
|
44
18610-83000-000
Compensator, high altitude
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
18610-83000-000 |
— | ||
|
45
|
45
01517-06163-000
Bolt
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
01517-06163-000 |
— | ||
| replacements | |||||
|
45
|
45
01550-0616B-000 BOLT~JSA0SJ50000134843,~JSA0SJ50V00114772 |
01550-0616B-000 |
from US $0.76 |
||
|
45
|
45
01550-0616A-000 BOLT~JSA0SJ50000134843,~JSA0SJ50V00114772 |
01550-0616A-000 |
from US $0.76 |
||
|
46
|
46
09320-06013-000
Cushion
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09320-06013-000 |
— | ||
|
47
|
47
18620-83000-000
Switch, thermal engine room
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
18620-83000-000 |
— | ||
|
48
|
48
02142-05103-000
Screw 5x10
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
02142-05103-000 |
— | ||
| replacement | |||||
|
48
|
48
02142-0510B-000 SCREWBolt ~JSA0SJ50000134843,~JSA0SJ50V00114772 |
02142-0510B-000 |
from US $0.76 |
||
|
49
|
49
09404-05401-000
Clamp
~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09404-05401-000 |
— | ||
| replacement | |||||
|
49
|
49
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire ~JSA0SJ50000134843,~JSA0SJ50V00114772 |
09404-06429-000 |
from US $1.52 |
||
|
50
|
50
18560-83000-000
Canister
|
18560-83000-000 |
— | ||
| replacement | |||||
|
50
|
50
18560-83001-000
Canister assy
|
18560-83001-000 |
— | ||
|
51
|
51
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
51
|
51
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
51
|
51
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
52
|
52
09160-08075-000
ワッシャ,8.2X26X1.6
|
09160-08075-000 |
— | ||
| replacement | |||||
|
52
|
52
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) |
09160-08151-000 |
from US $0.91 |
||
|
53
|
53
09180-08092-000
New Genuine Part
|
09180-08092-000 |
— | ||
|
54
|
54
09320-12011-000
CUSHION
|
09320-12011-000 |
— | ||
| replacement | |||||
|
54
|
54
09320-12090-000 Cushion(11.8X25X7.5) |
09320-12090-000 |
from US $1.67 |
||
|
55
|
55
18474-83000-000
Hose, carburetor purge
|
18474-83000-000 |
— | ||
|
56
|
56
09408-00081-000
Clamp
|
09408-00081-000 |
— | ||
| replacement | |||||
|
56
|
56
09408-00080-000 CLAMP |
09408-00080-000 |
US $21.30 |
||
|
57
|
57
09343-03081-000
Hose, canister purge air
L:1150->370 |
09343-03081-000 |
— | ||
| replacements | |||||
|
57
|
57
09355-35755-00B
HOSE(3.5X7.5X2000)
L:1150->370 |
09355-35755-00B |
— | ||
|
57
|
57
09355-35007-00B Hose(3.5X7.5X2000)L:1150->370 |
09355-35007-00B |
from US $26.42 |
||
|
58
|
58
09408-00056-000 CLIP |
09408-00056-000 |
from US $4.22 |
||
