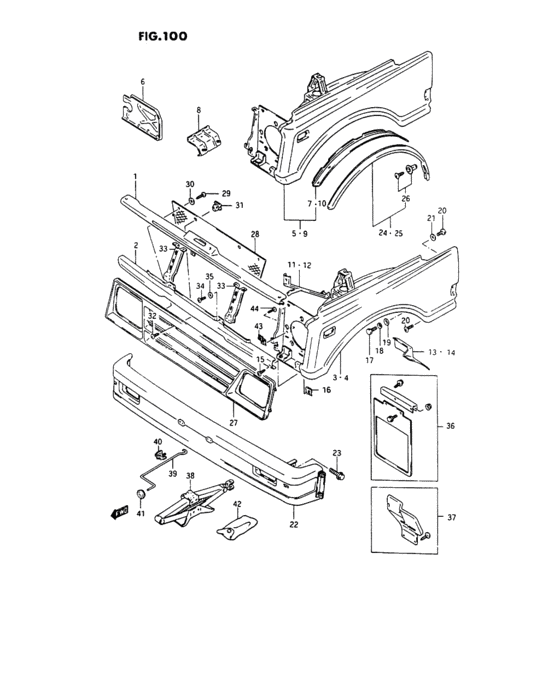

Front body (Ecuador) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58100-83001-000
Panel, front
|
58100-83001-000 |
— | ||
| replacements | |||||
|
1
|
1
58100-83004-000
MEMBER,FR UPR
|
58100-83004-000 |
— | ||
|
1
|
1
09403-08313-000 CLAMP |
09403-08313-000 |
US $1.76 |
||
|
1
|
1
58100-83003-000
Panel, front
SJ50-102146~ SJ51-100387~,SJ51T-100507~ JSA0SJ50000104319~,JSA0SJ51000100410~,JSA0SJ50V00102010~,JSA0SJ51T00100112~ |
58100-83003-000 |
— | ||
| replacement | |||||
|
1
|
1
58100-83004-000
MEMBER,FR UPR
SJ50-102146~ SJ51-100387~,SJ51T-100507~ JSA0SJ50000104319~,JSA0SJ51000100410~,JSA0SJ50V00102010~,JSA0SJ51T00100112~ |
58100-83004-000 |
— | ||
|
1
|
1
58100-83010-000
Panel, front
TYPE 2 |
58100-83010-000 |
— | ||
|
2
|
2
58200-83000-000
Member, front lower
|
58200-83000-000 |
— | ||
| replacement | |||||
|
2
|
2
58200-83002-000 MEMBER,FR LWR |
58200-83002-000 |
US $50.92 |
||
|
3
|
3
58600-83070-000
Panel, fender rh
|
58600-83070-000 |
— | ||
|
4
|
4
58800-83070-000
Panel, fender lh
|
58800-83070-000 |
— | ||
|
5
|
5
58600-83080-000
Panel, fender rh
W/OVER FENDER |
58600-83080-000 |
— | ||
| replacement | |||||
|
5
|
5
58622-80002-000
HOLDER,FR FENDER EXT,R
W/OVER FENDER |
58622-80002-000 |
— | ||
|
6
|
6
58763-83001-000 BAFFLE,FR FENDER |
58763-83001-000 |
US $9.44 |
||
|
7
|
7
58622-80002-000
HOLDER,FR FENDER EXT,R
W/OVER FENDER |
58622-80002-000 |
— | ||
|
8
|
8
58726-83000-000
Bracket, air cleaner lower
->58726-83001 USED WITH,08310-11063(2PCS) AND,09160-06077(2PCS) |
58726-83000-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0006B-000 NUTNut gear shift link rod ->58726-83001 USED WITH,08310-11063(2PCS) AND,09160-06077(2PCS) |
08310-0006B-000 |
from US $0.76 |
||
|
8
|
8
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) ->58726-83001 USED WITH,08310-11063(2PCS) AND,09160-06077(2PCS) |
09160-06077-000 |
from US $0.96 |
||
|
8
|
8
58726-83001-000 BRACKET,AIR CLNR LOWER->58726-83001 USED WITH,08310-11063(2PCS) AND,09160-06077(2PCS) |
58726-83001-000 |
US $6.92 |
||
|
8
|
8
08310-0006A-000 NUT->58726-83001 USED WITH,08310-11063(2PCS) AND,09160-06077(2PCS) |
08310-0006A-000 |
from US $0.76 |
||
|
8
|
8
08310-11063-000 Nut m6x1x5->58726-83001 USED WITH,08310-11063(2PCS) AND,09160-06077(2PCS) |
08310-11063-000 |
US $1.07 |
||
|
8
|
8
58726-83001-000 BRACKET,AIR CLNR LOWERSJ50-104673~ SJ51-100688~,SJ51T-100769~ JSA0SJ50000108803~,JSA0SJ51000101053~,JSA0SJ50V00103865~,JSA0SJ51T00100127~ |
58726-83001-000 |
US $6.92 |
||
|
9
|
9
58800-83080-000
Panel, fender lh
W/OVER FENDER |
58800-83080-000 |
— | ||
| replacement | |||||
|
9
|
9
58822-80002-000
HOLDER,FR FENDER EXT,L
W/OVER FENDER |
58822-80002-000 |
— | ||
|
10
|
10
58822-80002-000
HOLDER,FR FENDER EXT,L
W/OVER FENDER |
58822-80002-000 |
— | ||
|
11
|
11
58723-83001-000 MEMBER,HEADLAMP HSG,R |
58723-83001-000 |
US $7.43 |
||
|
12
|
12
58923-83001-000 MEMBER,HEADLAMP HSG,L |
58923-83001-000 |
US $6.92 |
||
|
13
|
13
58771-80001-000 LINER,FR FENDER,R |
58771-80001-000 |
US $11.36 |
||
|
14
|
14
58971-80001-000 LINER,FR FENDER,L |
58971-80001-000 |
US $11.36 |
||
|
15
|
15
09125-06075-000
Screw,cowl front
|
09125-06075-000 |
— | ||
| replacement | |||||
|
15
|
15
09125-06029-000 SCREW(6X18)Screw (6x18) |
09125-06029-000 |
from US $1.76 |
||
|
16
|
16
09148-06003-000
ナット
|
09148-06003-000 |
— | ||
| replacement | |||||
|
16
|
16
09148-06013-000 NUT |
09148-06013-000 |
US $1.52 |
||
|
17
|
17
01107-06127-000 Bolt |
01107-06127-000 |
US $2.71 |
||
| replacement | |||||
|
17
|
17
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
18
|
18
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
18
|
18
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
19
|
19
09160-06019-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06019-000 |
from US $0.76 |
||
|
20
|
20
09125-06036-000 SCREW(6X15) |
09125-06036-000 |
US $1.60 |
||
|
21
|
21
09160-06003-000 WasherWasher (6.7x16x0.8) |
09160-06003-000 |
US $1.82 |
||
| replacement | |||||
|
21
|
21
09160-06129-000 WASHER(6.5X16X1) |
09160-06129-000 |
from US $0.96 |
||
|
22
|
22
71710-83001-162
Bar, front bumper
|
71710-83001-162 |
— | ||
| replacement | |||||
|
22
|
22
71710-83001-000 BAR,FR BUMPER |
71710-83001-000 |
US $281.52 |
||
|
23
|
23
01514-08123-000
Bolt
|
01514-08123-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0812A-000 BOLT |
01550-0812A-000 |
from US $0.91 |
||
|
23
|
23
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
24
|
24
77110-80810-281 EXTENSION,FR FENDER,RW/OVER FENDER |
77110-80810-281 |
US $60.72 |
||
|
25
|
25
77120-80810-281 EXTENSION,FR FENDER,LW/OVER FENDER |
77120-80810-281 |
US $60.72 |
||
|
26
|
26
09409-07306-000 CLIPClip W/OVER FENDER |
09409-07306-000 |
from US $1.76 |
||
|
27
|
27
72111-83020-21L
Grille, front
TYPE 1,TYPE 2 |
72111-83020-21L |
— | ||
| replacement | |||||
|
27
|
27
72111-83020-000 GRILLE,FRTYPE 1,TYPE 2 |
72111-83020-000 |
US $133.95 |
||
|
27
|
27
72111-83020-09H
Grille, front
TYPE 1,TYPE 2 |
72111-83020-09H |
— | ||
| replacement | |||||
|
27
|
27
72111-83020-000 GRILLE,FRTYPE 1,TYPE 2 |
72111-83020-000 |
US $133.95 |
||
|
27
|
27
72111-83020-07B
Grille, front
TYPE 1,TYPE 2 |
72111-83020-07B |
— | ||
| replacement | |||||
|
27
|
27
72111-83020-000 GRILLE,FRTYPE 1,TYPE 2 |
72111-83020-000 |
US $133.95 |
||
|
27
|
27
72111-83020-09R
Grille, front
TYPE 1,TYPE 2 |
72111-83020-09R |
— | ||
| replacement | |||||
|
27
|
27
72111-83020-000 GRILLE,FRTYPE 1,TYPE 2 |
72111-83020-000 |
US $133.95 |
||
|
27
|
27
72111-83020-18J
Grille, front
TYPE 1,TYPE 2 |
72111-83020-18J |
— | ||
| replacement | |||||
|
27
|
27
72111-83020-000 GRILLE,FRTYPE 1,TYPE 2 |
72111-83020-000 |
US $133.95 |
||
|
27
|
27
72111-83020-20V
Grille, front
TYPE 1,TYPE 2 |
72111-83020-20V |
— | ||
| replacement | |||||
|
27
|
27
72111-83020-000 GRILLE,FRTYPE 1,TYPE 2 |
72111-83020-000 |
US $133.95 |
||
|
27
|
27
72111-83020-17A
Grille, front
TYPE 2 |
72111-83020-17A |
— | ||
| replacement | |||||
|
27
|
27
72111-83020-000 GRILLE,FRTYPE 2 |
72111-83020-000 |
US $133.95 |
||
|
28
|
28
72115-83020-000
NET,FR GRILLE
|
72115-83020-000 |
— | ||
|
29
|
29
03241-05163-000
Screw, bracket
|
03241-05163-000 |
— | ||
| replacement | |||||
|
29
|
29
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
30
|
30
09160-05037-000 WASHER(5.5X16X1.2) |
09160-05037-000 |
from US $0.91 |
||
|
31
|
31
09148-05018-000 NUT |
09148-05018-000 |
US $0.91 |
||
|
32
|
32
03242-05165-000
Screw
|
03242-05165-000 |
— | ||
| replacement | |||||
|
32
|
32
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
33
|
33
72410-83020-000
Member comp,front panel
|
72410-83020-000 |
— | ||
|
34
|
34
02112-06125-000
Screw 6x12
|
02112-06125-000 |
— | ||
| replacements | |||||
|
34
|
34
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
34
|
34
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
35
|
35
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
35
|
35
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
36
|
36
72210-80090-000
FLAP SET,FR MUD
OPT |
72210-80090-000 |
— | ||
|
37
|
37
72200-80810-000
カバーセット,マッド/スノー
OPT |
72200-80810-000 |
— | ||
|
38
|
38
09824-00041-000
Jack assy
|
09824-00041-000 |
— | ||
| replacement | |||||
|
38
|
38
89910-70A30-000
Jack assy
|
89910-70A30-000 |
— | ||
|
39
|
39
09824-00031-000
ハンドル,ジャッキ
|
09824-00031-000 |
— | ||
| replacement | |||||
|
39
|
39
09824-00017-000 HANDLE,JACK |
09824-00017-000 |
US $7.20 |
||
|
40
|
40
09403-09309-000 CLAMPClamp, switch housing |
09403-09309-000 |
US $2.56 |
||
|
41
|
41
09308-14006-000 GROMMET |
09308-14006-000 |
from US $2.88 |
||
|
42
|
42
09800-53800-000
Tool assy
|
09800-53800-000 |
— | ||
| replacement | |||||
|
42
|
42
09800-40024-000 TOOL ASSYSpanner, wheel wrench, pliers, screwdriver, jack handle; |
09800-40024-000 |
US $135.20 |
||
|
43
|
43
58744-83001-000
Bracket, head lamp
|
58744-83001-000 |
— | ||
|
44
|
44
02142-05123-000
Screw 5x12
|
02142-05123-000 |
— | ||
| replacement | |||||
|
44
|
44
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
