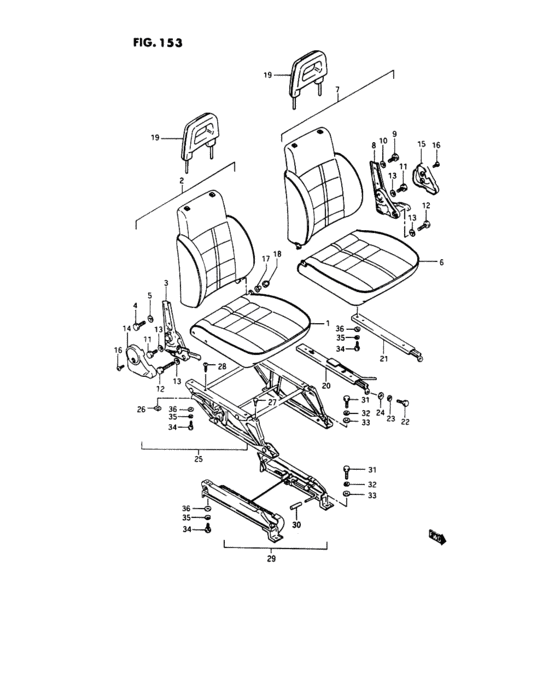

Front seat (O, Q, W, V:JX) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-83000-7GT
Cushion assy, front rh
TYPE 1 |
85101-83000-7GT |
— | ||
| replacement | |||||
|
1
|
1
85101-83000-7LW
Cushion assy, front rh
TYPE 1 |
85101-83000-7LW |
— | ||
|
1
|
1
85101-83000-8FD
Cushion assy, front rh
TYPE 2 |
85101-83000-8FD |
— | ||
|
1
|
1
85101-83000-9DB
Cushion assy, front rh
TYPE 3 |
85101-83000-9DB |
— | ||
|
1
|
1
85101-83100-7HU
Cushion assy, front rh
TYPE 1 |
85101-83100-7HU |
— | ||
|
1
|
1
85101-83100-8FH
Cushion assy, front rh
TYPE 2 |
85101-83100-8FH |
— | ||
|
1
|
1
85101-83100-9CZ
Cushion assy, front rh
TYPE 3 |
85101-83100-9CZ |
— | ||
|
1
|
1
85101-83100-7LT
Cushion assy, front rh
TYPE 1:Indonesia |
85101-83100-7LT |
— | ||
|
2
|
2
85301-83000-7GT
Back assy, front rh
TYPE 1 |
85301-83000-7GT |
— | ||
| replacement | |||||
|
2
|
2
85301-83000-7LW
Back assy, front rh
TYPE 1 |
85301-83000-7LW |
— | ||
|
2
|
2
85301-83171-8FD
Back assy, front rh
TYPE 2:LHD <-85301-83170-8FD |
85301-83171-8FD |
— | ||
| replacement | |||||
|
2
|
2
85380-83X00-8FD
New Genuine Part
TYPE 2:LHD <-85301-83170-8FD |
85380-83X00-8FD |
— | ||
|
2
|
2
85301-83171-9DB
Back assy, front rh
TYPE 3:LHD |
85301-83171-9DB |
— | ||
| replacement | |||||
|
2
|
2
85380-83X00-9DB
New Genuine Part
TYPE 3:LHD |
85380-83X00-9DB |
— | ||
|
2
|
2
85301-83220-8FD
Back assy, front rh
TYPE 2:RHD |
85301-83220-8FD |
— | ||
|
2
|
2
85301-83220-9DB
Back assy, front rh
TYPE 3:RHD |
85301-83220-9DB |
— | ||
|
2
|
2
85301-83100-7HU
Back assy, front rh
TYPE 1 |
85301-83100-7HU |
— | ||
|
2
|
2
85301-83201-8FH
Back assy, front rh
TYPE 2 <-85301-83200-8FH |
85301-83201-8FH |
— | ||
|
2
|
2
85301-83201-9CZ
Back assy, front rh
TYPE 3:LHD |
85301-83201-9CZ |
— | ||
| replacement | |||||
|
2
|
2
85380-83X01-9CZ
New Genuine Part
TYPE 3:LHD |
85380-83X01-9CZ |
— | ||
|
2
|
2
85301-83300-9CZ
Back assy, front rh
TYPE 3:RHD |
85301-83300-9CZ |
— | ||
|
2
|
2
85301-83100-7LT
Back assy, front rh
TYPE 1:Indonesia |
85301-83100-7LT |
— | ||
|
3
|
3
85210-80302-000
Reclining assy, rh
TYPE 1 |
85210-80302-000 |
— | ||
|
3
|
3
85210-83001-000
Reclinateur cd
TYPE 2,TYPE 3:LHD |
85210-83001-000 |
— | ||
| replacement | |||||
|
3
|
3
85210-83001-5PK
Reclining assy,fr seat,r
TYPE 2,TYPE 3:LHD |
85210-83001-5PK |
— | ||
|
3
|
3
85210-80290-000
Reclining assy, rh
TYPE 2,TYPE 3:RHD |
85210-80290-000 |
— | ||
| replacement | |||||
|
3
|
3
85210-80290-5PK RECLINING,FR SEAT,RTYPE 2,TYPE 3:RHD |
85210-80290-5PK |
US $144.62 |
||
|
4
|
4
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
5
|
5
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
5
|
5
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
6
|
6
85102-83000-7GT
Cushion assy, front lh
TYPE 1 |
85102-83000-7GT |
— | ||
| replacement | |||||
|
6
|
6
85680-83000-7LW
New Genuine Part
TYPE 1 |
85680-83000-7LW |
— | ||
|
6
|
6
85102-83000-8FD
Cushion assy, front lh
TYPE 2 |
85102-83000-8FD |
— | ||
| replacement | |||||
|
6
|
6
85680-83001-8FD
New Genuine Part
TYPE 2 |
85680-83001-8FD |
— | ||
|
6
|
6
85102-83000-9DB
Cushion assy, front lh
TYPE 3 |
85102-83000-9DB |
— | ||
| replacement | |||||
|
6
|
6
85680-83001-9DB
New Genuine Part
TYPE 3 |
85680-83001-9DB |
— | ||
|
6
|
6
85102-83100-7HU
Cushion assy, front lh
TYPE 1 |
85102-83100-7HU |
— | ||
|
6
|
6
85102-83100-8FH
Cushion assy, front lh
TYPE 2 |
85102-83100-8FH |
— | ||
|
6
|
6
85102-83100-9CZ
Cushion assy, front lh
TYPE 3 |
85102-83100-9CZ |
— | ||
| replacement | |||||
|
6
|
6
85680-83101-9CZ
New Genuine Part
TYPE 3 |
85680-83101-9CZ |
— | ||
|
6
|
6
85102-83100-7LT
Cushion assy, front lh
TYPE 1:Indonesia |
85102-83100-7LT |
— | ||
|
7
|
7
85302-83000-7GT
Back assy, front lh
TYPE 1 |
85302-83000-7GT |
— | ||
| replacement | |||||
|
7
|
7
85302-83000-7LW
Back assy, front lh
TYPE 1 |
85302-83000-7LW |
— | ||
|
7
|
7
85302-83220-8FD
Back assy, front lh
TYPE 2:LHD |
85302-83220-8FD |
— | ||
| replacement | |||||
|
7
|
7
85380-83X00-8FD
New Genuine Part
TYPE 2:LHD |
85380-83X00-8FD |
— | ||
|
7
|
7
85302-83220-9DB
Back assy, front lh
TYPE 3:LHD |
85302-83220-9DB |
— | ||
| replacement | |||||
|
7
|
7
85380-83X00-9DB
New Genuine Part
TYPE 3:LHD |
85380-83X00-9DB |
— | ||
|
7
|
7
85302-83171-8FD
Back assy, front lh
TYPE 2:RHD |
85302-83171-8FD |
— | ||
|
7
|
7
85302-83171-9DB
Back assy, front lh
TYPE 3:RHD |
85302-83171-9DB |
— | ||
|
7
|
7
85302-83100-7HU
Back assy, front lh
TYPE 1 |
85302-83100-7HU |
— | ||
|
7
|
7
85302-83300-8FH
Back assy, front lh
TYPE 2 |
85302-83300-8FH |
— | ||
|
7
|
7
85302-83300-9CZ
Back assy, front lh
TYPE 3:LHD |
85302-83300-9CZ |
— | ||
| replacement | |||||
|
7
|
7
85380-83X01-9CZ
New Genuine Part
TYPE 3:LHD |
85380-83X01-9CZ |
— | ||
|
7
|
7
85302-83201-9CZ
Gack assy, front lh
TYPE 3:RHD |
85302-83201-9CZ |
— | ||
|
7
|
7
85302-83100-7LT
Back assy, front lh
TYPE 1:Indonesia |
85302-83100-7LT |
— | ||
|
8
|
8
85710-80302-000
Reclining assy, lh
TYPE 1 |
85710-80302-000 |
— | ||
|
8
|
8
85710-80290-000
Reclinateur cg
TYPE 2,TYPE 3:LHD |
85710-80290-000 |
— | ||
| replacement | |||||
|
8
|
8
85710-80290-5PK
RECLINING,FR SEAT,L
TYPE 2,TYPE 3:LHD |
85710-80290-5PK |
— | ||
|
8
|
8
85710-83001-000
Reclining assy, lh
TYPE 2,TYPE 3:RHD |
85710-83001-000 |
— | ||
| replacement | |||||
|
8
|
8
85710-83001-5PK
RECLINING,FR SEAT,L
TYPE 2,TYPE 3:RHD |
85710-83001-5PK |
— | ||
|
9
|
9
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
10
|
10
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
10
|
10
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
11
|
11
01107-10166-000
New Genuine Part
|
01107-10166-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-1016B-000 BoltPlug, oil drain |
01500-1016B-000 |
US $17.30 |
||
|
12
|
12
01107-10406-000
Bolt
|
01107-10406-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-1040A-000 Bolt |
01500-1040A-000 |
from US $2.40 |
||
|
13
|
13
08321-21106-000
Lock washer
|
08321-21106-000 |
— | ||
| replacements | |||||
|
13
|
13
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
13
|
13
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
14
|
14
85221-80291-281
Cover,reclining,r
TYPE 1 |
85221-80291-281 |
— | ||
|
14
|
14
85221-82001-281
Cover, reclining, rh
TYPE 2,TYPE 3 |
85221-82001-281 |
— | ||
| replacement | |||||
|
14
|
14
85221-82001-5PK COVER,RECLINING,RTYPE 2,TYPE 3 |
85221-82001-5PK |
US $8.02 |
||
|
15
|
15
85721-80291-281
Cover, reclining lh
TYPE 1 |
85721-80291-281 |
— | ||
|
15
|
15
85721-82001-281
Cover, reclining, lh
TYPE 2,TYPE 3 |
85721-82001-281 |
— | ||
| replacement | |||||
|
15
|
15
85721-82001-5PK COVER,RECLINING,LTYPE 2,TYPE 3 |
85721-82001-5PK |
US $8.02 |
||
|
16
|
16
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
17
|
17
85291-80290-000 BUSH,SEAT BACK FIXING |
85291-80290-000 |
US $2.56 |
||
|
18
|
18
08313-21085-000
Nut
|
08313-21085-000 |
— | ||
| replacements | |||||
|
18
|
18
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
18
|
18
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
19
|
19
86401-83000-59J
Head rest assy
TYPE 1 |
86401-83000-59J |
— | ||
| replacement | |||||
|
19
|
19
86401-83000-4CD
ヘッドレストレイントアッシ(グレー)
TYPE 1 |
86401-83000-4CD |
— | ||
|
19
|
19
86401-83000-4CD
ヘッドレストレイントアッシ(グレー)
TYPE 2,TYPE 3 |
86401-83000-4CD |
— | ||
|
20
|
20
86601-80134-000 RAIL ASSY,FR SEAT SLIDER,R<-86601-80133 |
86601-80134-000 |
US $65.87 |
||
|
21
|
21
86602-80133-000 RAIL ASSY,FR SEAT SLIDE,L |
86602-80133-000 |
US $50.78 |
||
|
22
|
22
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
23
|
23
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
23
|
23
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
24
|
24
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
24
|
24
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
25
|
25
86701-80300-000
Wak in assy
TYPE 1 |
86701-80300-000 |
— | ||
|
25
|
25
86701-80103-000
Wak in assy
TYPE 1:, Finland, Norway, Sweden, Switzerland, Belgium,2, 5, Israel |
86701-80103-000 |
— | ||
|
26
|
26
86728-80100-000
Stopper, rear leg
TYPE 1 |
86728-80100-000 |
— | ||
|
27
|
27
09321-06008-000 CUSHIONCap, fuel tank upper rear TYPE 1 |
09321-06008-000 |
from US $1.22 |
||
|
28
|
28
03241-05108-000
New Genuine Part
TYPE 1 |
03241-05108-000 |
— | ||
| replacements | |||||
|
28
|
28
03241-0510A-000 SCREWTYPE 1 |
03241-0510A-000 |
from US $0.80 |
||
|
28
|
28
03242-0510B-000 SCREWTYPE 1 |
03242-0510B-000 |
US $0.76 |
||
|
29
|
29
86701-83001-000
Wak in assy, rh
TYPE 2 <-86701-83000 |
86701-83001-000 |
— | ||
| replacement | |||||
|
29
|
29
86701-83002-000
WALKIN ASSY,FR SEAT,R
TYPE 2 <-86701-83000 |
86701-83002-000 |
— | ||
|
29
|
29
86701-83030-000
Wak in assy, rh
TYPE 3 |
86701-83030-000 |
— | ||
| replacement | |||||
|
29
|
29
86701-83031-000
WALKIN ASSY,FR SEAT,R
TYPE 3 |
86701-83031-000 |
— | ||
|
30
|
30
86736-83000-000 KNOB,LOCK HANDLE |
86736-83000-000 |
US $1.60 |
||
|
31
|
31
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
31
|
31
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
32
|
32
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
32
|
32
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
33
|
33
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
33
|
33
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
34
|
34
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
34
|
34
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
35
|
35
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
35
|
35
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
35
|
35
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
36
|
36
08322-11086-000
Washer
|
08322-11086-000 |
— | ||
| replacements | |||||
|
36
|
36
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
36
|
36
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
