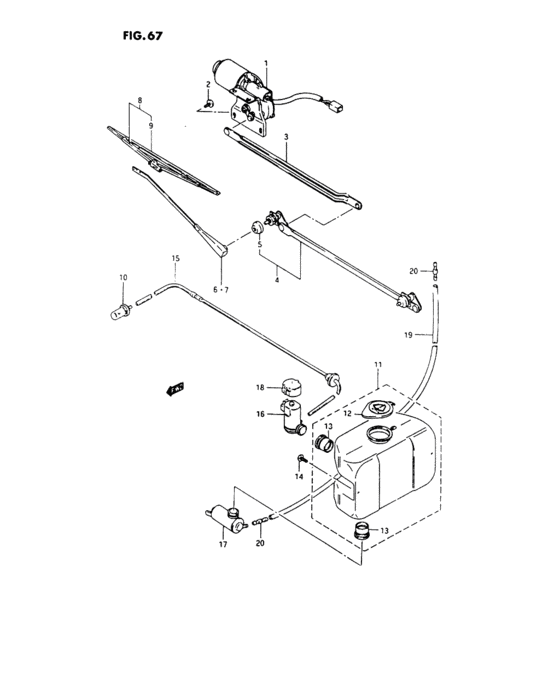

Front wiper and washer (W:W/REAR WIPER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-80020-000
Moteur
LHD |
38101-80020-000 |
— | ||
| replacement | |||||
|
1
|
1
38101-80031-000 MOTOR ASSY,WIPERLHD |
38101-80031-000 |
US $284.80 |
||
|
1
|
1
38101-80000-000
Motor assy, wirer
RHD |
38101-80000-000 |
— | ||
| replacement | |||||
|
1
|
1
38101-70A00-000 MOTOR ASSY,WIPERRHD |
38101-70A00-000 |
US $364.32 |
||
|
2
|
2
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
3
|
3
38255-80000-000 ROD,WIPER LINK |
38255-80000-000 |
US $28 |
||
|
4
|
4
38102-80001-000
リンクアッシ,ワイパ
|
38102-80001-000 |
— | ||
| replacements | |||||
|
4
|
4
38102-80020-000 LINK ASSY,WIPER |
38102-80020-000 |
US $89.60 |
||
|
4
|
4
38271-82C00-000 WASHER,WIPER PIVOT |
38271-82C00-000 |
US $2.56 |
||
|
4
|
4
38272-82C00-000 PACKING,WIPER PIVOT |
38272-82C00-000 |
US $2.24 |
||
|
4
|
4
38274-78000-000 CAP |
38274-78000-000 |
US $1.76 |
||
|
4
|
4
38278-67011-000 NUT |
38278-67011-000 |
US $1.60 |
||
|
5
|
5
38274-78000-000 CAP |
38274-78000-000 |
US $1.76 |
||
|
6
|
6
38330-80010-000
Arm assy, wiper rh
LHD |
38330-80010-000 |
— | ||
| replacement | |||||
|
6
|
6
38310-80010-000
ARM ASSY,WIPER
LHD |
38310-80010-000 |
— | ||
|
6
|
6
38310-80000-000 ARM ASSY,WIPERRHD |
38310-80000-000 |
US $43.79 |
||
|
6
|
6
38310-80020-000
Arm,window wiper
, |
38310-80020-000 |
— | ||
|
6
|
6
38330-80030-000
Bras droit
Finland, Sweden, Germany, Holland |
38330-80030-000 |
— | ||
| replacement | |||||
|
6
|
6
38310-80030-000
ARM ASSY,WIPER
Finland, Sweden, Germany, Holland |
38310-80030-000 |
— | ||
|
7
|
7
38310-80010-000
ARM ASSY,WIPER
LHD |
38310-80010-000 |
— | ||
|
7
|
7
38330-80000-000
アームアッシ,ワイパ,レフト
RHD |
38330-80000-000 |
— | ||
| replacement | |||||
|
7
|
7
38310-80000-000 ARM ASSY,WIPERRHD |
38310-80000-000 |
US $43.79 |
||
|
7
|
7
38330-80020-000
Arm,window wiper rh
, |
38330-80020-000 |
— | ||
|
7
|
7
38310-80030-000
ARM ASSY,WIPER
Finland, Sweden, Germany, Holland |
38310-80030-000 |
— | ||
|
8
|
8
38340-67701-000
ブレードアッシ,ワイパ
|
38340-67701-000 |
— | ||
| replacement | |||||
|
8
|
8
38340-70A00-000 BLADE ASSY,WIPER |
38340-70A00-000 |
US $20 |
||
|
8
|
8
38340-63641-000
Balai
, , Finland, Sweden, 2, 5 |
38340-63641-000 |
— | ||
| replacement | |||||
|
8
|
8
38340-70A10-000
BLADE ASSY,WIPER
, , Finland, Sweden, 2, 5 |
38340-70A10-000 |
— | ||
|
9
|
9
38346-67700-000 BLADE |
38346-67700-000 |
US $7.69 |
||
|
9
|
9
38346-80020-000
BLADE
, , Finland, Sweden, 2, 5 |
38346-80020-000 |
— | ||
|
10
|
10
38480-80000-000 NOZZLE ASSY,FR WASHER |
38480-80000-000 |
US $24.32 |
||
|
11
|
11
38450-83000-000 TANK ASSY,WASHER |
38450-83000-000 |
US $38.27 |
||
|
12
|
12
38452-80000-000
キャップ,ウォッシャタンク
|
38452-80000-000 |
— | ||
| replacement | |||||
|
12
|
12
38452-65D00-000 CAP,WASHER TANK |
38452-65D00-000 |
US $1.92 |
||
|
13
|
13
38453-75000-000 GROMMET |
38453-75000-000 |
US $1.60 |
||
|
14
|
14
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
14
|
14
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
14
|
14
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
15
|
15
38490-80010-000 HOSE ASSY,WASHER |
38490-80010-000 |
US $6.23 |
||
|
16
|
16
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
US $59.20 |
||
|
17
|
17
38410-86000-000
PUMP ASSY,WASHER
|
38410-86000-000 |
— | ||
|
18
|
18
38837-79500-000 CAP,WASHER MOTOR |
38837-79500-000 |
US $1.60 |
||
|
19
|
19
38493-83000-000
Hose
|
38493-83000-000 |
— | ||
| replacement | |||||
|
19
|
19
38491-79020-000 HOSE,WASHER L:3500 |
38491-79020-000 |
US $5.96 |
||
|
20
|
20
38496-66010-000
コネクタ
|
38496-66010-000 |
— | ||
| replacement | |||||
|
20
|
20
38496-56B00-000 CONNECTOR |
38496-56B00-000 |
US $1.60 |
||
