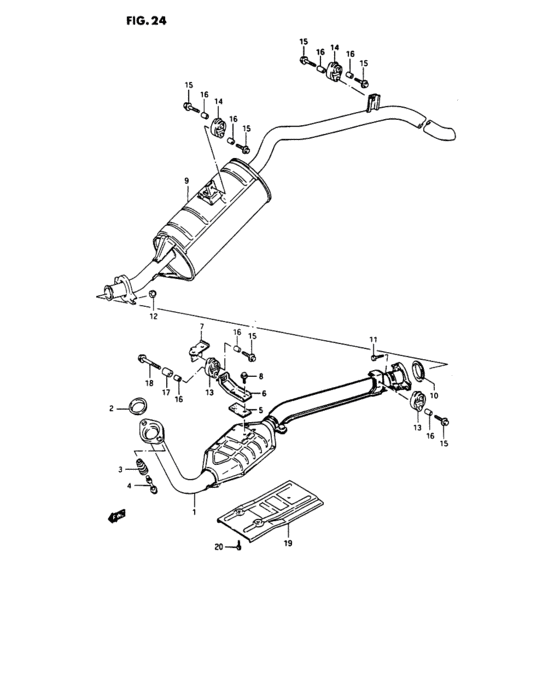

Muffler (Sweden, Switzerland, Germany, Holland:W/CATALYZER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-83014-000
Pipe, exhaust center
Sweden, Switzerland <-14150-83013 |
14150-83014-000 |
— | ||
| replacement | |||||
|
1
|
1
14100-83824-000
New Genuine Part
Sweden, Switzerland <-14150-83013 |
14100-83824-000 |
— | ||
|
1
|
1
14150-83030-000
Pipe, exhaust center
Germany, Holland |
14150-83030-000 |
— | ||
| replacement | |||||
|
1
|
1
14100-83835-000
PIPE SET,EXH CENTER
Germany, Holland |
14100-83835-000 |
— | ||
|
2
|
2
14183-82601-000
リング,シール
|
14183-82601-000 |
— | ||
| replacement | |||||
|
2
|
2
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $11.57 |
||
|
3
|
3
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
3
|
3
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
4
|
4
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
5
|
5
14283-83000-000
Insulator, exhaust bracket
|
14283-83000-000 |
— | ||
| replacement | |||||
|
5
|
5
14283-83001-000
INSULATOR,EXH BRKT NA
|
14283-83001-000 |
— | ||
|
6
|
6
14284-83002-000
BRACKET,EXH CENTER PIPE NO.1
|
14284-83002-000 |
— | ||
|
7
|
7
14285-83010-000
BRACKET,EXH CENTER PIPE NO.2
|
14285-83010-000 |
— | ||
|
8
|
8
01517-08163-000
Bolt 8 x 16
|
01517-08163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
8
|
8
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
9
|
9
14300-83011-000
Muffler
Q, V |
14300-83011-000 |
— | ||
| replacement | |||||
|
9
|
9
14300-833V2-000
MUFFLER
Q, V |
14300-833V2-000 |
— | ||
|
9
|
9
14300-83411-000
Muffler
W |
14300-83411-000 |
— | ||
| replacement | |||||
|
9
|
9
14300-8341V-000 MUFFLERW |
14300-8341V-000 |
US $120.34 |
||
|
10
|
10
14699-83000-000
GASKET,CENTER PIPE&MUF
|
14699-83000-000 |
— | ||
|
11
|
11
01107-08253-000 Bolt m8x1.25x25 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
11
|
11
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
12
|
12
09159-08022-000 NUT |
09159-08022-000 |
US $1.60 |
||
|
13
|
13
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
13
|
13
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
US $8.32 |
||
|
14
|
14
14281-79010-000
Mounting, muffler
|
14281-79010-000 |
— | ||
| replacement | |||||
|
14
|
14
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.78 |
||
|
15
|
15
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
15
|
15
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
16
|
16
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
16
|
16
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
17
|
17
14287-83000-000
スペーサ,マフラマウンチングボルト
|
14287-83000-000 |
— | ||
| replacement | |||||
|
17
|
17
14287-8300V-000
SPACER,MUFFLER MTG BOLT
|
14287-8300V-000 |
— | ||
|
18
|
18
01517-08553-000
ボルト
|
01517-08553-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0855A-000 BOLTBolt, gear holder |
01550-0855A-000 |
from US $1.22 |
||
|
18
|
18
01550-0855B-000 Bolt |
01550-0855B-000 |
from US $1.51 |
||
|
19
|
19
14231-80010-000
パネル,ヒートプロテクタ
|
14231-80010-000 |
— | ||
| replacement | |||||
|
19
|
19
14231-80011-000 PANEL,HEAT PROTECTOR |
14231-80011-000 |
US $12 |
||
|
20
|
20
03141-06123-000
Screw 6x12
|
03141-06123-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0612A-000 SCREW |
03141-0612A-000 |
US $0.76 |
||
