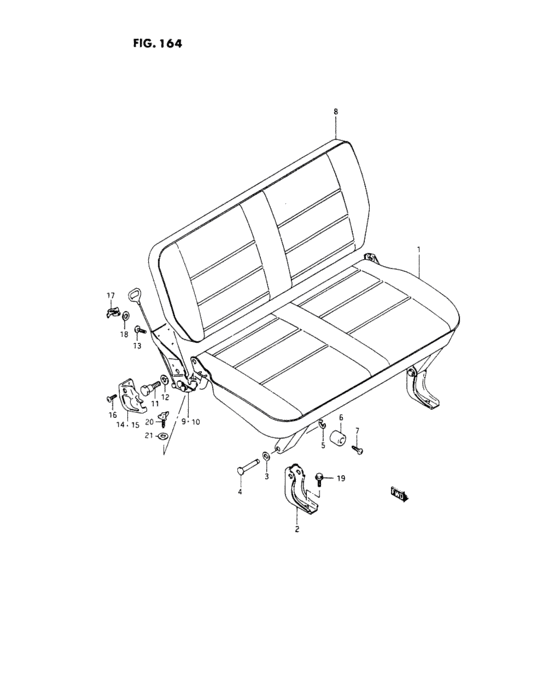

Rear seat (HIGH ROOF:JA Finland) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-80510-7LW
Cushion assy, rear seat
TYPE 1 |
87101-80510-7LW |
— | ||
|
1
|
1
87101-80510-8FD
Cushion assy, rear seat
TYPE 2 |
87101-80510-8FD |
— | ||
|
2
|
2
87271-83000-000 MALE, REAR SEAT HINGE |
87271-83000-000 |
US $12.96 |
||
|
3
|
3
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
4
|
4
09208-06001-000
ピン
|
09208-06001-000 |
— | ||
| replacements | |||||
|
4
|
4
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
4
|
4
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
4
|
4
87259-83000-000
ピン,リヤシートヒンジ
|
87259-83000-000 |
— | ||
|
4
|
4
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
|
5
|
5
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
5
|
5
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
5
|
5
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
6
|
6
09320-06014-000 CUSHION |
09320-06014-000 |
US $27.20 |
||
|
7
|
7
03142-05209-000
Screw
|
03142-05209-000 |
— | ||
| replacement | |||||
|
7
|
7
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
8
|
8
87301-80510-7LW
Back assy, rear seat
TYPE 1 |
87301-80510-7LW |
— | ||
|
8
|
8
87301-80510-8FD
Back assy, rear seat
TYPE 2 |
87301-80510-8FD |
— | ||
|
9
|
9
87210-80200-000
LOCK,RR SEAT BACK HNG,R
|
87210-80200-000 |
— | ||
|
10
|
10
87610-80200-000
LOCK,RR SEAT BACK HNG,L
|
87610-80200-000 |
— | ||
|
11
|
11
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
12
|
12
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
12
|
12
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
13
|
13
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
14
|
14
87229-80200-000 COVER,RR SEAT BACK HINGE,R |
87229-80200-000 |
US $7.36 |
||
|
15
|
15
87629-80200-000 COVER,RR SEAT BACK HINGE,L |
87629-80200-000 |
US $7.99 |
||
|
16
|
16
03241-05086-000
New Genuine Part
|
03241-05086-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
17
|
17
09403-06403-000 CLAMP<-87628-83000 |
09403-06403-000 |
US $1.60 |
||
|
18
|
18
87328-83000-000 WASHER,HINGE LOCK HANDLE CLAMP |
87328-83000-000 |
US $1.60 |
||
|
19
|
19
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
20
|
20
09119-06017-000
Bolt
|
09119-06017-000 |
— | ||
| replacement | |||||
|
20
|
20
09119-06017-XC0 Bolt |
09119-06017-XC0 |
from US $5.07 |
||
|
21
|
21
09160-06020-000
Washer
|
09160-06020-000 |
— | ||
| replacement | |||||
|
21
|
21
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $0.96 |
||
