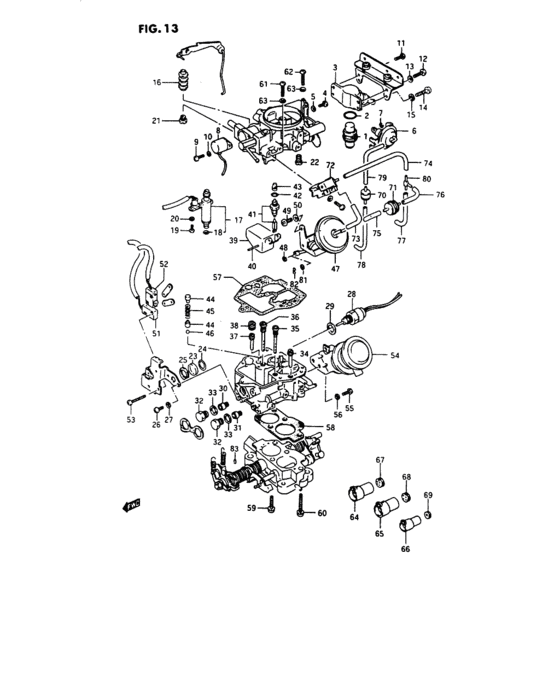

Carburetor (CARBURETOR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
13200-83051-000
Carburetor assy
<-13200-83050 |
13200-83051-000 |
— | ||
| replacement | |||||
|
|
13200-83150-000
Carburetor assy
<-13200-83050 |
13200-83150-000 |
— | ||
|
1
|
1
13228-82080-000 ELEMENT,THERMO |
13228-82080-000 |
US $429.44 |
||
|
2
|
2
13229-82080-000
SEAL,THERMO ELEMENT
|
13229-82080-000 |
— | ||
|
3
|
3
13227-82080-000 HOLDER,THERMO ELEMENT |
13227-82080-000 |
US $183.26 |
||
|
4
|
4
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
5
|
5
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
5
|
5
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
5
|
5
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
6
|
6
13235-83051-000
PISTON ASSY,CHOKE
<-13235-83050 |
13235-83051-000 |
— | ||
|
7
|
7
13374-82000-000
E ring
|
13374-82000-000 |
— | ||
| replacement | |||||
|
7
|
7
09383-02003-000
E RING
|
09383-02003-000 |
— | ||
|
8
|
8
13220-83050-000
SOLENOID ASSY,SWITCH VENT
|
13220-83050-000 |
— | ||
|
9
|
9
02112-04106-000
Screw
|
02112-04106-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-0410A-000 SCREW |
02112-0410A-000 |
from US $2.04 |
||
|
10
|
10
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
11
|
11
13377-83050-000
Screw
|
13377-83050-000 |
— | ||
| replacements | |||||
|
11
|
11
02112-3525B-000 SCREW |
02112-3525B-000 |
from US $2.21 |
||
|
11
|
11
02112-35253-000
Screw
|
02112-35253-000 |
— | ||
|
12
|
12
02112-06126-000
Screw 6x12
|
02112-06126-000 |
— | ||
| replacements | |||||
|
12
|
12
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
12
|
12
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
13
|
13
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
14
|
14
13234-83060-000
Screw
|
13234-83060-000 |
— | ||
| replacements | |||||
|
14
|
14
02112-0655B-000 SCREW |
02112-0655B-000 |
from US $1.51 |
||
|
14
|
14
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
14
|
14
02112-06556-000
Screw
|
02112-06556-000 |
— | ||
|
14
|
14
08321-31066-000
Lock washer
|
08321-31066-000 |
— | ||
|
15
|
15
08321-31066-000
Lock washer
|
08321-31066-000 |
— | ||
|
16
|
16
13233-82020-000
Boot, pump
|
13233-82020-000 |
— | ||
| replacement | |||||
|
16
|
16
13233-83150-000
BOOT,PUMP
|
13233-83150-000 |
— | ||
|
17
|
17
13240-83050-000 VALVE ASSY,SOLENOID |
13240-83050-000 |
US $180.31 |
||
|
18
|
18
13241-82000-000
O ring,solenoid valve
|
13241-82000-000 |
— | ||
|
19
|
19
02112-04106-000
Screw
|
02112-04106-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-0410A-000 SCREW |
02112-0410A-000 |
from US $2.04 |
||
|
20
|
20
08321-21046-000
Lock washer
|
08321-21046-000 |
— | ||
| replacement | |||||
|
20
|
20
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.80 |
||
|
21
|
21
13265-83060-000
Bleeder, slow air
|
13265-83060-000 |
— | ||
|
22
|
22
13266-83060-000
Bleeder, slow air
|
13266-83060-000 |
— | ||
|
23
|
23
13251-82000-000
Gauge, level
|
13251-82000-000 |
— | ||
|
24
|
24
13252-82000-000
O ring
|
13252-82000-000 |
— | ||
|
25
|
25
13267-82000-000
Gasket, level gauge
|
13267-82000-000 |
— | ||
| replacement | |||||
|
25
|
25
13267-82000-H17
Gasket, level gauge
|
13267-82000-H17 |
— | ||
|
26
|
26
02112-05086-000
Screw
|
02112-05086-000 |
— | ||
| replacement | |||||
|
26
|
26
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
27
|
27
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
27
|
27
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
28
|
28
13261-83050-000
Valve, solenoid
|
13261-83050-000 |
— | ||
| replacement | |||||
|
28
|
28
13261-83051-000
Valve,solenoid
|
13261-83051-000 |
— | ||
|
29
|
29
13262-82000-000
WASHER,SOLENOID VALVE
|
13262-82000-000 |
— | ||
|
30
|
30
09491-85009-000
JET,MAIN(P,85)
|
09491-85009-000 |
— | ||
|
31
|
31
09491-28013-000
JET,MAIN(S,140)
|
09491-28013-000 |
— | ||
|
32
|
32
13254-82000-000
Plug, drain
|
13254-82000-000 |
— | ||
|
33
|
33
13363-82000-000
GASKET,DRAIN PLUG
|
13363-82000-000 |
— | ||
|
34
|
34
09492-20017-000
Jet,slow(s,#100)
|
09492-20017-000 |
— | ||
|
35
|
35
13259-83060-000
Bleeder, main air
|
13259-83060-000 |
— | ||
|
36
|
36
13258-83060-000
BLEEDER,MAIN AIR #60
|
13258-83060-000 |
— | ||
|
37
|
37
09492-53001-000
JET,SLOW(P,53)
|
09492-53001-000 |
— | ||
|
38
|
38
13266-82000-000
Bleeder, slow air
|
13266-82000-000 |
— | ||
|
39
|
39
13319-82000-000
FLOAT
|
13319-82000-000 |
— | ||
|
40
|
40
13323-82000-000
Pin, float
|
13323-82000-000 |
— | ||
|
41
|
41
13332-82000-000 VALVE ASSY,NEEDLE |
13332-82000-000 |
US $97.52 |
||
|
42
|
42
13364-82000-000
GASKET,NEEDLE VALVE
|
13364-82000-000 |
— | ||
|
43
|
43
13324-82000-000
Filter,needle valve
|
13324-82000-000 |
— | ||
|
44
|
44
13321-82000-000
WEIGHT,INJECTOR
|
13321-82000-000 |
— | ||
|
45
|
45
13322-82000-000
Spring,injector
|
13322-82000-000 |
— | ||
|
46
|
46
13325-82000-000
BALL
|
13325-82000-000 |
— | ||
|
47
|
47
13330-83050-000
Chamber assy, diaphragm
IN USE REF. NO. 48 |
13330-83050-000 |
— | ||
| replacement | |||||
|
47
|
47
13330-83051-000
CHAMBER ASSY
IN USE REF. NO. 48 |
13330-83051-000 |
— | ||
|
47
|
47
13330-83051-000
CHAMBER ASSY
IN USE REF. NO. 81, 82 |
13330-83051-000 |
— | ||
|
48
|
48
13374-83060-000
E ring
|
13374-83060-000 |
— | ||
|
49
|
49
02112-06106-000
Screw
|
02112-06106-000 |
— | ||
| replacement | |||||
|
49
|
49
02112-0610B-000 SCREW |
02112-0610B-000 |
from US $0.76 |
||
|
50
|
50
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
50
|
50
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
51
|
51
13337-83060-000 SWITCH,IDLE MICRO |
13337-83060-000 |
US $43.23 |
||
|
52
|
52
13338-83060-000 SWITCH,WOT MICRO |
13338-83060-000 |
US $90.41 |
||
|
53
|
53
13375-82000-000
Screw
|
13375-82000-000 |
— | ||
|
54
|
54
13350-83050-000
Actuator assy
|
13350-83050-000 |
— | ||
|
55
|
55
02112-05126-000
Screw m5x.08x12
|
02112-05126-000 |
— | ||
| replacement | |||||
|
55
|
55
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
56
|
56
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
56
|
56
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
56
|
56
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
57
|
57
13361-83060-000 GASKET,CHOKE CHAMBER |
13361-83060-000 |
US $24 |
||
|
58
|
58
13362-82000-000
Insulator
|
13362-82000-000 |
— | ||
| replacement | |||||
|
58
|
58
13362-82000-H17
INSULATOR,NA
|
13362-82000-H17 |
— | ||
|
59
|
59
13382-83060-000
Screw
|
13382-83060-000 |
— | ||
| replacements | |||||
|
59
|
59
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
59
|
59
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
59
|
59
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
|
60
|
60
13384-83060-000
Screw
|
13384-83060-000 |
— | ||
| replacements | |||||
|
60
|
60
02112-0635B-000 SCREW |
02112-0635B-000 |
from US $0.77 |
||
|
60
|
60
02112-06353-000
Screw
|
02112-06353-000 |
— | ||
|
61
|
61
02112-05166-000
Screw
|
02112-05166-000 |
— | ||
| replacements | |||||
|
61
|
61
02112-0516B-000 SCREW |
02112-0516B-000 |
from US $0.80 |
||
|
61
|
61
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
62
|
62
02112-05206-000
Screw
|
02112-05206-000 |
— | ||
| replacement | |||||
|
62
|
62
02112-0520B-000 SCREW |
02112-0520B-000 |
from US $0.77 |
||
|
63
|
63
08321-21056-000
Lock washer
|
08321-21056-000 |
— | ||
| replacements | |||||
|
63
|
63
08321-0105B-000 WASHER,LOCK |
08321-0105B-000 |
from US $0.77 |
||
|
63
|
63
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
64
|
64
13391-83050-000
Housing, 5p
|
13391-83050-000 |
— | ||
|
65
|
65
13392-83060-000
Housing, 4p
|
13392-83060-000 |
— | ||
|
66
|
66
13393-83060-000
Housing, 1p
|
13393-83060-000 |
— | ||
|
67
|
67
13394-83050-000
Cap, 5p housing
|
13394-83050-000 |
— | ||
|
68
|
68
13395-83060-000
Cap, 4p housing
|
13395-83060-000 |
— | ||
|
69
|
69
13396-83060-000
Cap, 1p housing
|
13396-83060-000 |
— | ||
|
70
|
70
13318-82020-000
VALVE,DELAY
|
13318-82020-000 |
— | ||
|
71
|
71
18114-83000-000
Valve, vtv
|
18114-83000-000 |
— | ||
| replacement | |||||
|
71
|
71
18114-80030-000
VALVE,VACUUM TRANSMITTING
|
18114-80030-000 |
— | ||
|
72
|
72
18117-83010-000
Valve, vsv
|
18117-83010-000 |
— | ||
|
73
|
73
13426-83050-000
Hose
|
13426-83050-000 |
— | ||
| replacement | |||||
|
73
|
73
13425-83050-000
Hose
|
13425-83050-000 |
— | ||
|
74
|
74
13425-83050-000
Hose
|
13425-83050-000 |
— | ||
|
75
|
75
13424-83050-000
Hose
|
13424-83050-000 |
— | ||
| replacement | |||||
|
75
|
75
13425-83050-000
Hose
|
13425-83050-000 |
— | ||
|
76
|
76
13427-83050-000
Hose
|
13427-83050-000 |
— | ||
| replacement | |||||
|
76
|
76
13425-83050-000
Hose
|
13425-83050-000 |
— | ||
|
77
|
77
13423-83050-000
Hose
|
13423-83050-000 |
— | ||
| replacement | |||||
|
77
|
77
13425-83050-000
Hose
|
13425-83050-000 |
— | ||
|
78
|
78
13422-83050-000
Hose
|
13422-83050-000 |
— | ||
| replacement | |||||
|
78
|
78
13316-82000-000
Hose
|
13316-82000-000 |
— | ||
|
79
|
79
13421-83050-000
Hose
|
13421-83050-000 |
— | ||
| replacements | |||||
|
79
|
79
09355-40805-600 HOSE(4X8X600) |
09355-40805-600 |
from US $6.24 |
||
|
79
|
79
09354-40805-300
ホース,4X8X300
|
09354-40805-300 |
— | ||
|
80
|
80
09367-04002-000 CONNECTOR |
09367-04002-000 |
US $4.80 |
||
|
81
|
81
13372-86060-000
Washer
|
13372-86060-000 |
— | ||
| replacements | |||||
|
81
|
81
08322-0104B-000 WASHERWasher, headlamp |
08322-0104B-000 |
from US $0.37 |
||
|
81
|
81
08322-0104A-000 WASHERWasher, cam rocker arm |
08322-0104A-000 |
from US $3.03 |
||
|
81
|
81
08322-01043-000
Washer
|
08322-01043-000 |
— | ||
|
82
|
82
13371-82000-000
Cotter pin
|
13371-82000-000 |
— | ||
|
83
|
83
13699-83050-000
Pin, tamper
|
13699-83050-000 |
— | ||
|
84
|
84
13200-83810-000
Gasket set
INC. REF. NO. 2, 18, 24, 25, 29,,33, 42, 57 AND 58, NOT SHOWN |
13200-83810-000 |
— | ||
| replacement | |||||
|
84
|
84
13200-83821-000
GASKET SET,CARB
INC. REF. NO. 2, 18, 24, 25, 29,,33, 42, 57 AND 58, NOT SHOWN |
13200-83821-000 |
— | ||
