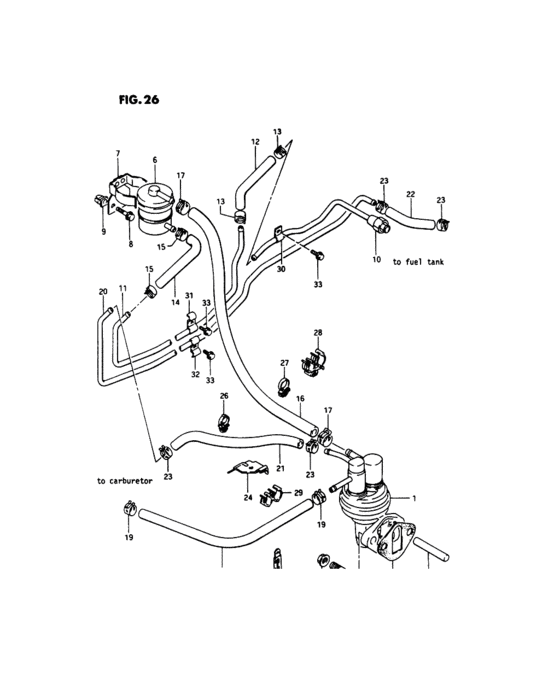

Fuel Pump (O, Q, W, V:, 6) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-83000-000
Pump assy, fuel
|
15100-83000-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-83010-000 PUMP ASSY,FUEL |
15100-83010-000 |
from US $93.31 |
||
|
2
|
2
15315-82000-000 ROD,FUEL PUMP |
15315-82000-000 |
US $3.04 |
||
|
3
|
3
15319-73001-000
ガスケット,フューエルポンプ
|
15319-73001-000 |
— | ||
| replacement | |||||
|
3
|
3
15319-63B00-000 GASKET,FUEL PUMP |
15319-63B00-000 |
US $8.16 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
5
|
5
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
15410-80200-000
FILTER,FUEL
|
15410-80200-000 |
— | ||
|
7
|
7
15420-80001-000
Bracket, fuel filter
|
15420-80001-000 |
— | ||
|
8
|
8
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
09148-06006-000 NUTNut, side |
09148-06006-000 |
US $0.96 |
||
|
10
|
10
15810-80011-000
Pipe, tank to pipe
O, Q, V <-15810-80010 |
15810-80011-000 |
— | ||
| replacement | |||||
|
10
|
10
15810-80021-000 PIPE,FUELO, Q, V <-15810-80010 |
15810-80021-000 |
US $47.12 |
||
|
10
|
10
15810-80311-000
Pipe, tank to pipe
W, <-15810-80310 |
15810-80311-000 |
— | ||
| replacement | |||||
|
10
|
10
15810-80321-000
PIPE,FUEL
W, <-15810-80310 |
15810-80321-000 |
— | ||
|
11
|
11
15821-83010-000
Pipe, pipe to filter
|
15821-83010-000 |
— | ||
| replacement | |||||
|
11
|
11
15821-83021-000 PIPE,FUEL |
15821-83021-000 |
US $47.47 |
||
|
12
|
12
09343-07050-000
Hose, fuel (pump@rcarb.)
L:810->280 |
09343-07050-000 |
— | ||
| replacement | |||||
|
12
|
12
09355-70125-00B HOSE(7X12X2000)Hose, fuel (conn to filter) (7x12x2000) L:810->280 |
09355-70125-00B |
from US $43.33 |
||
|
13
|
13
09401-13407-000
クリップ
|
09401-13407-000 |
— | ||
| replacement | |||||
|
13
|
13
09401-13419-000 CLIP |
09401-13419-000 |
from US $1.60 |
||
|
14
|
14
09343-07153-000
Hose, pipe to filter
L:150 |
09343-07153-000 |
— | ||
| replacement | |||||
|
14
|
14
09356-76145-600 HOSE(7.6X14X600)Hose (7.6x14x600) L:150 |
09356-76145-600 |
from US $22.63 |
||
|
15
|
15
09401-12407-000
Clip
|
09401-12407-000 |
— | ||
| replacement | |||||
|
15
|
15
09401-12405-000 CLIP |
09401-12405-000 |
from US $1.60 |
||
|
16
|
16
09343-07148-000
Hose, filter to pump
L:680->450 |
09343-07148-000 |
— | ||
| replacement | |||||
|
16
|
16
09356-76145-00B
HOSE(7.6X14X2000)
L:680->450 |
09356-76145-00B |
— | ||
|
16
|
16
15840-83010-000
Hose, filter to pump
SJ50-107066~ SJ51-101065~ |
15840-83010-000 |
— | ||
|
16
|
16
15840-83011-000
Hose, filter to pump
SJ50-115381~ SJ51-102061~ |
15840-83011-000 |
— | ||
| replacements | |||||
|
16
|
16
09356-76145-00B
HOSE(7.6X14X2000)
SJ50-115381~ SJ51-102061~ |
09356-76145-00B |
— | ||
|
16
|
16
09356-76145-00A
Hose, pipe to pump
SJ50-115381~ SJ51-102061~ |
09356-76145-00A |
— | ||
|
17
|
17
09401-11405-000 CLAMP |
09401-11405-000 |
US $1.22 |
||
|
18
|
18
15830-83000-000
Hose, pump to carburetor
|
15830-83000-000 |
— | ||
| replacement | |||||
|
18
|
18
15830-83X50-000
HOSE,FUEL PUMP TO CARB
|
15830-83X50-000 |
— | ||
|
19
|
19
09401-10404-000 CLAMP |
09401-10404-000 |
US $13.20 |
||
| replacement | |||||
|
19
|
19
09401-10411-000 CLIPClip, cap |
09401-10411-000 |
from US $3.83 |
||
|
20
|
20
15861-83010-000
Tube retoir
O, Q, V |
15861-83010-000 |
— | ||
| replacement | |||||
|
20
|
20
15861-83022-000 PIPE,FUEL RTNO, Q, V |
15861-83022-000 |
US $47.10 |
||
|
20
|
20
15861-83422-000
Pipe, fuel return
W, <-15861-83420 |
15861-83422-000 |
— | ||
|
21
|
21
09343-04091-000
ホース,11.2X4.2X515
L:515 |
09343-04091-000 |
— | ||
| replacement | |||||
|
21
|
21
09356-42115-600 HOSE(4.2X11.2X600)L:515 |
09356-42115-600 |
US $15.52 |
||
|
21
|
21
15870-83000-000
Hose, pump to pipe
SJ50-107066~ SJ51-101065~ |
15870-83000-000 |
— | ||
|
21
|
21
15870-83002-000
Hose, pump to pipe
SJ50-115381~ SJ51-102061~,<-15870-83001 |
15870-83002-000 |
— | ||
| replacement | |||||
|
21
|
21
09356-42115-600 HOSE(4.2X11.2X600)SJ50-115381~ SJ51-102061~,<-15870-83001 |
09356-42115-600 |
US $15.52 |
||
|
22
|
22
09343-04099-000
Hose (4.5*8.5*550)
L:550->125 |
09343-04099-000 |
— | ||
| replacements | |||||
|
22
|
22
09359-45852-600
HOSE(4.5X8.5X600)
L:550->125 |
09359-45852-600 |
— | ||
|
22
|
22
09359-45855-600 Hose(4.5X8.5X300)L:550->125 |
09359-45855-600 |
US $9.64 |
||
|
23
|
23
09401-10404-000 CLAMP |
09401-10404-000 |
US $13.20 |
||
| replacement | |||||
|
23
|
23
09401-10411-000 CLIPClip, cap |
09401-10411-000 |
from US $3.83 |
||
|
24
|
24
15881-83001-000
Bracket, fuel hose clamp
|
15881-83001-000 |
— | ||
| replacement | |||||
|
24
|
24
15881-83002-000
Bracket,fuel hose clamp
|
15881-83002-000 |
— | ||
|
24
|
24
15881-83002-000
Bracket,fuel hose clamp
SJ50-115381~ SJ51-102061~ |
15881-83002-000 |
— | ||
|
25
|
25
09404-08414-000
Clamp, wiring harness
|
09404-08414-000 |
— | ||
| replacement | |||||
|
25
|
25
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
26
|
26
09403-12404-000 CLAMP |
09403-12404-000 |
US $9.20 |
||
|
26
|
26
09408-00030-000
Clip
SJ50-107066~ SJ51-101065~,~SJ50-115380 ~SJ51-102060 |
09408-00030-000 |
— | ||
| replacement | |||||
|
26
|
26
09403-13409-000 CLAMPSJ50-107066~ SJ51-101065~,~SJ50-115380 ~SJ51-102060 |
09403-13409-000 |
US $14 |
||
|
27
|
27
09408-00040-000
クランプ
~SJ50-115380 ~SJ51-102060 |
09408-00040-000 |
— | ||
| replacement | |||||
|
27
|
27
09403-15403-000 CLAMP~SJ50-115380 ~SJ51-102060 |
09403-15403-000 |
US $11 |
||
|
28
|
28
09408-00090-000
クランプ
SJ50-115381~ SJ51-102061~ |
09408-00090-000 |
— | ||
| replacement | |||||
|
28
|
28
09403-13308-000 CLAMPSJ50-115381~ SJ51-102061~ |
09403-13308-000 |
US $14 |
||
|
29
|
29
09408-00083-000 CLAMPSJ50-115381~ SJ51-102061~ |
09408-00083-000 |
US $17.30 |
||
|
30
|
30
09403-08309-000 CLAMPO, Q, V |
09403-08309-000 |
US $2.08 |
||
|
31
|
31
09403-08310-000 CLAMP |
09403-08310-000 |
US $1.12 |
||
|
32
|
32
15819-78000-000
Clamp, fuel pipe
|
15819-78000-000 |
— | ||
| replacement | |||||
|
32
|
32
15819-78101-000
CLAMP
|
15819-78101-000 |
— | ||
|
33
|
33
09132-06006-000 SCREW(6X12)O, Q, V |
09132-06006-000 |
US $1.60 |
||
