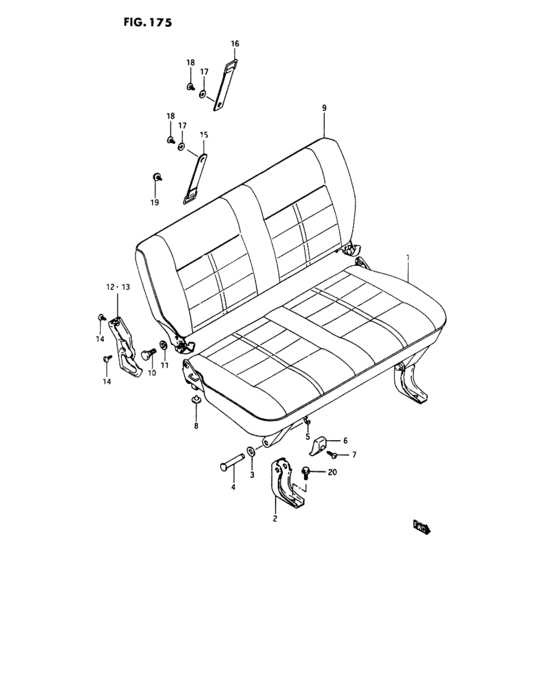

Rear seat (SPECIAL EDITION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-83001-8RN
Cushion assy, rear seat
|
87101-83001-8RN |
— | ||
|
2
|
2
87271-83000-000 MALE, REAR SEAT HINGE |
87271-83000-000 |
US $12.96 |
||
|
3
|
3
09164-07001-000 WASHER |
09164-07001-000 |
US $1.60 |
||
|
4
|
4
09208-06001-000
ピン
|
09208-06001-000 |
— | ||
| replacements | |||||
|
4
|
4
87259-56B10-000 PIN,REAR SEAT HINGE |
87259-56B10-000 |
US $1.76 |
||
|
4
|
4
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
4
|
4
87259-83000-000
ピン,リヤシートヒンジ
|
87259-83000-000 |
— | ||
|
4
|
4
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
|
5
|
5
08332-11046-000
E ring
|
08332-11046-000 |
— | ||
| replacements | |||||
|
5
|
5
08332-1104B-000 E RING |
08332-1104B-000 |
from US $0.80 |
||
|
5
|
5
08332-1104A-000 E RING |
08332-1104A-000 |
from US $0.76 |
||
|
6
|
6
87195-83000-000
STOPPER,REAR SEAT
|
87195-83000-000 |
— | ||
|
7
|
7
03141-05206-000
Screw 5x20
|
03141-05206-000 |
— | ||
| replacement | |||||
|
7
|
7
03141-0520B-000 SCREW |
03141-0520B-000 |
US $2.56 |
||
|
8
|
8
87295-80200-000 CUSHION,REAR SEAT REAR LEG |
87295-80200-000 |
from US $1.47 |
||
|
9
|
9
87301-83000-8RN
Back assy, seat
|
87301-83000-8RN |
— | ||
| replacement | |||||
|
9
|
9
87380-83000-8RN
Cover, back
|
87380-83000-8RN |
— | ||
|
10
|
10
09111-08044-000 BOLT(8X16) |
09111-08044-000 |
US $14.40 |
||
|
11
|
11
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
11
|
11
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
12
|
12
87229-83000-000
Cover, hinge outer rh
|
87229-83000-000 |
— | ||
| replacement | |||||
|
12
|
12
87229-83000-5PK COVER,RR SEAT BACK HINGE,R |
87229-83000-5PK |
US $15.06 |
||
|
13
|
13
87629-83000-000
COVER,RR SEAT BACK HINGE,L
|
87629-83000-000 |
— | ||
| replacement | |||||
|
13
|
13
87629-83000-5PK COVER,RR SEAT BACK HNG,L |
87629-83000-5PK |
US $15.06 |
||
|
14
|
14
03241-05085-000
New Genuine Part
|
03241-05085-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0508A-000 SCREW |
03241-0508A-000 |
US $0.80 |
||
|
15
|
15
87291-83000-000
Band, seat stopper
|
87291-83000-000 |
— | ||
|
16
|
16
87293-83000-000
Band, seat stopper
|
87293-83000-000 |
— | ||
|
17
|
17
87327-83000-000
COLLAR,SEAT STOPPER BAND
|
87327-83000-000 |
— | ||
|
18
|
18
03241-05108-000
New Genuine Part
|
03241-05108-000 |
— | ||
| replacements | |||||
|
18
|
18
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
18
|
18
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
19
|
19
09410-00073-000 HOOK |
09410-00073-000 |
from US $2.24 |
||
|
20
|
20
01517-08166-000
Bolt 8x16
|
01517-08166-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
