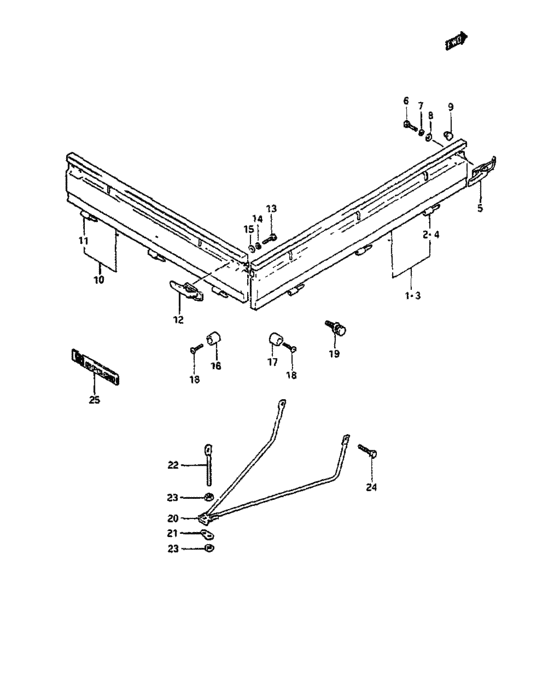

Rear gate and side gate (K) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67100-80201-000
Panel assy, side gate rh
|
67100-80201-000 |
— | ||
| replacement | |||||
|
1
|
1
67100-80202-000
Panel assy, side gate rh
|
67100-80202-000 |
— | ||
|
2
|
2
73590-67100-000
Hinge, rh
|
73590-67100-000 |
— | ||
| replacement | |||||
|
2
|
2
67170-85090-000 HINGE,SIDE GATE |
67170-85090-000 |
US $28.13 |
||
|
3
|
3
67400-80201-000
Panel assy, side gate lh
|
67400-80201-000 |
— | ||
| replacement | |||||
|
3
|
3
67400-80242-000
Panel assy, side gate lh
|
67400-80242-000 |
— | ||
|
4
|
4
73690-67100-000
Hinge, lh
|
73690-67100-000 |
— | ||
| replacement | |||||
|
4
|
4
67470-85090-000
Hinge,side gate
|
67470-85090-000 |
— | ||
|
5
|
5
73910-52002-000 HANDLE,GATE LOCK |
73910-52002-000 |
US $56.80 |
||
|
6
|
6
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
7
|
7
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
8
|
8
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
9
|
9
09321-08005-000
CUSHION
|
09321-08005-000 |
— | ||
| replacement | |||||
|
9
|
9
09321-08025-000 Cushion |
09321-08025-000 |
from US $1.76 |
||
|
10
|
10
73700-79000-000
Panel assy, rear gate
|
73700-79000-000 |
— | ||
| replacement | |||||
|
10
|
10
67700-85080-000
GATE ASSY,RR
|
67700-85080-000 |
— | ||
|
11
|
11
73590-67100-000
Hinge, rh
|
73590-67100-000 |
— | ||
| replacement | |||||
|
11
|
11
67170-85090-000 HINGE,SIDE GATE |
67170-85090-000 |
US $28.13 |
||
|
12
|
12
72820-73003-000
Handle, rear gate lock
|
72820-73003-000 |
— | ||
| replacement | |||||
|
12
|
12
73910-52002-000 HANDLE,GATE LOCK |
73910-52002-000 |
US $56.80 |
||
|
13
|
13
01107-06206-000
Bolt, front
|
01107-06206-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
|
14
|
14
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
15
|
15
08322-21066-000
Washer
|
08322-21066-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
16
|
16
09320-06011-000 CUSHION |
09320-06011-000 |
from US $2.57 |
||
|
17
|
17
09320-06012-000 CUSHIONCushion, release lever |
09320-06012-000 |
US $32 |
||
|
18
|
18
02142-05206-000
スクリュ
|
02142-05206-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
19
|
19
09103-06076-000
Bolt,6x16
|
09103-06076-000 |
— | ||
|
20
|
20
72860-80201-000
Carrier, spare tire
|
72860-80201-000 |
— | ||
|
21
|
21
57251-67600-000
PLATE,SPARE TIRE CARRIER
|
57251-67600-000 |
— | ||
|
22
|
22
57241-72602-000
BOLT,SPARE TIRE CARRIER
|
57241-72602-000 |
— | ||
|
23
|
23
08310-12106-000
Nut
|
08310-12106-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
23
|
23
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
24
|
24
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
24
|
24
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
25
|
25
77841-81000-000
Emblem, 5 speed
|
77841-81000-000 |
— | ||
| replacement | |||||
|
25
|
25
77841-81002-000 EMBLEM,5SPEED |
77841-81002-000 |
US $18.24 |
||
