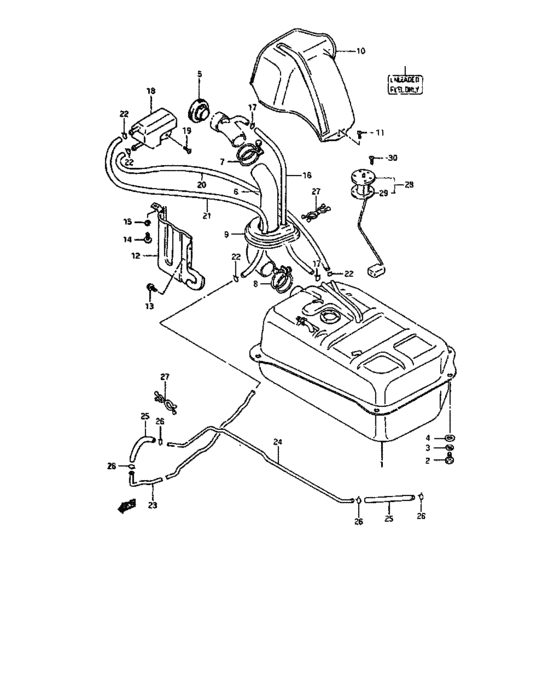

Fuel tank (FUEL TANK) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-80036-000
Tank assy, fuel
|
89101-80036-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-80037-000
TANK ASSY,FUEL
|
89101-80037-000 |
— | ||
|
2
|
2
01107-10303-000 ボルト |
01107-10303-000 |
US $1.72 |
||
| replacement | |||||
|
2
|
2
01500-1030A-000 BOLT |
01500-1030A-000 |
from US $0.96 |
||
|
3
|
3
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
3
|
3
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
4
|
4
09160-10001-000
Washer
|
09160-10001-000 |
— | ||
| replacement | |||||
|
4
|
4
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
5
|
5
89260-83000-000
Cap assy, fuel filler
|
89260-83000-000 |
— | ||
| replacement | |||||
|
5
|
5
89300-83810-000 CAP SET,FUEL FILLER |
89300-83810-000 |
US $115.18 |
||
|
6
|
6
89241-83020-000 HOSE,FUEL TANK FILLER |
89241-83020-000 |
US $99.20 |
||
|
7
|
7
09400-60301-000 CLAMP |
09400-60301-000 |
US $1.73 |
||
|
8
|
8
09400-53301-000 CLAMP |
09400-53301-000 |
US $2.08 |
||
|
9
|
9
89281-80010-000
シール,フューエルインレットパイプダスト
|
89281-80010-000 |
— | ||
| replacement | |||||
|
9
|
9
89281-80020-000 SEALER,FUEL FILLER HOSE DUST |
89281-80020-000 |
US $35.20 |
||
|
10
|
10
89311-80000-000
PROTECTOR,FUEL INLET PIPE UPR
Q, V |
89311-80000-000 |
— | ||
|
10
|
10
89311-80300-000 PROTECTOR,FUEL INLET UPPERW |
89311-80300-000 |
US $44.16 |
||
|
11
|
11
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
11
|
11
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
12
|
12
89312-83030-000 PROTECTOR,INLET PIPE LOWER |
89312-83030-000 |
US $29.60 |
||
|
13
|
13
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
13
|
13
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
14
|
14
09103-06089-000 BOLT(6X20) |
09103-06089-000 |
US $9.90 |
||
|
15
|
15
09305-07003-000 BUSH |
09305-07003-000 |
US $16.20 |
||
|
16
|
16
09343-11016-000
Hose, breather
L:410 |
09343-11016-000 |
— | ||
| replacement | |||||
|
16
|
16
09352-11163-600 HOSE(11X16X600)L:410 |
09352-11163-600 |
US $26.40 |
||
|
17
|
17
09401-16301-000 CLAMP |
09401-16301-000 |
US $12.90 |
||
|
18
|
18
89411-80000-000
SEPARATOR,FUEL
|
89411-80000-000 |
— | ||
|
19
|
19
03141-06108-000
New Genuine Part
|
03141-06108-000 |
— | ||
| replacement | |||||
|
19
|
19
03141-0610A-000 SCREW |
03141-0610A-000 |
US $0.80 |
||
|
20
|
20
09352-50823-890
Hose, breather (l:890->60)
L:890->690 |
09352-50823-890 |
— | ||
| replacements | |||||
|
20
|
20
09352-50823-00B
HOSE(5X8.2X2000)
L:890->690 |
09352-50823-00B |
— | ||
|
20
|
20
09352-50005-00B Hose(5X8.2X2000)L:890->690 |
09352-50005-00B |
from US $9.27 |
||
|
21
|
21
09352-50823-890
Hose, breather (l:890->60)
L:890->485 |
09352-50823-890 |
— | ||
| replacements | |||||
|
21
|
21
09352-50823-00B
HOSE(5X8.2X2000)
L:890->485 |
09352-50823-00B |
— | ||
|
21
|
21
09352-50005-00B Hose(5X8.2X2000)L:890->485 |
09352-50005-00B |
from US $9.27 |
||
|
22
|
22
09401-08402-000 CLIP |
09401-08402-000 |
US $2.18 |
||
|
23
|
23
89431-83301-000
PIPE,EVAPORATION NO.1
TYPE 4:Q, V |
89431-83301-000 |
— | ||
|
23
|
23
89431-70A00-000
Pipe, evaporation no.1
TYPE 5:Q, V |
89431-70A00-000 |
— | ||
| replacement | |||||
|
23
|
23
89431-70A01-000
PIPE,EVAPORATION NO.1
TYPE 5:Q, V |
89431-70A01-000 |
— | ||
|
23
|
23
89431-83500-000
Pipe,evaporation,no.1
W |
89431-83500-000 |
— | ||
|
24
|
24
89432-83000-000
Pipe,evaporation no.2
|
89432-83000-000 |
— | ||
|
25
|
25
09354-54116-550
New Genuine Part
L:550->200 |
09354-54116-550 |
— | ||
| replacement | |||||
|
25
|
25
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:550->200 |
09355-54115-600 |
from US $7.20 |
||
|
26
|
26
09401-11402-000
Clip
|
09401-11402-000 |
— | ||
| replacement | |||||
|
26
|
26
09401-11403-000 CLIPClip |
09401-11403-000 |
from US $1.44 |
||
|
27
|
27
09408-00013-000 CLAMPClamp |
09408-00013-000 |
US $1.92 |
||
|
28
|
28
34810-80001-000
Gauge assy, fuel level
|
34810-80001-000 |
— | ||
| replacement | |||||
|
28
|
28
34810-80700-000 GAUGE ASSY,FUEL LEVEL |
34810-80700-000 |
US $66.88 |
||
|
29
|
29
34825-67012-000 GASKET |
34825-67012-000 |
US $1.60 |
||
|
30
|
30
02112-05088-000
Screw
|
02112-05088-000 |
— | ||
| replacement | |||||
|
30
|
30
02112-05087-000 SCREW |
02112-05087-000 |
from US $0.80 |
||
|
31
|
31
86932-73060-000 LABEL,FUEL CAUTIONLabel, fuel caution |
86932-73060-000 |
US $1.52 |
||
