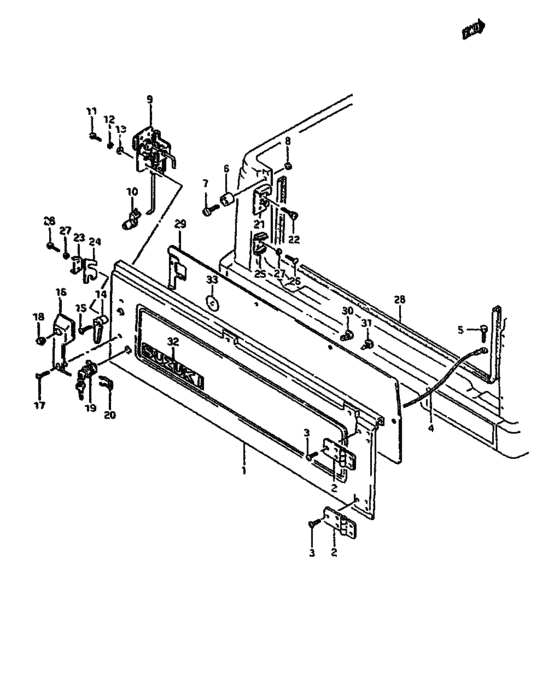

Rear gate (Q, W) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
67700-80060-000
Ens panneau hayon
Q |
67700-80060-000 |
— | ||
| replacement | |||||
|
1
|
1
67700-80360-000 PANEL ASSY,REAR GATEQ |
67700-80360-000 |
US $366.16 |
||
|
1
|
1
67700-83020-000
Panel, rear gate
W |
67700-83020-000 |
— | ||
| replacement | |||||
|
1
|
1
67700-83300-000
Panel assy,rear gate
W |
67700-83300-000 |
— | ||
|
2
|
2
67790-80033-000 HINGE,RR GATE |
67790-80033-000 |
US $27.97 |
||
|
3
|
3
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
4
|
4
72850-80002-000 CABLE,RR GATE |
72850-80002-000 |
US $8.66 |
||
|
5
|
5
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) |
09100-06075-000 |
US $1.12 |
||
|
6
|
6
72875-80003-000 CUSHION,REAR GATE |
72875-80003-000 |
US $2.88 |
||
|
7
|
7
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
7
|
7
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
8
|
8
08313-11063-000 New Genuine Part |
08313-11063-000 |
US $1.03 |
||
| replacements | |||||
|
8
|
8
08313-1006A-000 NUT |
08313-1006A-000 |
from US $0.80 |
||
|
8
|
8
08313-1006B-000 NUT |
08313-1006B-000 |
from US $0.80 |
||
|
9
|
9
82550-80082-000
LOCK ASSY,RR GATE SIDE,L
|
82550-80082-000 |
— | ||
|
10
|
10
09209-05016-000 PIN |
09209-05016-000 |
US $1.67 |
||
|
11
|
11
02112-06123-000
Screw, breather cover
|
02112-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
11
|
11
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
12
|
12
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
12
|
12
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
13
|
13
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
14
|
14
82591-80060-000
HANDLE,REAR GATE LOCK
|
82591-80060-000 |
— | ||
|
15
|
15
02112-06125-000
Screw 6x12
|
02112-06125-000 |
— | ||
| replacements | |||||
|
15
|
15
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
15
|
15
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
16
|
16
82592-80060-000
COVER,RR GATE LOCK HANDLE
|
82592-80060-000 |
— | ||
|
17
|
17
02112-06125-000
Screw 6x12
|
02112-06125-000 |
— | ||
| replacements | |||||
|
17
|
17
02112-0612B-000 SCREWScrew, oil guide plate |
02112-0612B-000 |
from US $0.76 |
||
|
17
|
17
02112-0612A-000 SCREW |
02112-0612A-000 |
from US $0.76 |
||
|
18
|
18
09250-14006-000 PLUG(OD:17)Cap, oil level gauge hole |
09250-14006-000 |
from US $1.92 |
||
|
19
|
19
77400-70832-000 CYLINDER,FR DR LATCH LOCK,L |
77400-70832-000 |
US $36.80 |
||
|
20
|
20
77461-80080-000
CLIP,KEY CYLINDER
|
77461-80080-000 |
— | ||
| replacement | |||||
|
20
|
20
77461-78000-000 CLIP |
77461-78000-000 |
US $6.88 |
||
|
21
|
21
77810-60021-000 STRIKER,RR GATE LATCH |
77810-60021-000 |
US $25.09 |
||
|
22
|
22
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
22
|
22
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
22
|
22
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.90 |
||
|
23
|
23
78251-68201-000 MALE,BACK DR ST0P |
78251-68201-000 |
US $11.04 |
||
|
24
|
24
77891-63100-000 SPACER |
77891-63100-000 |
US $4.48 |
||
|
25
|
25
78261-68201-000 MALE,BACK DR ST0P |
78261-68201-000 |
US $11.04 |
||
|
26
|
26
02112-06163-000
Screw
|
02112-06163-000 |
— | ||
| replacements | |||||
|
26
|
26
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.80 |
||
|
26
|
26
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
27
|
27
08321-21063-000 Lock washer |
08321-21063-000 |
US $1.07 |
||
| replacement | |||||
|
27
|
27
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
28
|
28
84681-80001-000 WEATHERSTRIP,RR GATE OPNG |
84681-80001-000 |
US $47.89 |
||
|
29
|
29
76140-83000-5GT
TRIM,REAR DOOR
JX |
76140-83000-5GT |
— | ||
|
29
|
29
76140-83000-5GR
Trim, rear door
JX |
76140-83000-5GR |
— | ||
|
30
|
30
09409-12301-281
クリップ(ブラック)
JX |
09409-12301-281 |
— | ||
| replacement | |||||
|
30
|
30
09409-12301-5PK CLIP(BLACK)JX |
09409-12301-5PK |
US $1.22 |
||
|
30
|
30
09409-12301-5CW
Clip(brown)
JX |
09409-12301-5CW |
— | ||
|
31
|
31
09409-06312-281
Clip
W |
09409-06312-281 |
— | ||
| replacement | |||||
|
31
|
31
09409-06312-000 CLIPW |
09409-06312-000 |
US $12.90 |
||
|
31
|
31
09409-06312-5CW
Clip
W |
09409-06312-5CW |
— | ||
| replacement | |||||
|
31
|
31
09409-06312-000 CLIPW |
09409-06312-000 |
US $12.90 |
||
|
32
|
32
77813-80010-019 EMBLEM,TAIL |
77813-80010-019 |
US $63.84 |
||
|
32
|
32
77813-80010-37E
Emblem, tail
|
77813-80010-37E |
— | ||
| replacement | |||||
|
32
|
32
77813-80010-31R
EMBLEM,TAIL
|
77813-80010-31R |
— | ||
|
33
|
33
67627-70000-000
シール,ホール
|
67627-70000-000 |
— | ||
| replacement | |||||
|
33
|
33
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
US $6.72 |
||
