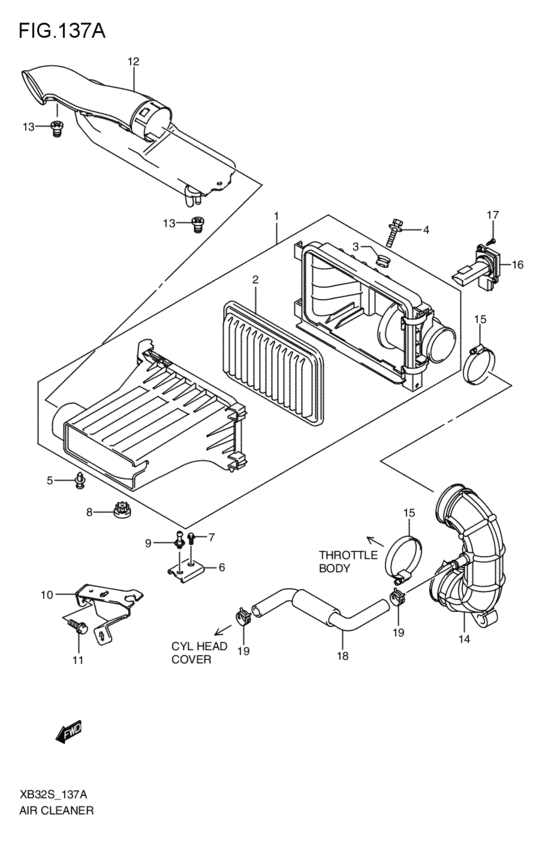

air cleaner (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-73KA0-000
Cleaner assy, air
2008-06-01~ |
13700-73KA0-000 |
— | ||
|
2
|
2
13780-73KA0-000 ELEMENT,AIR CLEANER2008-06-01~ |
13780-73KA0-000 |
US $27.05 |
||
|
3
|
3
13723-73K00-000 CUSHION,AIR CLEANER2008-06-01~ |
13723-73K00-000 |
from US $2.24 |
||
|
4
|
4
09136-06141-000 SCREW(6X25)2008-06-01~ |
09136-06141-000 |
from US $0.86 |
||
|
5
|
5
09409-08327-000 CLIP2008-06-01~ |
09409-08327-000 |
from US $1.13 |
||
|
6
|
6
13733-73K00-000 BRACKET,AIR CLNR2008-06-01~ |
13733-73K00-000 |
US $5.70 |
||
|
7
|
7
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
13175-73KA0-000
Cushion, air cleaner
2008-06-01~ |
13175-73KA0-000 |
— | ||
|
9
|
9
13176-67J00-000 BOLT,ENG COVER2008-06-01~ |
13176-67J00-000 |
US $4.42 |
||
|
10
|
10
13765-51KA1-000 BRACKET,RESONATOR2008-06-01~ |
13765-51KA1-000 |
US $15.53 |
||
|
11
|
11
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
13870-73KA0-000 PIPE,AIR INTAKE2008-06-01~ |
13870-73KA0-000 |
US $77.28 |
||
|
13
|
13
13871-51KA0-000
Grommet, air intk
2008-06-01~ |
13871-51KA0-000 |
— | ||
| replacement | |||||
|
13
|
13
13871-73K00-000 GROMMET,AIR INTK2008-06-01~ |
13871-73K00-000 |
from US $1.76 |
||
|
14
|
14
13881-73K00-000 HOSE,AIR CLNR OUT2008-06-01~ |
13881-73K00-000 |
US $90.40 |
||
|
15
|
15
09402-70503-000 CLAMPClamp,tank 2008-06-01~ |
09402-70503-000 |
from US $12.64 |
||
|
16
|
16
13800-86G00-000 SENSOR ASSY,MAIN AIR FLOW2008-06-01~ |
13800-86G00-000 |
US $314.64 |
||
|
17
|
17
03511-0416A-000 SCREW2008-06-01~ |
03511-0416A-000 |
from US $2.45 |
||
|
18
|
18
11191-73K00-000 HOSE,BREATHER2008-06-01~ |
11191-73K00-000 |
US $12.77 |
||
|
19
|
19
09401-18404-000 CLIP2008-06-01~ |
09401-18404-000 |
from US $1.33 |
||
