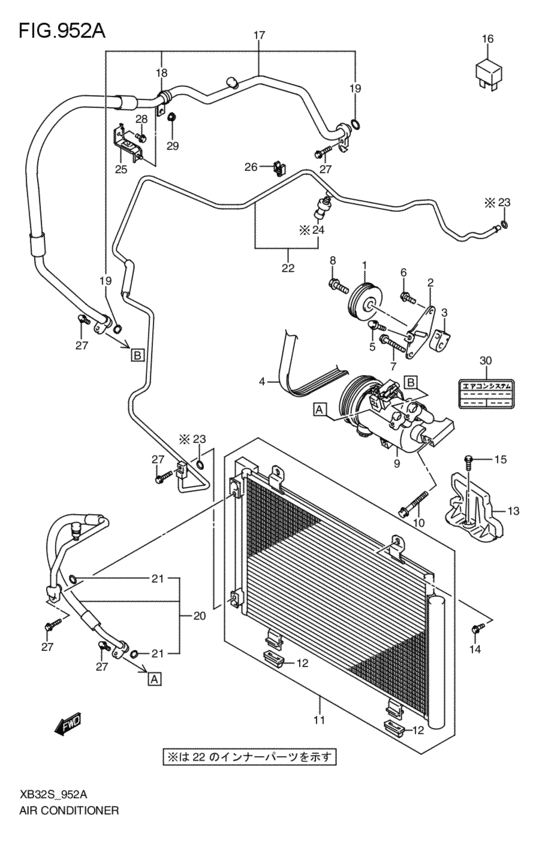

air-conditioner (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17530-82J00-000 PULLEY,GEN BELT IDLER2008-06-01~ |
17530-82J00-000 |
from US $63.02 |
||
|
2
|
2
95123-51K00-000 BRACKET,TENSION PULLEY2008-06-01~ |
95123-51K00-000 |
from US $13.87 |
||
|
3
|
3
95125-51K00-000 TENSIONER,CPRSR2008-06-01~ |
95125-51K00-000 |
US $23.18 |
||
|
4
|
4
95141-51K00-000 V-BELT,4PK 7654pk 765 2008-06-01~ |
95141-51K00-000 |
US $24.47 |
||
|
5
|
5
09103-08352-000 BOLT(8X75)2008-06-01~ |
09103-08352-000 |
US $19.50 |
||
|
6
|
6
01550-0825A-000 BOLT2008-06-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
7
|
7
01550-0860A-000 Bolt2008-06-01~ |
01550-0860A-000 |
from US $5.68 |
||
|
8
|
8
01550-1040A-000 BOLT2008-06-01~ |
01550-1040A-000 |
from US $1.12 |
||
|
9
|
9
95200-51KA0-000 COMPRESSOR ASSY2008-06-01~ |
95200-51KA0-000 |
US $1,084.16 |
||
|
10
|
10
01550-0880A-000 BOLT2008-06-01~ |
01550-0880A-000 |
from US $1.76 |
||
|
11
|
11
95310-51K00-000
CONDENSER ASSY
2008-06-01~ |
95310-51K00-000 |
— | ||
| replacement | |||||
|
11
|
11
95310-51K02-000 CONDENSER ASSY2008-06-01~ |
95310-51K02-000 |
US $401.28 |
||
|
12
|
12
95851-75F00-000 BUSH,COND2008-06-01~ |
95851-75F00-000 |
US $1.67 |
||
|
13
|
13
95340-51K00-000 SEAL,CONDENSER LOWER2008-06-01~ |
95340-51K00-000 |
US $4.23 |
||
|
14
|
14
02162-0610A-000 SCREW2008-06-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
15
|
15
02162-0616A-000 SCREW2008-06-01~ |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
15
|
15
02162-0616B-000 SCREWBolt, adjust 2008-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
16
|
16
38860-76F01-000 RELAY ASSYRelay, starting motor 2008-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
17
|
17
95710-51K00-000 Hose, suction2008-06-01~ |
95710-51K00-000 |
US $119.32 |
||
|
18
|
18
95771-70G10-000 CLAMP2008-06-01~ |
95771-70G10-000 |
US $5.96 |
||
|
19
|
19
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) 2008-06-01~ |
95896-50G00-000 |
US $1.28 |
||
|
20
|
20
95720-51K00-000 HOSE,DISCHARGE2008-06-01~ |
95720-51K00-000 |
US $103.78 |
||
|
21
|
21
95895-50G00-000 O-RING,D:2.4 ID:10.82008-06-01~ |
95895-50G00-000 |
US $1.28 |
||
|
22
|
22
95731-51K00-000
Pipe, liquid
2008-06-01~ |
95731-51K00-000 |
— | ||
| replacement | |||||
|
22
|
22
95731-51K01-000 PIPE,LIQUID2008-06-01~ |
95731-51K01-000 |
US $158.40 |
||
|
23
|
23
95891-50G00-000 O-RING,D:1.8 ID:6.72008-06-01~ |
95891-50G00-000 |
from US $0.96 |
||
|
24
|
24
95546-83E00-000 SENSOR,PRESS2008-06-01~ |
95546-83E00-000 |
US $231.84 |
||
|
25
|
25
95781-62J00-000
STAY,SUCT HOSE
2008-06-01~ |
95781-62J00-000 |
— | ||
|
26
|
26
09403-08331-000 CLAMP2008-06-01~ |
09403-08331-000 |
US $1.60 |
||
|
27
|
27
01550-0620A-000 BOLT2008-06-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
29
|
29
08316-1006A-000 NUT2008-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
30
|
30
95956-84G50-000
Label,refrigerant
2008-06-01~ |
95956-84G50-000 |
— | ||
| replacement | |||||
|
30
|
30
95956-84G51-000 LABEL,REFRIGERANT2008-06-01~ |
95956-84G51-000 |
US $1.52 |
||
