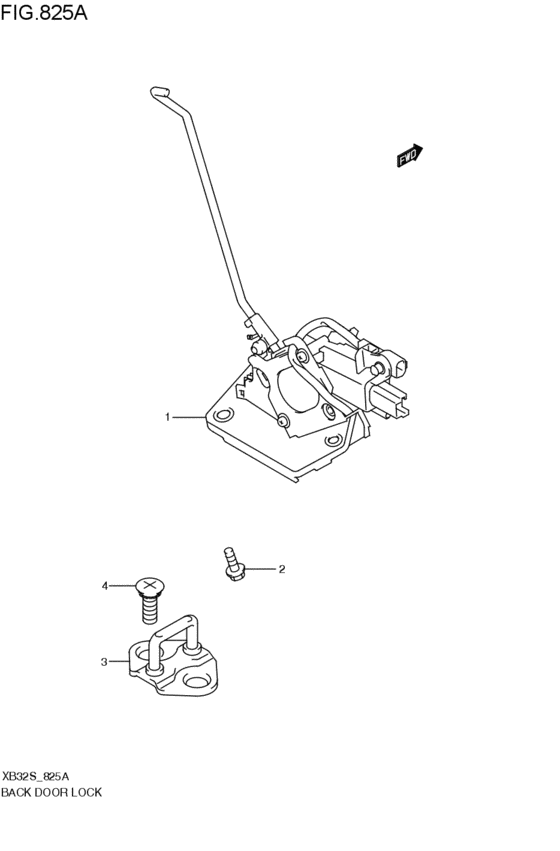

back door lock (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-51K10-000 LATCH ASSY,BACK DR2008-06-01~ |
82510-51K10-000 |
US $132.48 |
||
|
2
|
2
02162-0616A-000 SCREW2008-06-01~ |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
2
|
2
02162-0616B-000 SCREWBolt, adjust 2008-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
3
|
3
82650-79J10-000 STRIKER,BACK DOOR LATCH2008-06-01~ |
82650-79J10-000 |
US $17.60 |
||
|
4
|
4
09137-08004-000 SCREW(8X18)2008-06-01~ |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
4
|
4
09137-08011-000 SCREW(8X18)2008-06-01~ |
09137-08011-000 |
US $1.44 |
||
