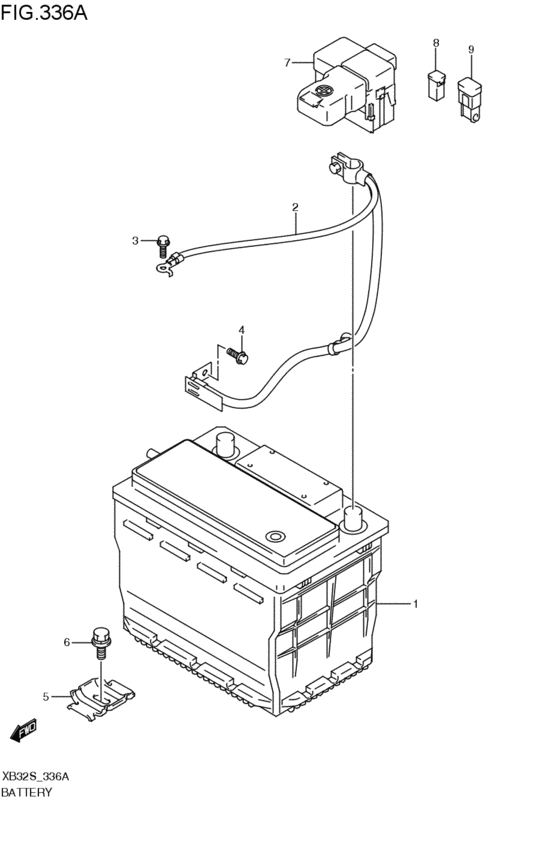

battery (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-83E30-000
Battery
2008-06-01~ |
33610-83E30-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-83E61-000
New Genuine Part
2008-06-01~ |
33610-83E61-000 |
— | ||
|
2
|
2
33850-51K20-000
ケーブル,バッテリグランド
2008-06-01~ |
33850-51K20-000 |
— | ||
|
3
|
3
09115-06005-000 BOLT(6X16)2008-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
4
|
4
01550-0812A-000 BOLT2008-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
5
|
5
72524-83E10-000 BAND,BATTERY2008-06-01~ |
72524-83E10-000 |
US $5.92 |
||
|
6
|
6
01580-0820A-000 Bolt2008-06-01~ |
01580-0820A-000 |
from US $0.91 |
||
|
7
|
7
36694-63J00-000 COVER,BATTERY TERMINAL2008-06-01~ |
36694-63J00-000 |
US $14.40 |
||
|
8
|
8
09481-50401-000 FUSE(50A)2008-06-01~ |
09481-50401-000 |
US $46 |
||
|
9
|
9
09481-80301-000 FUSE(80A)2008-06-01~ |
09481-80301-000 |
from US $5.74 |
||
