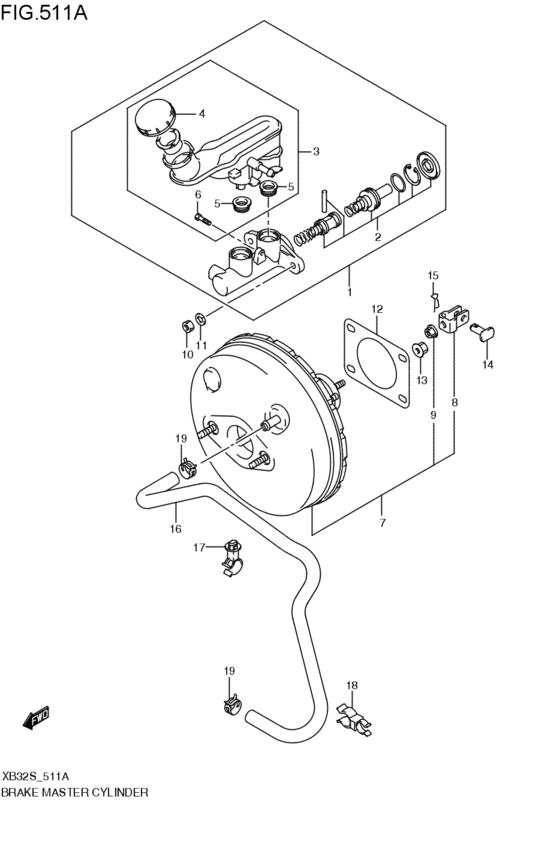

brakes master cylinder (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-51K00-000
シリンダアッシ,ブレーキマスタ
2008-06-01~ |
51100-51K00-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-51K01-000 New Genuine Part2008-06-01~ |
51100-51K01-000 |
US $132.48 |
||
|
2
|
2
51810-63J00-000
Piston set,brake master
2008-06-01~ |
51810-63J00-000 |
— | ||
| replacement | |||||
|
2
|
2
51810-63J02-000 PISTON SET,BRAKE MASTER2008-06-01~ |
51810-63J02-000 |
US $90.16 |
||
|
3
|
3
51200-63J10-000 RESERVOIR ASSY,BRAKE MASTER2008-06-01~ |
51200-63J10-000 |
US $66.98 |
||
|
4
|
4
51220-61J00-000 CAP,RESERVOIR2008-06-01~ |
51220-61J00-000 |
from US $15.53 |
||
|
5
|
5
51232-61J00-000 GROMMET,RSVR CONNECTOR2008-06-01~ |
51232-61J00-000 |
US $5.15 |
||
|
6
|
6
51233-63J00-000 BOLT,RESERVOIR2008-06-01~ |
51233-63J00-000 |
US $2.43 |
||
|
7
|
7
51300-63J40-000 BOOSTER ASSY,BRAKE MASTER2008-06-01~ |
51300-63J40-000 |
US $353.28 |
||
|
8
|
8
51182-63J10-000 CLEVIS,CYLINDER PUSH ROD2008-06-01~ |
51182-63J10-000 |
US $8.32 |
||
|
9
|
9
51315-61J00-000 NUT,CYLINDER PUSH ROD2008-06-01~ |
51315-61J00-000 |
US $3.35 |
||
|
10
|
10
51313-61J00-000 NUT2008-06-01~ |
51313-61J00-000 |
US $3.35 |
||
|
11
|
11
51314-61J00-000 SPRING WASHER2008-06-01~ |
51314-61J00-000 |
US $2.72 |
||
|
12
|
12
51132-82003-000 PACKING,BRAKE MASTER CYLINDER2008-06-01~ |
51132-82003-000 |
US $1.60 |
||
|
13
|
13
09159-08127-000 NUT2008-06-01~ |
09159-08127-000 |
US $9.90 |
||
|
14
|
14
09200-08048-000 PIN(8X20)2008-06-01~ |
09200-08048-000 |
from US $1.06 |
||
|
15
|
15
09385-08007-000 PIN,SNAPClip 2008-06-01~ |
09385-08007-000 |
from US $1.09 |
||
|
16
|
16
51010-51K20-000
ホース,ブレーキバキュームインテーク
2008-06-01~ |
51010-51K20-000 |
— | ||
|
17
|
17
51022-62J00-000 CLAMP,VACUUM HOSE2008-06-01~ |
51022-62J00-000 |
US $3.35 |
||
|
18
|
18
51022-73K10-000
クランプ,バキュームホース
2008-06-01~ |
51022-73K10-000 |
— | ||
|
19
|
19
09401-15404-000 CLIP2008-06-01~ |
09401-15404-000 |
from US $1.06 |
||
