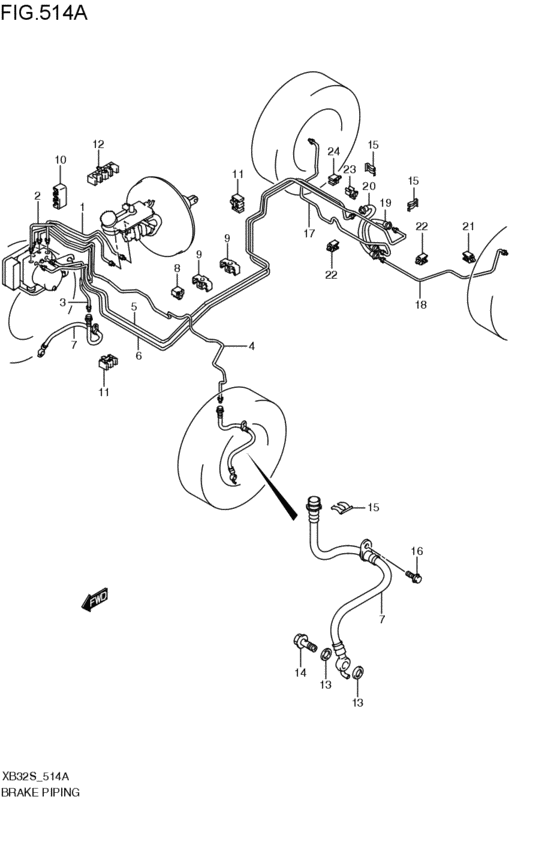

brakes piping (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-51K40-000
パイプ,マスタプライマリツーユニット
2008-06-01~ |
51410-51K40-000 |
— | ||
|
2
|
2
51420-51K40-000
パイプ,マスタセカンダリツーユニット
2008-06-01~ |
51420-51K40-000 |
— | ||
|
3
|
3
51430-51K00-000 PIPE,UNIT TO FR BK HOSE R2008-06-01~ |
51430-51K00-000 |
US $38.64 |
||
|
4
|
4
51440-51K10-000 PIPE,UNIT TO FR BK HOSE L2008-06-01~ |
51440-51K10-000 |
US $37.17 |
||
|
5
|
5
51450-51K00-000 PIPE,UNIT TO RR BK HOSE R2008-06-01~ |
51450-51K00-000 |
US $112.80 |
||
|
6
|
6
51460-51K00-000 PIPE,UNIT TO RR BK HOSE L2008-06-01~ |
51460-51K00-000 |
US $96 |
||
|
7
|
7
51550-51K00-000 HOSE,FR BRAKE FLEXIBLE2008-06-01~ |
51550-51K00-000 |
US $34.96 |
||
|
8
|
8
51752-70B00-000 CLAMP,BK PIPE2008-06-01~ |
51752-70B00-000 |
US $1.60 |
||
|
9
|
9
51751-76G00-000 CLAMP,BK PIPE DASH2008-06-01~ |
51751-76G00-000 |
US $1.60 |
||
|
10
|
10
51753-74G60-000 CLAMP,BK PIPE UNIT2008-06-01~ |
51753-74G60-000 |
US $2.61 |
||
|
11
|
11
51761-62J20-000 CLAMP,BK PIPE 2 ON FRAME2008-06-01~ |
51761-62J20-000 |
US $1.92 |
||
|
12
|
12
51761-62J40-000 CLAMP,BK PIPE 42008-06-01~ |
51761-62J40-000 |
US $2.72 |
||
|
13
|
13
09161-10009-000 WASHER(10X15X1.5)Lock washer 2008-06-01~ |
09161-10009-000 |
from US $1.06 |
||
|
14
|
14
09360-10046-000 Union bolt2008-06-01~ |
09360-10046-000 |
US $15.50 |
||
|
15
|
15
09383-13003-000 E-RING2008-06-01~ |
09383-13003-000 |
from US $1.60 |
||
|
16
|
16
01551-0816C-000 Bolt2008-06-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
17
|
17
51510-62J00-000 PIPE,RR BK HOSE TO WHL CYL R2008-06-01~ |
51510-62J00-000 |
US $40.80 |
||
|
18
|
18
51520-62J00-000 PIPE,RR BK HOSE TO WHL CYL L2008-06-01~ |
51520-62J00-000 |
US $40.80 |
||
|
19
|
19
51570-62J00-000 HOSE,RR BRAKE FLEXIBLE,R2008-06-01~ |
51570-62J00-000 |
US $17.70 |
||
|
20
|
20
51580-62J00-000 HOSE,RR BRAKE FLEXIBLE,L2008-06-01~ |
51580-62J00-000 |
US $17.70 |
||
|
21
|
21
51761-62J70-000 CLAMP,BRAKE PIPE AXLE NO.22008-06-01~ |
51761-62J70-000 |
US $1.60 |
||
|
22
|
22
51761-62J10-000 CLAMP,BK PIPE RR AXLE2008-06-01~ |
51761-62J10-000 |
US $2.50 |
||
|
23
|
23
51761-62J60-000 CLAMP,BK PIPE RR X MBR 12008-06-01~ |
51761-62J60-000 |
US $2.50 |
||
|
24
|
24
51761-79J00-000 CLAMP2008-06-01~ |
51761-79J00-000 |
US $1.60 |
