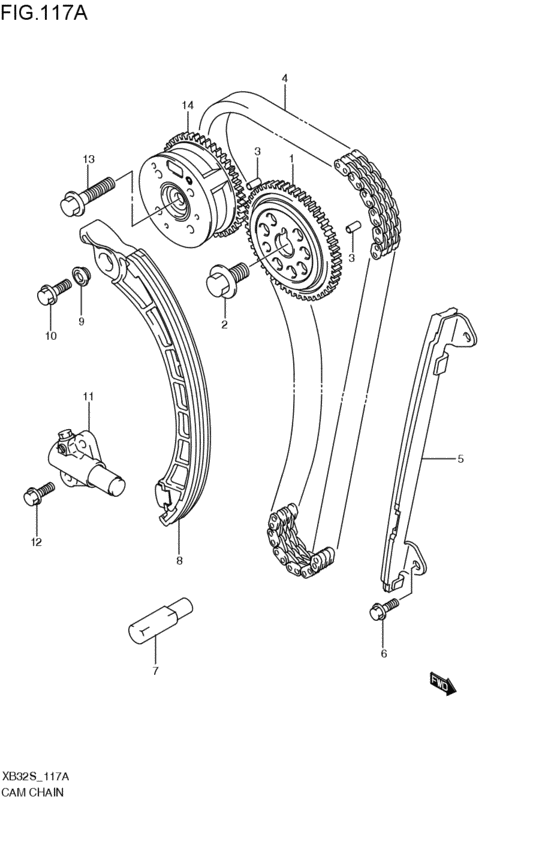

cam chain (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12742-51K00-000 SPROCKET,CAMSHAFT TIMING EXH2008-06-01~ |
12742-51K00-000 |
from US $24.62 |
||
|
2
|
2
12722-51K00-000 BOLT,CAMSHAFT SPROCKET2008-06-01~ |
12722-51K00-000 |
US $2.61 |
||
|
3
|
3
09206-05001-000 PIN(3.4X5X10)2008-06-01~ |
09206-05001-000 |
from US $0.92 |
||
|
4
|
4
12761-51K00-000 CHAIN,TIMING2008-06-01~ |
12761-51K00-000 |
from US $91.20 |
||
|
5
|
5
12771-51K00-000 GUIDE,TIMING CHAIN2008-06-01~ |
12771-51K00-000 |
from US $20.97 |
||
|
6
|
6
01550-0616A-000 BOLT2008-06-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
7
|
7
12781-69G00-000 JET,TIMING CHAIN2008-06-01~ |
12781-69G00-000 |
from US $7.16 |
||
|
8
|
8
12811-51K00-000
Tensioner,timing chain
2008-06-01~ |
12811-51K00-000 |
— | ||
| replacement | |||||
|
8
|
8
12811-51K01-000 TENSIONER,TIMING CHAIN2008-06-01~ |
12811-51K01-000 |
from US $65.79 |
||
|
9
|
9
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner 2008-06-01~ |
12812-73G10-000 |
from US $4.07 |
||
|
10
|
10
01550-0825A-000 BOLT2008-06-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
12831-69J00-000 ADJUSTER ASSY,TENSIONER2008-06-01~ |
12831-69J00-000 |
from US $92.75 |
||
|
12
|
12
01550-0620A-000 BOLT2008-06-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
13
|
13
11238-76G00-000 BOLT,10X352008-06-01~ |
11238-76G00-000 |
from US $1.64 |
||
|
14
|
14
12740-73KA0-000 SPROCKET ASSY,CAMSHAFT TIMING2008-06-01~ |
12740-73KA0-000 |
from US $244.98 |
||
