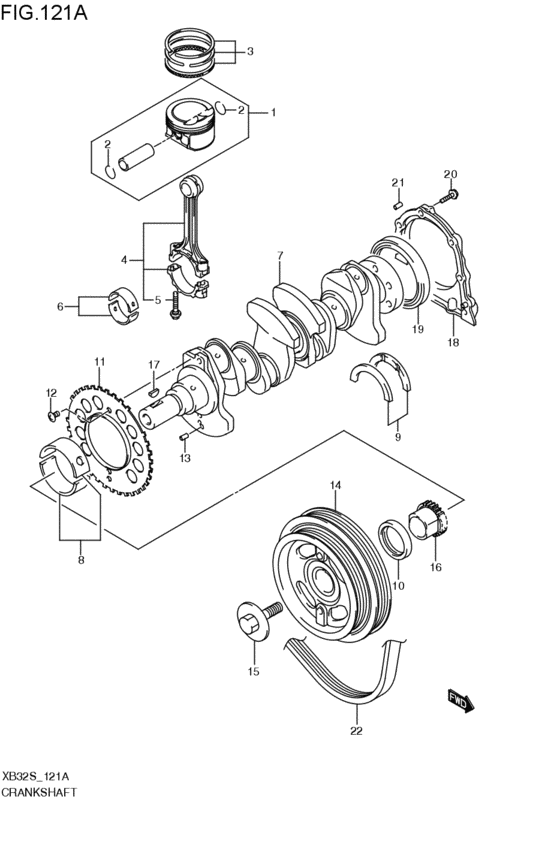

crankshaft (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-73840-000 PISTON SET2008-06-01~ |
12100-73840-000 |
from US $75.81 |
||
|
2
|
2
09381-18002-000 CIRCLIP2008-06-01~ |
09381-18002-000 |
from US $0.90 |
||
|
3
|
3
12140-51K00-000 RING SET,PISTON2008-06-01~ |
12140-51K00-000 |
from US $57.35 |
||
|
4
|
4
12160-73K00-000
Connrod assy
2008-06-01~ |
12160-73K00-000 |
— | ||
| replacement | |||||
|
4
|
4
12160-73K10-000 CONNROD ASSY2008-06-01~ |
12160-73K10-000 |
from US $68.36 |
||
|
5
|
5
12163-69J00-000 BOLT,CONNROD2008-06-01~ |
12163-69J00-000 |
US $2.08 |
||
|
6
|
6
12100-51810-0A0 BEARING SET,CONNROD GREENカラ-:グリ-ン; 2008-06-01~ |
12100-51810-0A0 |
from US $13.75 |
||
|
6
|
6
12100-51810-0B0 BEARING SET,CONNROD BLACKカラ-:ブラツク; 2008-06-01~ |
12100-51810-0B0 |
from US $13.77 |
||
|
6
|
6
12100-51810-0C0 BEARING SET,CONNROD NONカラ-:ナシ; 2008-06-01~ |
12100-51810-0C0 |
from US $13.75 |
||
|
6
|
6
12100-51810-0D0 BEARING SET,CONNROD YELLOWカラ-:イエロ-; 2008-06-01~ |
12100-51810-0D0 |
US $24 |
||
|
6
|
6
12100-51810-0E0 BEARING SET,CONNROD BLUEカラ-:ブル-; 2008-06-01~ |
12100-51810-0E0 |
US $24 |
||
|
6
|
6
12100-51810-025 BEARING SET,CONNROD RED2008-06-01~ |
12100-51810-025 |
US $24 |
||
|
7
|
7
12221-73K00-000
Crankshaft
2008-06-01~ |
12221-73K00-000 |
— | ||
| replacement | |||||
|
7
|
7
12221-73K10-000 CRANKSHAFT2008-06-01~ |
12221-73K10-000 |
US $693.44 |
||
|
8
|
8
12300-69850-0AA BEARING SET,CRANK RED/PINKカラ-:レツド/ピンク; 2008-06-01~ |
12300-69850-0AA |
from US $15.66 |
||
|
8
|
8
12300-69850-0BA BEARING SET,CRANK RED/PURPLEカラ-:レツド/パ-プル; 2008-06-01~ |
12300-69850-0BA |
from US $9.65 |
||
|
8
|
8
12300-69850-0CA BEARING SET,CRANK RED/BROWNカラ-:レツド/ブラウン; 2008-06-01~ |
12300-69850-0CA |
US $31.20 |
||
|
8
|
8
12300-75840-0AA BEARING SET,CRANK RED/GREENカラ-:レツド/グリ-ン; 2008-06-01~ |
12300-75840-0AA |
US $22.26 |
||
|
8
|
8
12300-75840-0BA BEARING SET,CRANK (RED/PINK)カラ-:レツド/ブラツク; 2008-06-01~ |
12300-75840-0BA |
US $22.26 |
||
|
8
|
8
12340-69GA0-0A0 BEARING SET,CRANKSHAFT STD (PINK)カラ-:ピンク; 2008-06-01~ |
12340-69GA0-0A0 |
from US $16.56 |
||
|
8
|
8
12340-69GA0-0B0 BEARING SET,CRANKSHAFT STD (PURPLE)カラ-:パ-プル; 2008-06-01~ |
12340-69GA0-0B0 |
from US $14.99 |
||
|
8
|
8
12340-69GA0-0C0 BEARING SET,CRANKSHAFT STD (BROWN)カラ-:ブラウン; 2008-06-01~ |
12340-69GA0-0C0 |
US $16.56 |
||
|
8
|
8
12340-75FA0-0A0 BEARING SET,CRANKSHAFT STD (GREEN)カラ-:グリ-ン; 2008-06-01~ |
12340-75FA0-0A0 |
US $24.80 |
||
|
8
|
8
12340-75FA0-0B0 BEARING SET,CRANKSHAFT STD (BLACK)カラ-:ブラツク; 2008-06-01~ |
12340-75FA0-0B0 |
from US $15.44 |
||
|
9
|
9
12300-82820-000
Bearing set, crank thrust (STD)
2008-06-01~ |
12300-82820-000 |
— | ||
| replacement | |||||
|
9
|
9
12300-60840-000 BEARING SET,CRANK THRUST (STD)2008-06-01~ |
12300-60840-000 |
from US $9.70 |
||
|
9
|
9
12300-82820-012
Bearing set, crank thrust (OS:0.125)
2008-06-01~ |
12300-82820-012 |
— | ||
| replacement | |||||
|
9
|
9
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)2008-06-01~ |
12300-60840-012 |
from US $9.36 |
||
|
10
|
10
09283-41001-000
Seal,oil,41x53x6
2008-06-01~ |
09283-41001-000 |
— | ||
| replacement | |||||
|
10
|
10
09283-41003-000 SEAL,OIL(41X53X6)2008-06-01~ |
09283-41003-000 |
from US $8.75 |
||
|
11
|
11
12222-51K00-000 PLATE,SENSOR2008-06-01~ |
12222-51K00-000 |
US $7.47 |
||
|
12
|
12
12223-69G00-000 SCREW,SENSOR PLATE 6X102008-06-01~ |
12223-69G00-000 |
from US $0.75 |
||
|
13
|
13
09205-05006-000 PIN,SPRING(5X12)2008-06-01~ |
09205-05006-000 |
from US $1.73 |
||
|
14
|
14
12610-73K00-000 PULLEY,CRANKSHAFT2008-06-01~ |
12610-73K00-000 |
from US $117.39 |
||
|
15
|
15
12619-69G10-000 BOLT,CRANK PULLEY2008-06-01~ |
12619-69G10-000 |
from US $8.01 |
||
|
16
|
16
12631-54G00-000
Sprocket,crankshaft timing
2008-06-01~ |
12631-54G00-000 |
— | ||
| replacement | |||||
|
16
|
16
12631-54G11-000 SPROCKET,CRANKSHAFT TIMING2008-06-01~ |
12631-54G11-000 |
US $44 |
||
|
17
|
17
08341-31059-000 KEYKey 2008-06-01~ |
08341-31059-000 |
from US $1.49 |
||
|
18
|
18
11341-51K00-000 HOUSING,OIL SEAL2008-06-01~ |
11341-51K00-000 |
US $41.60 |
||
|
19
|
19
09283-83002-000 SEAL,OIL(83X97X7)2008-06-01~ |
09283-83002-000 |
from US $16.85 |
||
|
20
|
20
09103-06282-000 BOLT(6X25)Bolt, shift cam (6x25) 2008-06-01~ |
09103-06282-000 |
from US $3.42 |
||
|
21
|
21
09206-06005-000 PIN(4X6X11)2008-06-01~ |
09206-06005-000 |
from US $1.04 |
||
|
22
|
22
17521-73K10-000 BELT,WATER PUMP 5PK8972008-06-01~ |
17521-73K10-000 |
from US $10.35 |
||
