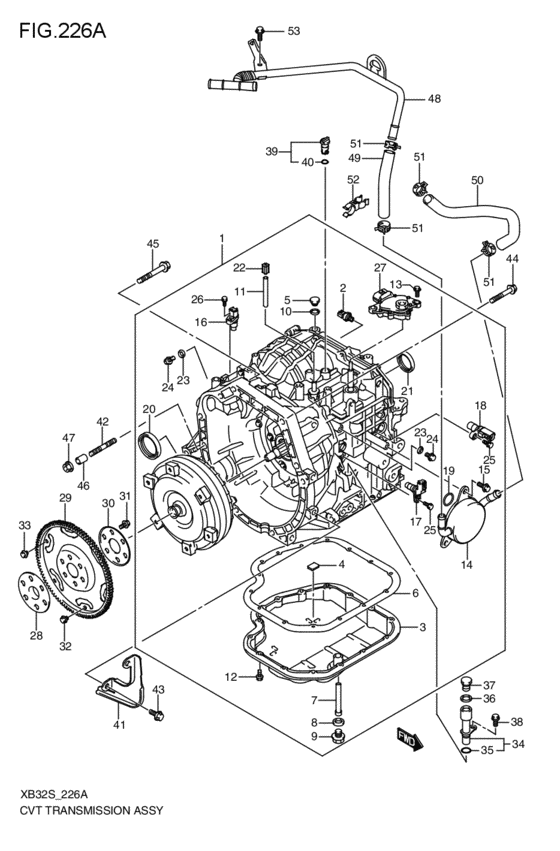

cvt - transmission assy (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-73KR1-000
Transmission assy,cvt
2008-06-01~ |
21000-73KR1-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-73KR2-000 T/M ASSY,CVT2008-06-01~ |
21000-73KR2-000 |
US $10,326.88 |
||
|
1
|
1
21000-73KR1-111
トランスミッションアッシ,CVT
リビルト; 2008-06-01~ |
21000-73KR1-111 |
— | ||
| replacement | |||||
|
1
|
1
21000-73KR2-111
New Genuine Part
リビルト; 2008-06-01~ |
21000-73KR2-111 |
— | ||
|
2
|
2
21251-73KR0-000 SENSOR,OIL PRESSURE2008-06-01~ |
21251-73KR0-000 |
US $112.80 |
||
|
3
|
3
24741-73KR1-000 PAN SUB ASSY,OIL2008-06-01~ |
24741-73KR1-000 |
US $106.72 |
||
|
4
|
4
24745-59J00-000 MAGNET,OIL CLEANER2008-06-01~ |
24745-59J00-000 |
US $2.13 |
||
|
5
|
5
24745-73KR0-000
プラグ,ストレートスクリュ
2008-06-01~ |
24745-73KR0-000 |
— | ||
|
6
|
6
24785-73KR0-000 GASKET,OIL PAN2008-06-01~ |
24785-73KR0-000 |
from US $29.50 |
||
|
7
|
7
24786-73KR0-000 チューブ,オイルパン2008-06-01~ |
24786-73KR0-000 |
US $24.29 |
||
|
8
|
8
24787-73KR0-000 GASKET2008-06-01~ |
24787-73KR0-000 |
US $4.60 |
||
|
9
|
9
24823-73KR0-000 PLUG,STRAIGHT SCREW2008-06-01~ |
24823-73KR0-000 |
US $4.05 |
||
|
10
|
10
24824-60G10-000 GASKET,DRAIN PLUG2008-06-01~ |
24824-60G10-000 |
from US $2.56 |
||
|
11
|
11
24856-79C10-000 HOSE,T/M BREATHER2008-06-01~ |
24856-79C10-000 |
US $8.48 |
||
|
12
|
12
24882-79C10-000 BOLT,T/M OIL PAN2008-06-01~ |
24882-79C10-000 |
US $1.52 |
||
|
13
|
13
24896-79C10-000 BOLT,SHIFT SWITCH2008-06-01~ |
24896-79C10-000 |
US $1.73 |
||
|
14
|
14
24921-73KR0-000
クーラアッシ,オイル
2008-06-01~ |
24921-73KR0-000 |
— | ||
| replacements | |||||
|
14
|
14
24921-73KR1-000 COOLER,T/M OIL2008-06-01~ |
24921-73KR1-000 |
US $320.16 |
||
|
14
|
14
26922-73KR1-000 O-RING2008-06-01~ |
26922-73KR1-000 |
US $5.92 |
||
|
15
|
15
26135-73KR0-000 BOLT,FLANGE2008-06-01~ |
26135-73KR0-000 |
US $2.13 |
||
|
16
|
16
26143-73KR0-000 SENSOR,REVOLUTION2008-06-01~ |
26143-73KR0-000 |
US $110.40 |
||
|
17
|
17
26144-73KR0-000 SENSOR,REVOLUTION2008-06-01~ |
26144-73KR0-000 |
US $110.40 |
||
|
18
|
18
26145-73KR0-000 SENSOR,REVOLUTION2008-06-01~ |
26145-73KR0-000 |
US $110.40 |
||
|
19
|
19
26922-73KR0-000
Oリング
2008-06-01~ |
26922-73KR0-000 |
— | ||
| replacement | |||||
|
19
|
19
26922-73KR1-000 O-RING2008-06-01~ |
26922-73KR1-000 |
US $5.92 |
||
|
20
|
20
27431-73KR0-000 SEAL,OIL2008-06-01~ |
27431-73KR0-000 |
from US $16.78 |
||
|
21
|
21
27432-73KR0-000 SEAL,OIL2008-06-01~ |
27432-73KR0-000 |
from US $18.07 |
||
|
22
|
22
27991-65D01-000 PLUG,BREATHER2008-06-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
23
|
23
29738-57B00-000 O-RING2008-06-01~ |
29738-57B00-000 |
US $2.40 |
||
|
24
|
24
29849-57B00-000 PLUG,T/M CASE2008-06-01~ |
29849-57B00-000 |
US $5.89 |
||
|
25
|
25
29989-57B00-000 Bolt2008-06-01~ |
29989-57B00-000 |
US $5.59 |
||
|
26
|
26
29989-73KR0-000
ボルト
2008-06-01~ |
29989-73KR0-000 |
— | ||
| replacement | |||||
|
26
|
26
29989-73KR1-000
New Genuine Part
2008-06-01~ |
29989-73KR1-000 |
— | ||
|
27
|
27
37720-73KR0-000 SWITCH ASSY,NEUTRAL2008-06-01~ |
37720-73KR0-000 |
US $230 |
||
|
28
|
28
22611-73KR0-000
Flange,t/c drive plate front
2008-06-01~ |
22611-73KR0-000 |
— | ||
| replacement | |||||
|
28
|
28
22611-70LR0-000 FLANGE,T/C DRIVE PLATE FRONT2008-06-01~ |
22611-70LR0-000 |
US $37.54 |
||
|
29
|
29
22620-73KR0-000
Plate comp,t/c drive
2008-06-01~ |
22620-73KR0-000 |
— | ||
| replacement | |||||
|
29
|
29
22620-73KR1-000 PLATE,T/C DRIVE2008-06-01~ |
22620-73KR1-000 |
from US $118.15 |
||
|
30
|
30
22631-82J10-000 PLATE,TC DRIVE REAR2008-06-01~ |
22631-82J10-000 |
US $8.50 |
||
|
31
|
31
09103-10305-000 BOLT(10X18.5)2008-06-01~ |
09103-10305-000 |
US $22.40 |
||
| replacement | |||||
|
31
|
31
09100-10275-000 BOLT(10X18.5)2008-06-01~ |
09100-10275-000 |
US $1.44 |
||
|
32
|
32
09103-08516-000 BOLT(8X9.5)2008-06-01~ |
09103-08516-000 |
from US $1.12 |
||
|
33
|
33
09103-08517-000 BOLT(8X9.5)2008-06-01~ |
09103-08517-000 |
from US $3.65 |
||
|
34
|
34
24770-73KR1-000
Tube assy,oil check
2008-06-01~ |
24770-73KR1-000 |
— | ||
| replacement | |||||
|
34
|
34
24770-73KR2-000 TUBE ASSY,OIL CHECK2008-06-01~ |
24770-73KR2-000 |
US $25.02 |
||
|
35
|
35
09280-09008-000 O RING(D:2.1,ID:8.8)O ring (d:2.1,id:8.8) 2008-06-01~ |
09280-09008-000 |
from US $1.49 |
||
|
36
|
36
09168-14011-000 GASKET(14X20X1.5)2008-06-01~ |
09168-14011-000 |
from US $0.72 |
||
|
37
|
37
09247-14029-000 PLUG2008-06-01~ |
09247-14029-000 |
from US $1.24 |
||
|
38
|
38
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
39
|
39
24721-73KR0-000 PLUG ASSY,T/M OIL FILLER2008-06-01~ |
24721-73KR0-000 |
US $2.65 |
||
|
40
|
40
09280-10016-000 O RING(D:1.9,ID:9.8)O ring 2008-06-01~ |
09280-10016-000 |
from US $1.52 |
||
|
41
|
41
24788-73KR0-000 GUARD,T/M OIL PAN2008-06-01~ |
24788-73KR0-000 |
US $14.76 |
||
|
42
|
42
01421-1045A-000 BOLT,STUD2008-06-01~ |
01421-1045A-000 |
US $16.20 |
||
|
43
|
43
01550-1025A-000 BOLTBolt, drive gear 2008-06-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
44
|
44
01550-1040A-000 BOLT2008-06-01~ |
01550-1040A-000 |
from US $1.12 |
||
|
45
|
45
01550-1050A-000 BOLTBolt, exhaust tube 2008-06-01~ |
01550-1050A-000 |
from US $1.28 |
||
|
46
|
46
04211-13149-000 PIN2008-06-01~ |
04211-13149-000 |
from US $1.28 |
||
|
47
|
47
08316-1010A-000 NUTNut, kick starter 2008-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
48
|
48
22911-73KR0-000 Pipe, Oil cooler inlet2008-06-01~ |
22911-73KR0-000 |
US $57.41 |
||
|
49
|
49
22931-73KS0-000
ホース,オイルクーラインレット
2008-06-01~ |
22931-73KS0-000 |
— | ||
|
50
|
50
22932-73KS0-000 HOSE,OIL COOLER OUTLET2008-06-01~ |
22932-73KS0-000 |
US $13.32 |
||
|
51
|
51
09401-18403-000 CLIPClip, heater hose 2008-06-01~ |
09401-18403-000 |
US $1.92 |
||
|
52
|
52
09408-00166-000 CLAMP2008-06-01~ |
09408-00166-000 |
US $33.50 |
||
|
53
|
53
01550-0816A-000 BOLTBolt, rear 2008-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
