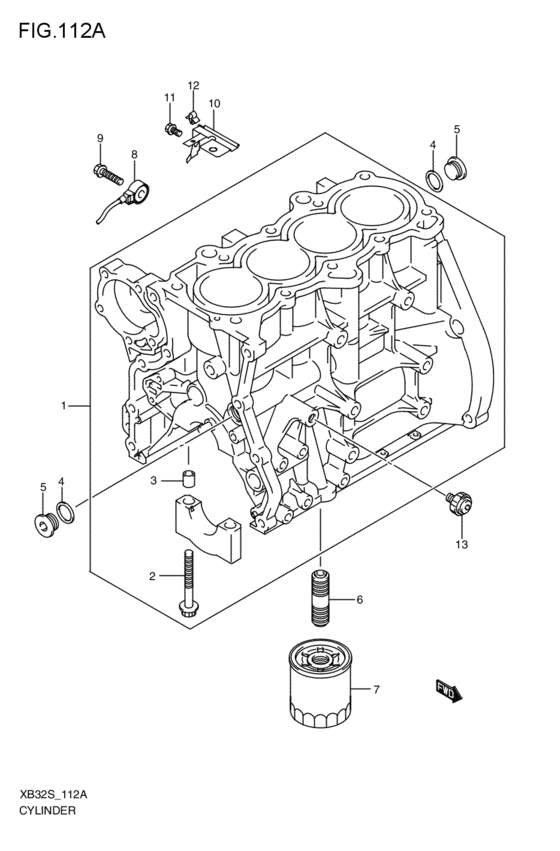

Cylinder (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-73K00-000
Block assy,cylinder
2008-06-01~ |
11200-73K00-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-73K10-000
Block assy,cylinder
2008-06-01~ |
11200-73K10-000 |
— | ||
|
2
|
2
11261-69J00-000
Bolt,crank bearing cap
2008-06-01~ |
11261-69J00-000 |
— | ||
| replacement | |||||
|
2
|
2
11261-69J01-000 BOLT,CRANK BEARING CAP2008-06-01~ |
11261-69J01-000 |
US $2.61 |
||
|
3
|
3
04211-13189-000 PIN2008-06-01~ |
04211-13189-000 |
from US $1.19 |
||
|
4
|
4
11216-77E00-000 GASKET,M18 PLUG2008-06-01~ |
11216-77E00-000 |
from US $1.74 |
||
|
5
|
5
09248-18011-000 PLUG(18X8)Plug, oil gallery 2008-06-01~ |
09248-18011-000 |
from US $2.88 |
||
|
6
|
6
11241-69G01-000
Stand,oil filter
2008-06-01~ |
11241-69G01-000 |
— | ||
| replacement | |||||
|
6
|
6
11241-69G02-000 STAND,OIL FILTER2008-06-01~ |
11241-69G02-000 |
from US $8.37 |
||
|
7
|
7
16510-81403-000
Oil Filter
DENSO; 2008-06-01~ |
16510-81403-000 |
— | ||
| replacements | |||||
|
7
|
7
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil DENSO; 2008-06-01~ |
16510-82703-000 |
from US $13.41 |
||
|
7
|
7
16510-81404-000
Oil Filter
DENSO; 2008-06-01~ |
16510-81404-000 |
— | ||
|
7
|
7
16510-81420-000 フィルタアッシ,オイル(MAHLE)MAHLE; 2008-06-01~ |
16510-81420-000 |
US $338.40 |
||
| replacement | |||||
|
7
|
7
16510-82703-000 FILTER ASSY,OIL TOKYO ROKIFilter, oil MAHLE; 2008-06-01~ |
16510-82703-000 |
from US $13.41 |
||
|
8
|
8
18640-73KA0-000 SENSOR ASSY,KNOCK2008-06-01~ |
18640-73KA0-000 |
US $156.77 |
||
|
9
|
9
01550-0835A-000 BOLT2008-06-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
10
|
10
18645-73KA0-000
BRACKET,KNOCK SENSOR
2008-06-01~ |
18645-73KA0-000 |
— | ||
|
11
|
11
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
09403-06412-000 CLAMP2008-06-01~ |
09403-06412-000 |
US $12.90 |
||
|
13
|
13
37820-80G01-000
Switch assy,oil press
2008-06-01~ |
37820-80G01-000 |
— | ||
| replacement | |||||
|
13
|
13
37820-80GP0-000 SWITCH ASSY,OIL PRESSURE2008-06-01~ |
37820-80GP0-000 |
from US $11.18 |
||
