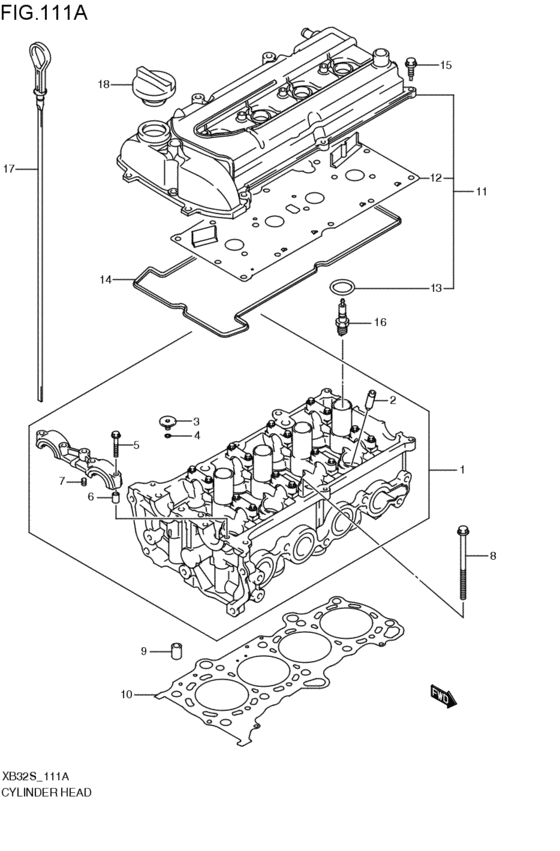

Cylinder head (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-73KA0-000
ヘッドアッシ,シリンダ
2008-06-01~ |
11100-73KA0-000 |
— | ||
|
2
|
2
11115-77G00-001 GUIDE,VALVE2008-06-01~ |
11115-77G00-001 |
US $21.28 |
||
|
3
|
3
09248-18011-000 PLUG(18X8)Plug, oil gallery 2008-06-01~ |
09248-18011-000 |
from US $2.88 |
||
|
4
|
4
11216-77E00-000 GASKET,M18 PLUG2008-06-01~ |
11216-77E00-000 |
from US $1.74 |
||
|
5
|
5
11128-69G01-000 BOLT,CAMSHAFT HOUSING 6X392008-06-01~ |
11128-69G01-000 |
US $1.60 |
||
|
6
|
6
09206-08001-000 PIN(8X11)2008-06-01~ |
09206-08001-000 |
from US $1.06 |
||
|
7
|
7
11112-53A00-000 PLUG,OIL VENTURI2008-06-01~ |
11112-53A00-000 |
from US $2.24 |
||
|
8
|
8
11117-69J00-000 BOLT,CYLINDER HEAD2008-06-01~ |
11117-69J00-000 |
from US $4.16 |
||
|
9
|
9
09206-13020-000 PIN(10.4X13X18)2008-06-01~ |
09206-13020-000 |
from US $1.22 |
||
|
10
|
10
11141-73K00-000 Gasket,cylinder head2008-06-01~ |
11141-73K00-000 |
US $97.28 |
||
| replacement | |||||
|
10
|
10
11141-73K01-000 GASKET,CYL HEAD2008-06-01~ |
11141-73K01-000 |
from US $54.63 |
||
|
11
|
11
11170-73K01-000 Cover,cylinder head2008-06-01~ |
11170-73K01-000 |
US $329.36 |
||
|
12
|
12
11172-73K00-000 PLATE,BREATHER2008-06-01~ |
11172-73K00-000 |
US $17.81 |
||
|
13
|
13
11179-79F01-000 O-RING2008-06-01~ |
11179-79F01-000 |
from US $3.22 |
||
|
14
|
14
11189-73K00-000 GASKET,CYL HEAD COVER2008-06-01~ |
11189-73K00-000 |
from US $21.20 |
||
|
15
|
15
01550-0625A-000 BOLTBolt 2008-06-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
16
|
16
09482-00602-000 PLUG,SPARK(DENSO ZXU20PR11)DENSO; 2008-06-01~ |
09482-00602-000 |
from US $12.11 |
||
|
16
|
16
09482-00603-000 PLUG,SPARK(NGK IKR6G11)NGK; 2008-06-01~ |
09482-00603-000 |
US $27.20 |
||
|
17
|
17
16910-51K00-000
Gauge comp,oil level
2008-06-01~ |
16910-51K00-000 |
— | ||
| replacement | |||||
|
17
|
17
16910-51K01-000 GAUGE COMP,OIL LEVEL2008-06-01~ |
16910-51K01-000 |
from US $11.50 |
||
|
18
|
18
16920-83G10-000
Cap comp,oil filler
2008-06-01~ |
16920-83G10-000 |
— | ||
| replacements | |||||
|
18
|
18
16920-83G00-000
Cap,oil filler
2008-06-01~ |
16920-83G00-000 |
— | ||
|
18
|
18
16920-83G01-000
CAP OIL FILLER
2008-06-01~ |
16920-83G01-000 |
— | ||
