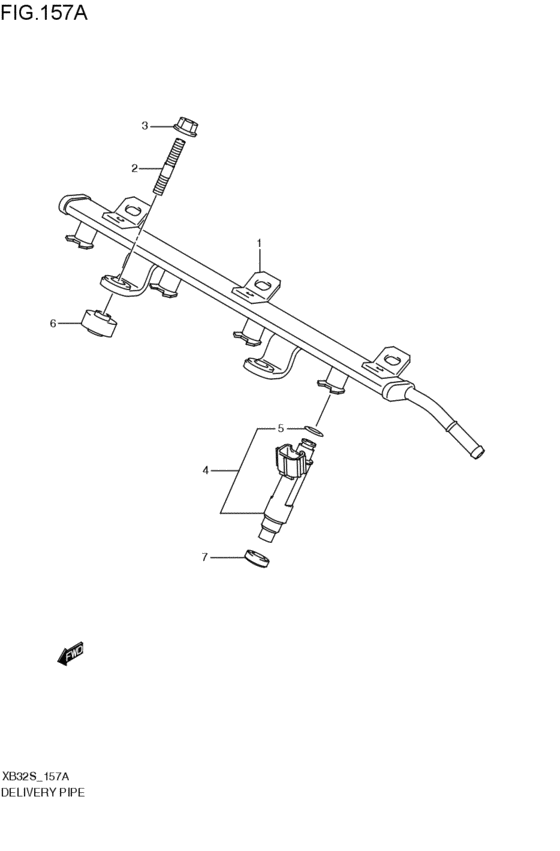

delivery pipe / fuel injector (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15730-73K00-000 PIPE,FUEL DELIVERY2008-06-01~ |
15730-73K00-000 |
US $81.33 |
||
|
2
|
2
01421-0830A-000 BOLT,STUD2008-06-01~ |
01421-0830A-000 |
from US $1.44 |
||
|
3
|
3
08316-1008A-000 NUTNut, idle gear shaft 2008-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
15710-73KA0-000 INJECTOR ASSY,FUEL2008-06-01~ |
15710-73KA0-000 |
US $176.27 |
||
|
5
|
5
15710-09300-000 O-RING2008-06-01~ |
15710-09300-000 |
from US $1.60 |
||
|
6
|
6
15735-86G00-000 INSULATOR,DELIVERY PIPE2008-06-01~ |
15735-86G00-000 |
US $5.12 |
||
|
7
|
7
09320-08062-000 CUSHION2008-06-01~ |
09320-08062-000 |
from US $4.32 |
