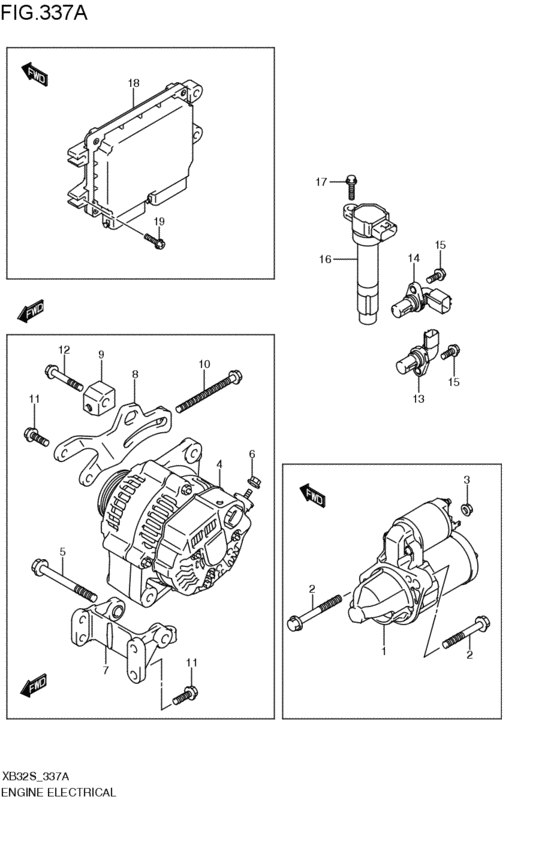

engine electrical (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-51K00-000
Motor assy, starting
2008-06-01~ |
31100-51K00-000 |
— | ||
|
2
|
2
01550-1060A-000 Bolt2008-06-01~ |
01550-1060A-000 |
from US $1.60 |
||
|
3
|
3
08316-1008A-000 NUTNut, idle gear shaft 2008-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
31400-80J00-000
Generator assy
2008-06-01~ |
31400-80J00-000 |
— | ||
| replacements | |||||
|
4
|
4
31400-80J01-000
GENERATOR ASSY
2008-06-01~ |
31400-80J01-000 |
— | ||
|
4
|
4
31400-80J02-000
Generator Assy
2008-06-01~ |
31400-80J02-000 |
— | ||
|
4
|
4
31400-80J03-000 Generator Assy2008-06-01~ |
31400-80J03-000 |
from US $587.68 |
||
|
5
|
5
01550-1085A-000 BOLT2008-06-01~ |
01550-1085A-000 |
US $1.76 |
||
|
6
|
6
08316-1006A-000 NUT2008-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
7
|
7
11550-51K00-000 BRACKET,GENERATOR2008-06-01~ |
11550-51K00-000 |
US $46.37 |
||
|
8
|
8
11561-51K00-000 ARM,GENERATOR BELT ADJUST2008-06-01~ |
11561-51K00-000 |
US $15.27 |
||
|
9
|
9
11562-77A01-000 ADJUSTER,GEN BELT2008-06-01~ |
11562-77A01-000 |
US $10.82 |
||
|
10
|
10
11563-77A01-000 BOLT,GEN BELT ADJ2008-06-01~ |
11563-77A01-000 |
US $2.24 |
||
|
11
|
11
01550-0825A-000 BOLT2008-06-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
12
|
12
01550-0850A-000 Bolt2008-06-01~ |
01550-0850A-000 |
from US $5 |
||
|
13
|
13
33220-51K00-000
SENSOR ASSY,POSITION
2008-06-01~ |
33220-51K00-000 |
— | ||
| replacement | |||||
|
13
|
13
33220-50M00-000 SENSOR ASSY,POSITION2008-06-01~ |
33220-50M00-000 |
from US $95.63 |
||
|
14
|
14
33220-58J20-000
SENSOR ASSY,POSITION
2008-06-01~ |
33220-58J20-000 |
— | ||
| replacement | |||||
|
14
|
14
33220-64L10-000 SENSOR ASSY,POSITION2008-06-01~ |
33220-64L10-000 |
from US $67.65 |
||
|
15
|
15
09103-06283-000 BOLT(6X16)2008-06-01~ |
09103-06283-000 |
from US $4.37 |
||
|
16
|
16
33400-51K10-000
COIL ASSY,IGNITION
2008-06-01~ |
33400-51K10-000 |
— | ||
| replacement | |||||
|
16
|
16
33400-51K80-000
IGNITION COIL AZG412 AKK416
2008-06-01~ |
33400-51K80-000 |
— | ||
|
17
|
17
09135-06024-000 BOLT(6X23)2008-06-01~ |
09135-06024-000 |
US $12.50 |
||
|
18
|
18
33920-51K30-000
コントローラアッシ,インジェクション/エアコン
2008-06-01~ |
33920-51K30-000 |
— | ||
| replacement | |||||
|
18
|
18
33920-51K32-000 CONTROLLER ASSY,EPI-A/C2008-06-01~ |
33920-51K32-000 |
US $1,740.64 |
||
|
19
|
19
02162-0625A-000 SCREW2008-06-01~ |
02162-0625A-000 |
from US $0.76 |
||
