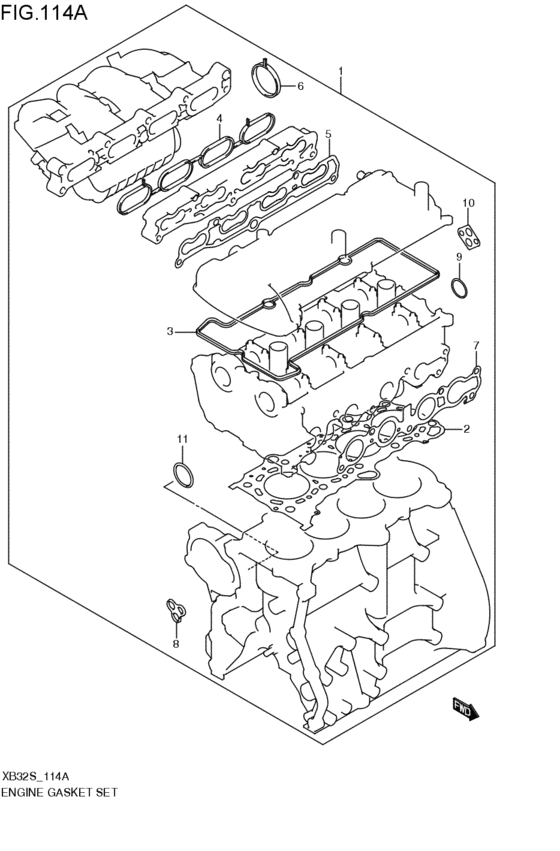

engine gasket set (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11402-73841-000
ガスケットセット,エンジン
2008-06-01~ |
11402-73841-000 |
— | ||
| replacement | |||||
|
1
|
1
11402-73842-000 GASKET SET,ENGINE2008-06-01~ |
11402-73842-000 |
US $138 |
||
|
2
|
2
11141-73K00-000 Gasket,cylinder head2008-06-01~ |
11141-73K00-000 |
US $97.28 |
||
| replacement | |||||
|
2
|
2
11141-73K01-000 GASKET,CYL HEAD2008-06-01~ |
11141-73K01-000 |
from US $54.63 |
||
|
3
|
3
11189-73K00-000 GASKET,CYL HEAD COVER2008-06-01~ |
11189-73K00-000 |
from US $21.20 |
||
|
4
|
4
13118-73K00-000 GASKET,INTK MANF2008-06-01~ |
13118-73K00-000 |
from US $13.25 |
||
|
5
|
5
13119-73K00-000 GASKET,INTK MANF2008-06-01~ |
13119-73K00-000 |
US $9.02 |
||
|
6
|
6
13421-73K00-000 GASKET,THROTTLE BODY2008-06-01~ |
13421-73K00-000 |
from US $6.05 |
||
|
7
|
7
14140-73K01-000 GASKET,EXH MANF2008-06-01~ |
14140-73K01-000 |
US $18.95 |
||
|
8
|
8
16118-51KA0-000 O-RING,OIL CONTROL VALVE2008-06-01~ |
16118-51KA0-000 |
US $10.40 |
||
|
9
|
9
17675-73K00-000 GASKET,WATER THERMOSTAT2008-06-01~ |
17675-73K00-000 |
from US $4.14 |
||
|
10
|
10
18529-77E01-000 GASKET,EGR VALVE2008-06-01~ |
18529-77E01-000 |
from US $2.39 |
||
|
11
|
11
09280-28008-000 O RING(D:3.5,ID:27.7)2008-06-01~ |
09280-28008-000 |
from US $0.63 |
||
