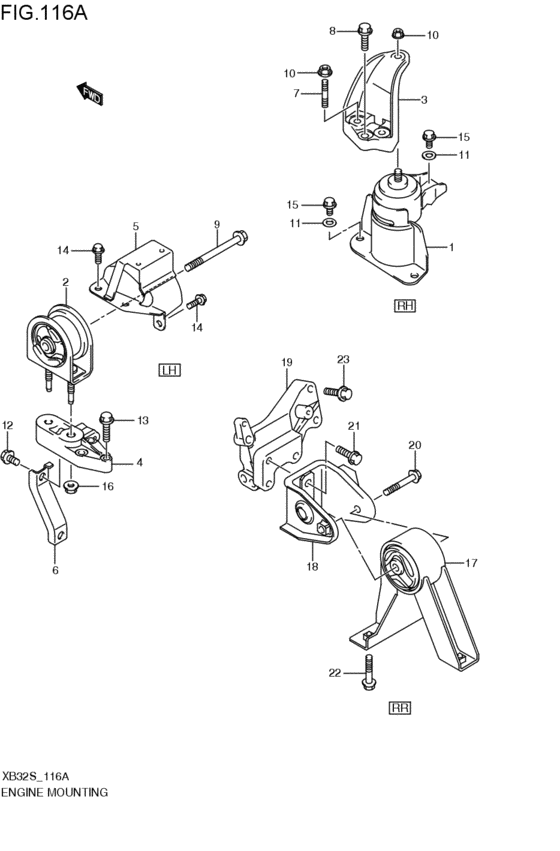

engine mounting (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-73KA0-000 Mounting, eng rh2008-06-01~ |
11610-73KA0-000 |
US $307.20 |
||
|
2
|
2
11620-73KA0-000 MOUNTING,ENG,L2008-06-01~ |
11620-73KA0-000 |
US $140.80 |
||
|
3
|
3
11641-73K00-000 BRACKET,ENG MTG,R2008-06-01~ |
11641-73K00-000 |
US $62.93 |
||
|
4
|
4
11651-73K00-000 BRACKET,ENG MTG,L2008-06-01~ |
11651-73K00-000 |
US $148 |
||
|
5
|
5
11671-73KA0-000 BRACKET,ENG MTG BODY,L2008-06-01~ |
11671-73KA0-000 |
US $94.40 |
||
|
6
|
6
11681-73K00-000
スチフナ,エンジンレフトマウンチングブラケット
2008-06-01~ |
11681-73K00-000 |
— | ||
|
7
|
7
09108-10154-000 BOLT,STUD2008-06-01~ |
09108-10154-000 |
US $24.30 |
||
|
8
|
8
01551-1040A-000 Bolt2008-06-01~ |
01551-1040A-000 |
US $19.50 |
||
|
9
|
9
09113-12001-000 BOLT(12X150)2008-06-01~ |
09113-12001-000 |
from US $5.28 |
||
|
10
|
10
09159-10115-000 NUT2008-06-01~ |
09159-10115-000 |
from US $2.58 |
||
|
11
|
11
09160-10143-000 WASHER(10.5X22X1.6)2008-06-01~ |
09160-10143-000 |
from US $0.91 |
||
|
12
|
12
01550-1025A-000 BOLTBolt, drive gear 2008-06-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
13
|
13
01550-1045A-000 Bolt2008-06-01~ |
01550-1045A-000 |
US $19.50 |
||
|
14
|
14
01551-0825A-000 BOLT2008-06-01~ |
01551-0825A-000 |
from US $1.12 |
||
|
15
|
15
01551-1025A-000 Bolt2008-06-01~ |
01551-1025A-000 |
US $1.12 |
||
|
16
|
16
08316-1010A-000 NUTNut, kick starter 2008-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
17
|
17
11710-73KB0-000 MOUNTING,ENG RR2008-06-01~ |
11710-73KB0-000 |
US $118.50 |
||
|
18
|
18
11740-73K00-000 BRACKET,ENG RR MTG2008-06-01~ |
11740-73K00-000 |
US $92.80 |
||
|
19
|
19
11749-73KA0-000 BRACKET,ENG RR MTG2008-06-01~ |
11749-73KA0-000 |
US $256 |
||
|
20
|
20
09103-10337-000 BOLT(10X85)2008-06-01~ |
09103-10337-000 |
from US $2.90 |
||
|
21
|
21
09103-10342-000 BOLT(10X32)2008-06-01~ |
09103-10342-000 |
from US $6.14 |
||
|
22
|
22
09113-10004-000 BOLT(10X85)2008-06-01~ |
09113-10004-000 |
US $21.70 |
||
|
23
|
23
01550-1050A-000 BOLTBolt, exhaust tube 2008-06-01~ |
01550-1050A-000 |
from US $1.28 |
