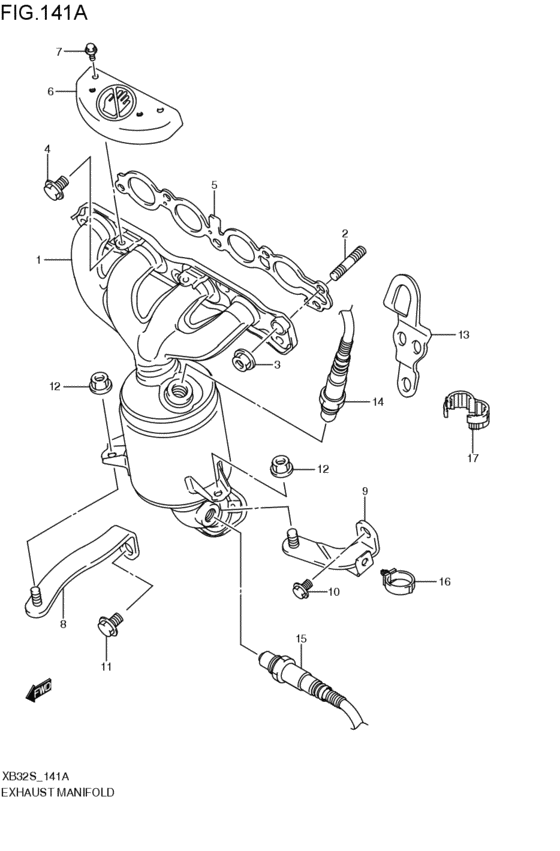

exhaust manifold (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-73KB0-000
マニホールド,エキゾースト
2008-06-01~ |
14110-73KB0-000 |
— | ||
|
2
|
2
14118-63J00-000 STUD BOLT,EXH MANF2008-06-01~ |
14118-63J00-000 |
from US $1.22 |
||
|
3
|
3
08316-1010A-000 NUTNut, kick starter 2008-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
4
|
4
01550-1020A-000 BOLTBolt, bal sprocket 2008-06-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
5
|
5
14140-73K01-000 GASKET,EXH MANF2008-06-01~ |
14140-73K01-000 |
US $18.95 |
||
|
6
|
6
14121-73KA0-000 PLATE,CAUTION2008-06-01~ |
14121-73KA0-000 |
US $11.08 |
||
|
7
|
7
09103-06168-000 BOLT(6X10)2008-06-01~ |
09103-06168-000 |
from US $1.01 |
||
|
8
|
8
14271-73K00-000
Stiffener,exh manf
2008-06-01~ |
14271-73K00-000 |
— | ||
|
9
|
9
14272-73KA0-000
Stiffener, exh manf no.2
2008-06-01~ |
14272-73KA0-000 |
— | ||
|
10
|
10
01550-0820A-000 BOLTBolt, funnel bracket 2008-06-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
11
|
11
01550-1020A-000 BOLTBolt, bal sprocket 2008-06-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
12
|
12
08316-1008A-000 NUTNut, idle gear shaft 2008-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
13
|
13
11851-73K00-000 HOOK,ENGINE2008-06-01~ |
11851-73K00-000 |
US $8.54 |
||
|
14
|
14
18213-73KA0-000
SENSOR,A/F
2008-06-01~ |
18213-73KA0-000 |
— | ||
| replacement | |||||
|
14
|
14
18213-73KA1-000 SENSOR,A/F2008-06-01~ |
18213-73KA1-000 |
US $329.36 |
||
|
15
|
15
18213-73KB0-000 SENSOR,OXYGEN RR2008-06-01~ |
18213-73KB0-000 |
US $285.20 |
||
|
16
|
16
09403-12404-000 CLAMP2008-06-01~ |
09403-12404-000 |
US $9.20 |
||
|
17
|
17
09408-00258-000 CLAMP2008-06-01~ |
09408-00258-000 |
from US $2.75 |
||
