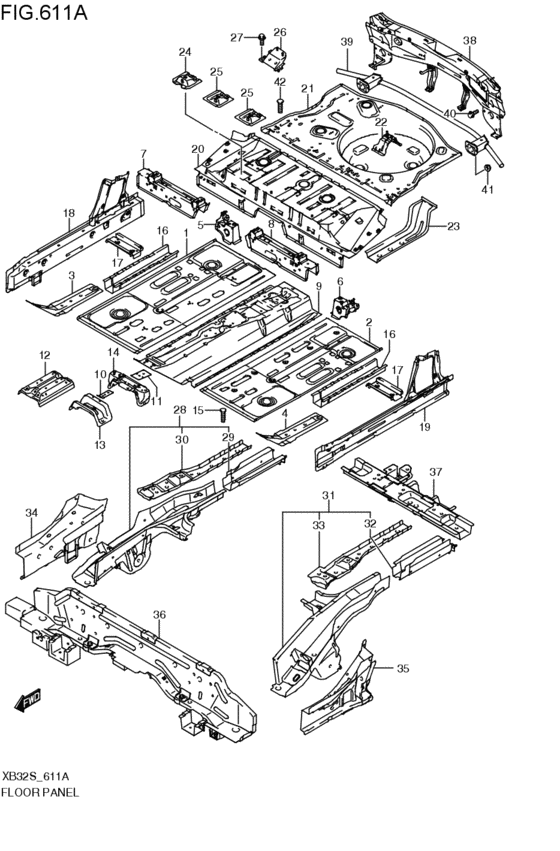

floor panel (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61111-51K00-000
PAN,MAIN FLOOR,R
2008-06-01~ |
61111-51K00-000 |
— | ||
|
2
|
2
61161-51K00-000
PAN,MAIN FLOOR,L
2008-06-01~ |
61161-51K00-000 |
— | ||
|
3
|
3
61112-51K00-000
REINFORCEMENT,MAIN FL,R
2008-06-01~ |
61112-51K00-000 |
— | ||
|
4
|
4
61162-51K00-000
REINFORCEMENT,MAIN FL,L
2008-06-01~ |
61162-51K00-000 |
— | ||
|
5
|
5
61120-51K00-000
BRACKET,FR SEAT RR OUT,R
2008-06-01~ |
61120-51K00-000 |
— | ||
|
6
|
6
61170-51K00-000
BRACKET,FR SEAT RR OUT,L
2008-06-01~ |
61170-51K00-000 |
— | ||
|
7
|
7
61130-51K00-000
Crossmember, flr pan upr rh
2008-06-01~ |
61130-51K00-000 |
— | ||
|
8
|
8
61180-51K00-000
Crossmember, flr pan upr lh
2008-06-01~ |
61180-51K00-000 |
— | ||
|
9
|
9
61211-51K00-000
TUNNEL,MAIN FLOOR
2008-06-01~ |
61211-51K00-000 |
— | ||
|
10
|
10
61212-63J00-000
REINFORCEMENT,PARKING LEVER
2008-06-01~ |
61212-63J00-000 |
— | ||
|
11
|
11
61213-63J00-000
REINFORCEMENT,PARKING CABLE
2008-06-01~ |
61213-63J00-000 |
— | ||
|
12
|
12
61216-51K00-000
BRACKET,SHIFT LEVER
2008-06-01~ |
61216-51K00-000 |
— | ||
|
13
|
13
61221-72K00-000
BRACE,MAIN FLOOR TUNNEL
2008-06-01~ |
61221-72K00-000 |
— | ||
|
14
|
14
61230-51K00-000
BRACKET,FR SEAT RR INSIDE
2008-06-01~ |
61230-51K00-000 |
— | ||
|
15
|
15
09119-05018-000 BOLT(8X35)2008-06-01~ |
09119-05018-000 |
US $9.60 |
||
|
16
|
16
61241-51K00-000
MEMBER,FL SIDE RR
2008-06-01~ |
61241-51K00-000 |
— | ||
|
17
|
17
61242-51K00-000
クロスメンバ,フロアパンロア
2008-06-01~ |
61242-51K00-000 |
— | ||
|
18
|
18
61310-51K00-000
PANEL,SIDE SILL INNER,R
2008-06-01~ |
61310-51K00-000 |
— | ||
|
19
|
19
61320-51K00-000
PANEL,SIDE SILL INNER,L
2008-06-01~ |
61320-51K00-000 |
— | ||
|
20
|
20
61511-62J00-000
PANEL,REAR FLOOR FR
2008-06-01~ |
61511-62J00-000 |
— | ||
|
21
|
21
61512-51K00-000 PANEL,REAR FLOOR RR2008-06-01~ |
61512-51K00-000 |
US $338.56 |
||
|
22
|
22
61513-63J00-000
BRACKET,SPARE TIRE
2008-06-01~ |
61513-63J00-000 |
— | ||
|
23
|
23
61550-63J00-000 HOOK,TOWING RR2008-06-01~ |
61550-63J00-000 |
US $91.63 |
||
|
24
|
24
61514-51K00-000
BRACKET,RR SEAT,R
2008-06-01~ |
61514-51K00-000 |
— | ||
|
25
|
25
61515-51K00-000
BRACKET,RR SEAT,L
2008-06-01~ |
61515-51K00-000 |
— | ||
|
26
|
26
61541-51K00-000 BRACKET,RR SEAT RR CTR2008-06-01~ |
61541-51K00-000 |
US $41.58 |
||
|
27
|
27
01551-1020A-000 Bolt2008-06-01~ |
01551-1020A-000 |
US $17.30 |
||
|
28
|
28
62100-51K00-000
MEMBER,RR FL SIDE,R
2008-06-01~ |
62100-51K00-000 |
— | ||
|
29
|
29
62112-51K00-000
MEMBER,RR FL SIDE RR,R
2008-06-01~ |
62112-51K00-000 |
— | ||
|
30
|
30
62127-51K00-000
REINFORCEMENT,RR FL SIDE RR,R
2008-06-01~ |
62127-51K00-000 |
— | ||
|
31
|
31
62300-51K00-000
MEMBER,RR FL SIDE,L
2008-06-01~ |
62300-51K00-000 |
— | ||
|
32
|
32
62312-51K00-000 MEMBER,RR FL SIDE RR,L2008-06-01~ |
62312-51K00-000 |
US $35.33 |
||
|
33
|
33
62327-51K00-000 REINF,RR FL SIDE RR,L2008-06-01~ |
62327-51K00-000 |
US $65.87 |
||
|
34
|
34
62210-51K00-000
COMPARTMENT,RR FLR SIDE,R
2008-06-01~ |
62210-51K00-000 |
— | ||
|
35
|
35
62410-51K00-000
COMPARTMENT,RR FLR SIDE,L
2008-06-01~ |
62410-51K00-000 |
— | ||
|
36
|
36
62600-62J01-000
CROSSMEMBER,RR FL FR
2008-06-01~ |
62600-62J01-000 |
— | ||
|
37
|
37
62700-51K10-000 CROSSMEMBER,RR FL CTR2008-06-01~ |
62700-51K10-000 |
US $202.40 |
||
|
38
|
38
65500-51K00-000 PANEL,BACK2008-06-01~ |
65500-51K00-000 |
US $242.88 |
||
|
39
|
39
65560-51K00-000 MEMBER,RR BUMPER2008-06-01~ |
65560-51K00-000 |
US $202.40 |
||
|
40
|
40
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
08316-1006A-000 NUT2008-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
42
|
42
09119-05018-000 BOLT(8X35)2008-06-01~ |
09119-05018-000 |
US $9.60 |
