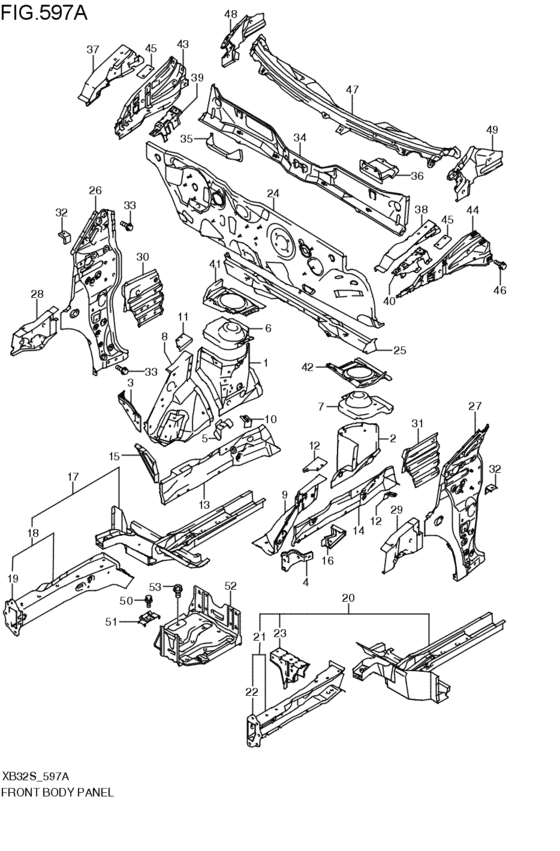

front body panel (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58311-62J10-000 PANEL,FENDER APRON,R2008-06-01~ |
58311-62J10-000 |
US $71.76 |
||
|
2
|
2
58411-62J00-000
PANEL,FENDER APRON,L
2008-06-01~ |
58411-62J00-000 |
— | ||
|
3
|
3
58312-51K00-000 BRACKET,FR FENDER LWR,R2008-06-01~ |
58312-51K00-000 |
US $13.87 |
||
|
4
|
4
58412-51K00-000 BRACKET,FR FENDER LWR,L2008-06-01~ |
58412-51K00-000 |
US $13.87 |
||
|
5
|
5
58313-63J00-000 BRACKET,ABS2008-06-01~ |
58313-63J00-000 |
US $12.81 |
||
|
6
|
6
58320-63J00-000 BRACKET,SUSPENSION UPR,R2008-06-01~ |
58320-63J00-000 |
US $79.49 |
||
|
7
|
7
58420-63J00-000 BRACKET,SUSPENSION UPR,L2008-06-01~ |
58420-63J00-000 |
US $79.49 |
||
|
8
|
8
58330-63J00-000 EXTENSION,FENDER APRON,R2008-06-01~ |
58330-63J00-000 |
US $104.88 |
||
|
9
|
9
58431-62J00-000
Extension, fender apron lh
2008-06-01~ |
58431-62J00-000 |
— | ||
|
10
|
10
58315-82000-000
BRACKET,FLEXIBLE HOSE,FR
2008-06-01~ |
58315-82000-000 |
— | ||
|
11
|
11
58333-51K00-000 BRACKET,LAMP SUPPORT MBR,R2008-06-01~ |
58333-51K00-000 |
US $4.78 |
||
|
12
|
12
58433-51K00-000 BRACKET,LAMP SUPPORT MBR,L2008-06-01~ |
58433-51K00-000 |
US $5.74 |
||
|
13
|
13
58341-51K00-000 PANEL,APRON SIDE MBR OTR,R2008-06-01~ |
58341-51K00-000 |
US $96.42 |
||
|
14
|
14
58441-51K00-000
PANEL,APRON SIDE MBR OTR,L
2008-06-01~ |
58441-51K00-000 |
— | ||
|
15
|
15
58342-63J00-000 GUSSET,FENDER APRON,R2008-06-01~ |
58342-63J00-000 |
US $23 |
||
|
16
|
16
58442-63J00-000 GUSSET,FENDER APRON,L2008-06-01~ |
58442-63J00-000 |
US $19.14 |
||
|
17
|
17
58600-51K00-000 MEMBER,APRON SIDE,R2008-06-01~ |
58600-51K00-000 |
US $329.36 |
||
|
18
|
18
58600-51810-000
MEMBER SET,APRN SIDE,R
2008-06-01~ |
58600-51810-000 |
— | ||
|
19
|
19
58612-51K00-000 BRACKET,FR END,R2008-06-01~ |
58612-51K00-000 |
US $14.43 |
||
|
20
|
20
58700-51K00-000
Member, apron side lh
2008-06-01~ |
58700-51K00-000 |
— | ||
|
21
|
21
58700-51810-000
MEMBER SET,APRN SIDE,L
2008-06-01~ |
58700-51810-000 |
— | ||
|
22
|
22
58712-51K00-000 BRACKET,FR END,L2008-06-01~ |
58712-51K00-000 |
US $12 |
||
|
23
|
23
58710-62J01-000
Bracket, battery tray
2008-06-01~ |
58710-62J01-000 |
— | ||
|
24
|
24
59100-51K10-000
Panel, dash
2008-06-01~ |
59100-51K10-000 |
— | ||
|
25
|
25
59221-63J00-000
Crossmember,dash upper
2008-06-01~ |
59221-63J00-000 |
— | ||
|
26
|
26
59231-51K00-000
PANEL,DASH SIDE,R
2008-06-01~ |
59231-51K00-000 |
— | ||
|
27
|
27
59281-51K00-000
PANEL,DASH SIDE,L
2008-06-01~ |
59281-51K00-000 |
— | ||
|
28
|
28
59232-63J00-000 PANEL,DASH SIDE FRONT,R2008-06-01~ |
59232-63J00-000 |
US $22.82 |
||
|
29
|
29
59282-63J00-000 PANEL,DASH SIDE FRONT,L2008-06-01~ |
59282-63J00-000 |
US $22.82 |
||
|
30
|
30
59233-51K00-000
REINF,DASH SIDE PANEL UPR,R
2008-06-01~ |
59233-51K00-000 |
— | ||
|
31
|
31
59283-51K00-000
REINF,DASH SIDE PANEL UPR,L
2008-06-01~ |
59283-51K00-000 |
— | ||
|
32
|
32
62133-51K00-000
BRACKET,I/P
2008-06-01~ |
62133-51K00-000 |
— | ||
|
33
|
33
01550-0612A-000 BOLT2008-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
34
|
34
59311-51K00-000
PANEL,DASH UPPER
2008-06-01~ |
59311-51K00-000 |
— | ||
|
35
|
35
59312-51K00-000
SEALING,COWL VENTILATOR
2008-06-01~ |
59312-51K00-000 |
— | ||
|
36
|
36
59320-51K00-000
HANGER,PEDAL BRACKET
2008-06-01~ |
59320-51K00-000 |
— | ||
|
37
|
37
59331-51K00-000 PANEL,COWL SIDE,R2008-06-01~ |
59331-51K00-000 |
US $52.26 |
||
|
38
|
38
59381-51K00-000
PANEL,COWL SIDE,L
2008-06-01~ |
59381-51K00-000 |
— | ||
|
39
|
39
59332-51K00-000 BRACKET,FR FENDER,R2008-06-01~ |
59332-51K00-000 |
US $15.97 |
||
|
40
|
40
59382-51K00-000 BRACKET,FR FENDER,L2008-06-01~ |
59382-51K00-000 |
US $15.97 |
||
|
41
|
41
59333-51K00-000
EXTENSION,COWL UPR,R
2008-06-01~ |
59333-51K00-000 |
— | ||
|
42
|
42
59334-51K00-000
EXTENSION,COWL UPR,L
2008-06-01~ |
59334-51K00-000 |
— | ||
|
43
|
43
59410-51K00-000
MEMBER,COWL SIDE OTR,R
2008-06-01~ |
59410-51K00-000 |
— | ||
|
44
|
44
59460-51K00-000
MEMBER,COWL SIDE OTR,L
2008-06-01~ |
59460-51K00-000 |
— | ||
|
45
|
45
59744-79J00-000 PATCH,FR HOOD HINGE2008-06-01~ |
59744-79J00-000 |
US $5.56 |
||
|
46
|
46
01551-0820A-000 BOLT2008-06-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
47
|
47
59710-51K00-000
PANEL,COWL TOP
2008-06-01~ |
59710-51K00-000 |
— | ||
|
48
|
48
59741-51K00-000
PANEL,COWL TOP SIDE,R
2008-06-01~ |
59741-51K00-000 |
— | ||
|
49
|
49
59751-51K00-000 PANEL,COWL TOP SIDE,L2008-06-01~ |
59751-51K00-000 |
US $34.59 |
||
|
50
|
50
01580-0820A-000 Bolt2008-06-01~ |
01580-0820A-000 |
from US $0.91 |
||
|
51
|
51
72524-83E10-000 BAND,BATTERY2008-06-01~ |
72524-83E10-000 |
US $5.92 |
||
|
52
|
52
72520-62J01-000
Tray, battery
2008-06-01~ |
72520-62J01-000 |
— | ||
|
53
|
53
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
