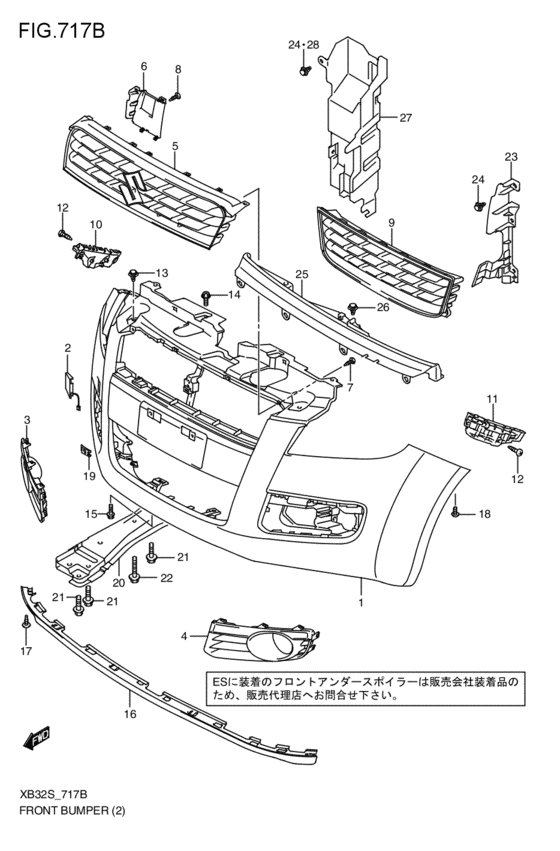

front bumper (ES; 2009-08-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-51K00-799 BUMPER,FR(PRIMARY)Primary coat プライマリ-; ES; 2009-08-01~ |
71711-51K00-799 |
US $479.02 |
||
|
2
|
2
71712-51K00-799 CAP,FR BUMPERプライマリ-; ES; 2009-08-01~ |
71712-51K00-799 |
US $14.94 |
||
|
3
|
3
71751-51K10-5PK BEZEL,FR FOG LAMP,RBlack ブラツク; ES; 2009-08-01~ |
71751-51K10-5PK |
US $16 |
||
|
4
|
4
71761-51K10-5PK BEZEL,FR FOG LAMP,LBlack ブラツク; ES; 2009-08-01~ |
71761-51K10-5PK |
US $16 |
||
|
5
|
5
71741-51K00-5PK GRILLE,RDTR UPRBlack ブラツク; ES; 2009-08-01~ |
71741-51K00-5PK |
US $153.52 |
||
|
6
|
6
71742-51K00-5PK COVER,RDTR UPR GRILLEBlack ブラツク; ES; 2009-08-01~ |
71742-51K00-5PK |
US $13.03 |
||
|
7
|
7
03541-0412A-000 SCREWScrew, speedometer ES; 2009-08-01~ |
03541-0412A-000 |
from US $0.80 |
||
|
8
|
8
03541-0412A-000 SCREWScrew, speedometer ES; 2009-08-01~ |
03541-0412A-000 |
from US $0.80 |
||
|
9
|
9
71721-51K00-5PK GRILLE,RDTR LWRBlack ブラツク; ES; 2009-08-01~ |
71721-51K00-5PK |
from US $25.90 |
||
|
10
|
10
71731-51K00-000 HOLDER,FR BUMPER SIDE,RES; 2009-08-01~ |
71731-51K00-000 |
US $5.37 |
||
|
11
|
11
71732-51K00-000 HOLDER,FR BUMPER SIDE,LES; 2009-08-01~ |
71732-51K00-000 |
US $5.37 |
||
|
12
|
12
03511-0512A-000 SCREWES; 2009-08-01~ |
03511-0512A-000 |
from US $0.80 |
||
|
13
|
13
09409-08327-000 CLIPES; 2009-08-01~ |
09409-08327-000 |
from US $1.13 |
||
|
14
|
14
02162-0616A-000 SCREWES; 2009-08-01~ |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust ES; 2009-08-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
15
|
15
02162-0616A-000 SCREWES; 2009-08-01~ |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
15
|
15
02162-0616B-000 SCREWBolt, adjust ES; 2009-08-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
16
|
16
71770-62J00-000 SKIRT,FR AIR DAMES; 2009-08-01~ |
71770-62J00-000 |
US $53.73 |
||
|
17
|
17
03541-0512A-000 SCREWES; 2009-08-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
18
|
18
09136-05068-000 SCREW(5X20)ES; 2009-08-01~ |
09136-05068-000 |
from US $0.96 |
||
|
19
|
19
09148-06021-000 NUTNut, air cleaner ES; 2009-08-01~ |
09148-06021-000 |
from US $1.31 |
||
|
20
|
20
72410-51K00-000 ABSORBER,APRON LWR,RES; 2009-08-01~ |
72410-51K00-000 |
US $70.66 |
||
|
21
|
21
01550-1035A-000 BOLTBolt, fr fork upper ES; 2009-08-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
22
|
22
01550-1060A-000 BoltES; 2009-08-01~ |
01550-1060A-000 |
from US $1.60 |
||
|
23
|
23
72397-51K00-000 COVER,FR END SIDE,LES; 2009-08-01~ |
72397-51K00-000 |
US $23.74 |
||
|
24
|
24
09409-08327-000 CLIPES; 2009-08-01~ |
09409-08327-000 |
from US $1.13 |
||
|
25
|
25
72398-51K00-5PK COVER,FR END LOWERBlack ブラツク; ES; 2009-08-01~ |
72398-51K00-5PK |
US $35.33 |
||
|
26
|
26
09409-08327-000 CLIPES; 2009-08-01~ |
09409-08327-000 |
from US $1.13 |
||
|
27
|
27
72393-51K00-000 COVER,ENGINE,FRES; 2009-08-01~ |
72393-51K00-000 |
US $36.43 |
||
|
28
|
28
09409-08327-000 CLIPES; 2009-08-01~ |
09409-08327-000 |
from US $1.13 |
||
