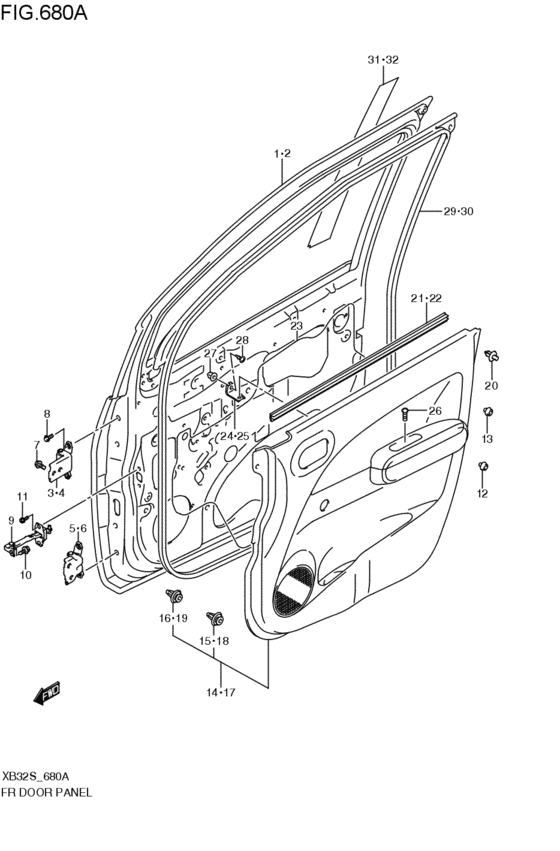

front door panel (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-51K00-000 PANEL ASSY,FRONT DOOR,R2008-06-01~ |
68001-51K00-000 |
US $566.72 |
||
|
2
|
2
68002-51K00-000 PANEL ASSY,FRONT DOOR,L2008-06-01~ |
68002-51K00-000 |
US $566.72 |
||
|
3
|
3
69310-65J00-000 HINGE,FR DR NO.1ライト; 2008-06-01~ |
69310-65J00-000 |
US $35.88 |
||
|
4
|
4
69320-65J00-000 HINGE,FR DR NO.2レフト; 2008-06-01~ |
69320-65J00-000 |
US $35.88 |
||
|
5
|
5
69320-63J00-000 HINGE,FR DR NO.2ライト; 2008-06-01~ |
69320-63J00-000 |
US $38.64 |
||
|
6
|
6
69310-63J00-000 HINGE,FR DR NO.1レフト; 2008-06-01~ |
69310-63J00-000 |
US $38.64 |
||
|
7
|
7
01551-0820A-000 BOLT2008-06-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
8
|
8
09103-08389-000 BOLT(8X24)2008-06-01~ |
09103-08389-000 |
US $17.30 |
||
|
9
|
9
81810-62J01-000
Stop, front door open
2008-06-01~ |
81810-62J01-000 |
— | ||
| replacement | |||||
|
9
|
9
81810-54P00-000 STOP,FR DR OPEN2008-06-01~ |
81810-54P00-000 |
from US $25.92 |
||
|
10
|
10
09112-08015-000 BOLT(8X25)2008-06-01~ |
09112-08015-000 |
US $19.50 |
||
|
11
|
11
09122-86004-000 SCREW(6X20)2008-06-01~ |
09122-86004-000 |
US $11.80 |
||
|
12
|
12
82711-65J00-000 CUSHION2008-06-01~ |
82711-65J00-000 |
from US $1.49 |
||
|
13
|
13
82711-51K00-000 STOPPER,DR2008-06-01~ |
82711-51K00-000 |
from US $2.09 |
||
|
14
|
14
83710-51K80-EWS
トリム,フロントドア,ライト(グレー/ブラック)
ES; 2009-08-01~ |
83710-51K80-EWS |
— | ||
|
15
|
15
83717-79J00-000 CLIP2008-06-01~ |
83717-79J00-000 |
US $2.47 |
||
|
16
|
16
09409-10312-000 CLIP2008-06-01~ |
09409-10312-000 |
from US $1.13 |
||
|
17
|
17
83720-51KA0-EWS
トリム,フロントドア,レフト(グレー)
ES; 2009-08-01~ |
83720-51KA0-EWS |
— | ||
|
18
|
18
83717-79J00-000 CLIP2008-06-01~ |
83717-79J00-000 |
US $2.47 |
||
|
19
|
19
09409-10312-000 CLIP2008-06-01~ |
09409-10312-000 |
from US $1.13 |
||
|
20
|
20
09409-06314-S1S CLIP(GRAY)2008-06-01~ |
09409-06314-S1S |
US $1.60 |
||
|
21
|
21
83851-51K00-000 WEATHERSTRIP,FR DR INR,R2008-06-01~ |
83851-51K00-000 |
US $30.91 |
||
|
22
|
22
83861-51K00-000 WEATHERSTRIP,FR DR INR,L2008-06-01~ |
83861-51K00-000 |
US $96.80 |
||
|
23
|
23
83911-51K00-000 COVER,FR DR SEALING2008-06-01~ |
83911-51K00-000 |
US $5.37 |
||
|
24
|
24
83751-75HA0-000 BRACKET,DR TRIM,R2008-06-01~ |
83751-75HA0-000 |
US $3.97 |
||
|
25
|
25
83756-75HA0-000 BRACKET,DR TRIM,L2008-06-01~ |
83756-75HA0-000 |
US $3.97 |
||
|
26
|
26
09132-05058-000 SCREW(5X12)2008-06-01~ |
09132-05058-000 |
US $12.50 |
||
|
27
|
27
09148-06007-000 NUT2008-06-01~ |
09148-06007-000 |
from US $0.86 |
||
|
28
|
28
03241-0612A-000 SCREW2008-06-01~ |
03241-0612A-000 |
US $0.80 |
||
|
29
|
29
84641-51K00-000 WEATHERSTRIP,FR DR OPNG,R2008-06-01~ |
84641-51K00-000 |
US $70.66 |
||
|
30
|
30
84651-51K00-000 WEATHERSTRIP,FR DR OPNG,L2008-06-01~ |
84651-51K00-000 |
US $70.66 |
||
|
31
|
31
83921-51K00-0CB TAPE,FR DOOR OUTER,RBlack 2008-06-01~ |
83921-51K00-0CB |
US $27.78 |
||
|
32
|
32
83922-51K00-0CB TAPE,FR DOOR OUTER,LBlack 2008-06-01~ |
83922-51K00-0CB |
US $27.78 |
||
