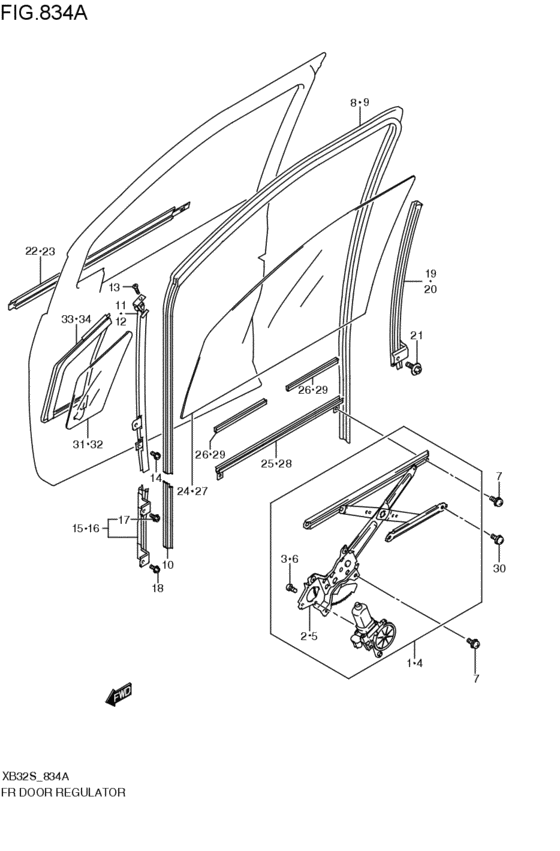

front door regulator (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83401-79J10-000
Regulator assy,front window,r
2008-06-01~ |
83401-79J10-000 |
— | ||
| replacement | |||||
|
1
|
1
83401-79J12-000 REGULATOR ASSY,FR WINDOW,R2008-06-01~ |
83401-79J12-000 |
US $231.84 |
||
|
2
|
2
83410-79J10-000
Regulator s/assy,fr wdo,r
2008-06-01~ |
83410-79J10-000 |
— | ||
| replacement | |||||
|
2
|
2
83410-79J11-000 REGULATOR ASSY,FR WINDOW,R2008-06-01~ |
83410-79J11-000 |
US $73.60 |
||
|
3
|
3
09139-05063-000 SCREW(5X11)2008-06-01~ |
09139-05063-000 |
US $11.40 |
||
|
4
|
4
83402-79J10-000
Regulator assy,front window,l
2008-06-01~ |
83402-79J10-000 |
— | ||
| replacement | |||||
|
4
|
4
83402-79J12-000 REGULATOR ASSY,FR WINDOW,L2008-06-01~ |
83402-79J12-000 |
US $231.84 |
||
|
5
|
5
83440-79J10-000
Regulator s/assy,fr wdo,l
2008-06-01~ |
83440-79J10-000 |
— | ||
| replacement | |||||
|
5
|
5
83440-79J11-000 REGULATOR ASSY,FR WDO,L2008-06-01~ |
83440-79J11-000 |
US $73.60 |
||
|
6
|
6
09139-05063-000 SCREW(5X11)2008-06-01~ |
09139-05063-000 |
US $11.40 |
||
|
7
|
7
02112-7610A-000 SCREW2008-06-01~ |
02112-7610A-000 |
from US $3.59 |
||
|
8
|
8
83661-51K00-000
Run, door glass rh
2008-06-01~ |
83661-51K00-000 |
— | ||
| replacement | |||||
|
8
|
8
83661-51K01-000 RUN,FR DOOR GLASS,R2008-06-01~ |
83661-51K01-000 |
US $75.07 |
||
|
9
|
9
83665-51K00-000
Run, door glass lh
2008-06-01~ |
83665-51K00-000 |
— | ||
| replacement | |||||
|
9
|
9
83665-51K01-000 RUN,FR DOOR GLASS,L2008-06-01~ |
83665-51K01-000 |
US $91.63 |
||
|
10
|
10
83662-51K00-000 RUN,FR DOOR FR LWR GLASS2008-06-01~ |
83662-51K00-000 |
US $12.22 |
||
|
11
|
11
81710-51K00-000 SASH,FR DOOR FRONT UPR,R2008-06-01~ |
81710-51K00-000 |
US $46.74 |
||
|
12
|
12
81720-51K00-000 SASH,FR DOOR FRONT UPR,L2008-06-01~ |
81720-51K00-000 |
US $46.74 |
||
|
13
|
13
02122-0512A-000 SCREW2008-06-01~ |
02122-0512A-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
81750-51K00-000 SASH,FR DOOR FRONT LWR,R2008-06-01~ |
81750-51K00-000 |
US $26.68 |
||
|
16
|
16
81760-51K00-000 SASH,FR DOOR FRONT LWR,L2008-06-01~ |
81760-51K00-000 |
US $26.68 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
18
|
18
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
19
|
19
81730-51K00-000 SASH,FR DOOR REAR,R2008-06-01~ |
81730-51K00-000 |
US $23.74 |
||
|
20
|
20
81740-51K00-000 SASH,FR DOOR REAR,L2008-06-01~ |
81740-51K00-000 |
US $23.74 |
||
|
21
|
21
09122-76003-000 SCREW(6X16)Bolt (6x16) 2008-06-01~ |
09122-76003-000 |
US $11.80 |
||
|
22
|
22
83811-51K00-000 WEATHERSTRIP,FR DR OUT,R2008-06-01~ |
83811-51K00-000 |
US $102.60 |
||
|
23
|
23
83821-51K00-000 WEATHERSTRIP,FR DR OUT,L2008-06-01~ |
83821-51K00-000 |
US $102.60 |
||
|
24
|
24
84531-51K00-000 GLASS,FR DR WDO,R2008-06-01~ |
84531-51K00-000 |
US $555.20 |
||
|
25
|
25
83610-62B00-000 CHANNEL,FR GLASS BOTTOM2008-06-01~ |
83610-62B00-000 |
from US $15.12 |
||
|
26
|
26
83691-76G00-000 RUBBER,GLASS BOTTOM2008-06-01~ |
83691-76G00-000 |
US $2.56 |
||
|
27
|
27
84536-51K00-000 GLASS,FR DR WDO,L2008-06-01~ |
84536-51K00-000 |
US $103.78 |
||
|
28
|
28
83610-62B00-000 CHANNEL,FR GLASS BOTTOM2008-06-01~ |
83610-62B00-000 |
from US $15.12 |
||
|
29
|
29
83691-76G00-000 RUBBER,GLASS BOTTOM2008-06-01~ |
83691-76G00-000 |
US $2.56 |
||
|
30
|
30
02112-7610A-000 SCREW2008-06-01~ |
02112-7610A-000 |
from US $3.59 |
||
|
31
|
31
84521-51K00-000 GLASS,FR DR WDO FR,R2008-06-01~ |
84521-51K00-000 |
US $79.49 |
||
|
32
|
32
84526-51K00-000 GLASS,FR DR WDO FR,L2008-06-01~ |
84526-51K00-000 |
US $79.49 |
||
|
33
|
33
84614-51K00-000 WEATHERSTRIP,FR DR WDO FR,R2008-06-01~ |
84614-51K00-000 |
US $37.54 |
||
|
34
|
34
84615-51K00-000 WEATHERSTRIP,FR DR WDO FR,L2008-06-01~ |
84615-51K00-000 |
US $37.54 |
||
