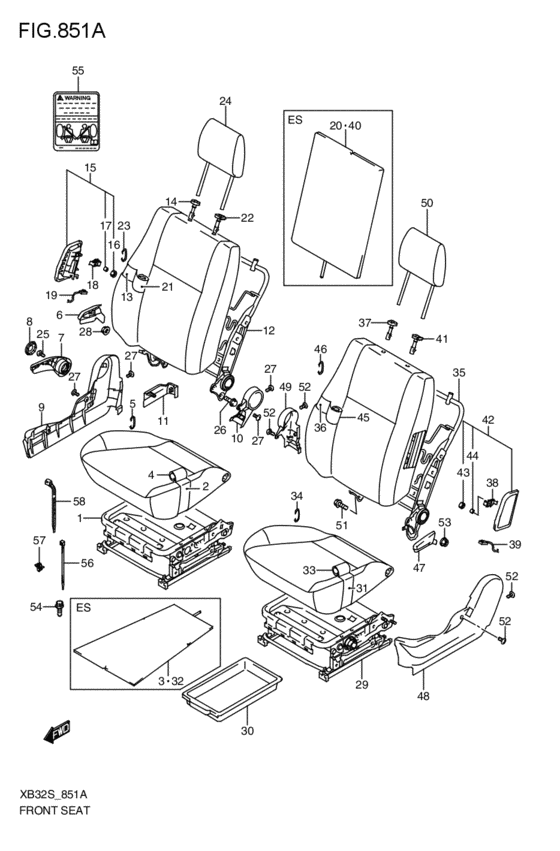

front seat (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85103-51K20-000
フレームアッシ,フロントクッション,ライト
2008-06-01~ |
85103-51K20-000 |
— | ||
| replacement | |||||
|
1
|
1
85103-51K21-000 FRAME ASSY,FR CUSH,R2008-06-01~ |
85103-51K21-000 |
US $496.32 |
||
|
2
|
2
85160-51K00-000 PAD,FR CUSHION,R2008-06-01~ |
85160-51K00-000 |
US $91.63 |
||
|
3
|
3
85170-62J00-000
Heater,fr cush
ES; 2009-08-01~ |
85170-62J00-000 |
— | ||
| replacement | |||||
|
3
|
3
85170-62J02-000 HEATER,FR CUSHES; 2009-08-01~ |
85170-62J02-000 |
US $104.88 |
||
|
4
|
4
85180-51K20-JBC
トリム,フロントクッション,ライト(ブルー)
ES; 2009-08-01~ |
85180-51K20-JBC |
— | ||
|
5
|
5
09387-19001-000 RING2008-06-01~ |
09387-19001-000 |
US $1.76 |
||
|
6
|
6
85211-65J00-S1S
Knob,rclng,r
2008-06-01~ |
85211-65J00-S1S |
— | ||
| replacement | |||||
|
6
|
6
85211-65JA0-S1S KNOB,RCLNG,R2008-06-01~ |
85211-65JA0-S1S |
US $10.56 |
||
|
7
|
7
85213-65J00-S1S LEVER,SEAT LIFTER2008-06-01~ |
85213-65J00-S1S |
US $11.22 |
||
|
8
|
8
85214-63J20-S1S CAP,LIFTER LEVER2008-06-01~ |
85214-63J20-S1S |
US $2.88 |
||
|
9
|
9
85221-51K00-S1S
COVER,RCLNG OUTSIDE,R
2008-06-01~ |
85221-51K00-S1S |
— | ||
|
10
|
10
85241-51K00-S1S
COVER,RCLNG INSIDE,R
2008-06-01~ |
85241-51K00-S1S |
— | ||
|
11
|
11
85243-51K20-000
COVER,RR RISER INSIDE,R
2008-06-01~ |
85243-51K20-000 |
— | ||
|
12
|
12
85303-51K00-000
FRAME ASSY,FR BACK,R
2008-06-01~ |
85303-51K00-000 |
— | ||
|
13
|
13
85360-62JA0-000 PAD,FR BACK,R2008-06-01~ |
85360-62JA0-000 |
US $118.50 |
||
|
14
|
14
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
14
|
14
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85341-63J11-P4Z |
— | ||
|
14
|
14
85341-63J12-P4Z Guide,headrestraint2008-06-01~ |
85341-63J12-P4Z |
US $7.36 |
||
|
15
|
15
85350-51K00-S1S
Module assy, side air bag rh
2008-06-01~ |
85350-51K00-S1S |
— | ||
| replacement | |||||
|
15
|
15
85350-51K01-S1S MODULE ASSY,SIDE A/B,R2008-06-01~ |
85350-51K01-S1S |
US $344.08 |
||
|
16
|
16
85352-62J00-000 NUT,SIDE AIRBAG2008-06-01~ |
85352-62J00-000 |
US $6.15 |
||
|
17
|
17
85353-62J00-000 SLEEVE,SIDE AIRBAG2008-06-01~ |
85353-62J00-000 |
US $5.67 |
||
|
18
|
18
85351-62J00-000 FASTENER,SIDE AIR BAG MTG2008-06-01~ |
85351-62J00-000 |
US $7.62 |
||
|
19
|
19
85355-51K00-000 HARNESS ASSY,SIDE AIRBAG2008-06-01~ |
85355-51K00-000 |
US $34.78 |
||
|
20
|
20
85370-51K00-000
Heater, fr back
ES; 2009-08-01~ |
85370-51K00-000 |
— | ||
|
21
|
21
85380-51KA0-JBC
トリム,フロントバック,ライト(ブルー)
ES; 2009-08-01~ |
85380-51KA0-JBC |
— | ||
|
22
|
22
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
22
|
22
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
2008-06-01~ |
85840-63J11-P4Z |
— | ||
|
22
|
22
85840-63J12-P4Z Guide Comp,headrestraint2008-06-01~ |
85840-63J12-P4Z |
US $9.12 |
||
|
23
|
23
09387-19001-000 RING2008-06-01~ |
09387-19001-000 |
US $1.76 |
||
|
24
|
24
86401-62J00-V2M HEADRESTRAINT ASSYCharcoal 2008-06-01~ |
86401-62J00-V2M |
US $118.86 |
||
|
25
|
25
09132-05043-000 SCREW(5X10)2008-06-01~ |
09132-05043-000 |
US $12.90 |
||
|
26
|
26
01550-1016A-000 BoltPlug, oil gallery 2008-06-01~ |
01550-1016A-000 |
from US $4.96 |
||
|
27
|
27
85295-51K00-000 SCREW,RECLINING COVER2008-06-01~ |
85295-51K00-000 |
US $2.21 |
||
|
28
|
28
08316-1010A-000 NUTNut, kick starter 2008-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
29
|
29
85603-51K41-000
フレームアッシ,フロントクッション,レフト
ES; 2009-08-01~ |
85603-51K41-000 |
— | ||
|
30
|
30
85150-63J00-000 TRAY,FR SEAT UNDER2008-06-01~ |
85150-63J00-000 |
US $31.83 |
||
|
31
|
31
85660-51K00-000
PAD,FR CUSHION,L
2008-06-01~ |
85660-51K00-000 |
— | ||
|
32
|
32
85170-62J00-000
Heater,fr cush
ES; 2009-08-01~ |
85170-62J00-000 |
— | ||
| replacement | |||||
|
32
|
32
85170-62J02-000 HEATER,FR CUSHES; 2009-08-01~ |
85170-62J02-000 |
US $104.88 |
||
|
33
|
33
85680-51K00-JBC
トリム,フロントクッション,レフト(ブルー)
ES; 2009-08-01~ |
85680-51K00-JBC |
— | ||
|
34
|
34
09387-19001-000 RING2008-06-01~ |
09387-19001-000 |
US $1.76 |
||
|
35
|
35
85803-51K00-000
FRAME ASSY,FR BACK,L
2008-06-01~ |
85803-51K00-000 |
— | ||
|
36
|
36
85860-62JA0-000
PAD,FR BACK,L
2008-06-01~ |
85860-62JA0-000 |
— | ||
|
37
|
37
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
37
|
37
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85341-63J11-P4Z |
— | ||
|
37
|
37
85341-63J12-P4Z Guide,headrestraint2008-06-01~ |
85341-63J12-P4Z |
US $7.36 |
||
|
38
|
38
85351-62J00-000 FASTENER,SIDE AIR BAG MTG2008-06-01~ |
85351-62J00-000 |
US $7.62 |
||
|
39
|
39
85355-62J00-000 HARNESS ASSY,SIDE AIRBAG2008-06-01~ |
85355-62J00-000 |
US $26.61 |
||
|
40
|
40
85370-51K00-000
Heater, fr back
ES; 2009-08-01~ |
85370-51K00-000 |
— | ||
|
41
|
41
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
2008-06-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
41
|
41
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
2008-06-01~ |
85840-63J11-P4Z |
— | ||
|
41
|
41
85840-63J12-P4Z Guide Comp,headrestraint2008-06-01~ |
85840-63J12-P4Z |
US $9.12 |
||
|
42
|
42
85850-51K00-S1S
Module assy, side air bag lh
2008-06-01~ |
85850-51K00-S1S |
— | ||
| replacement | |||||
|
42
|
42
85850-51K01-S1S
MODULE ASSY,SIDE A/B,L
2008-06-01~ |
85850-51K01-S1S |
— | ||
|
43
|
43
85352-62J00-000 NUT,SIDE AIRBAG2008-06-01~ |
85352-62J00-000 |
US $6.15 |
||
|
44
|
44
85353-62J00-000 SLEEVE,SIDE AIRBAG2008-06-01~ |
85353-62J00-000 |
US $5.67 |
||
|
45
|
45
85880-51KE0-JBC
トリム,フロントバック,レフト(ブルー)
ES; 2009-08-01~ |
85880-51KE0-JBC |
— | ||
|
46
|
46
09387-19001-000 RING2008-06-01~ |
09387-19001-000 |
US $1.76 |
||
|
47
|
47
85711-65J00-S1S
Knob,rclng,l
2008-06-01~ |
85711-65J00-S1S |
— | ||
| replacement | |||||
|
47
|
47
85711-65JA0-S1S
KNOB,RCLNG,L
2008-06-01~ |
85711-65JA0-S1S |
— | ||
|
48
|
48
85721-51K00-S1S COVER,RCLNG OUTSIDE,LGray 2008-06-01~ |
85721-51K00-S1S |
US $29.07 |
||
|
49
|
49
85741-51K00-S1S
COVER,RCLNG INSIDE,L
2008-06-01~ |
85741-51K00-S1S |
— | ||
|
50
|
50
86401-62J00-V2M HEADRESTRAINT ASSYCharcoal 2008-06-01~ |
86401-62J00-V2M |
US $118.86 |
||
|
51
|
51
01550-1016A-000 BoltPlug, oil gallery 2008-06-01~ |
01550-1016A-000 |
from US $4.96 |
||
|
52
|
52
85295-51K00-000 SCREW,RECLINING COVER2008-06-01~ |
85295-51K00-000 |
US $2.21 |
||
|
53
|
53
08316-1010A-000 NUTNut, kick starter 2008-06-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
54
|
54
09119-08097-000 BOLT(8X25)2008-06-01~ |
09119-08097-000 |
from US $1.76 |
||
|
55
|
55
85354-59JA0-000
LABEL,SIDE AIRBAG
2008-06-01~ |
85354-59JA0-000 |
— | ||
| replacement | |||||
|
55
|
55
85354-59JK0-000 LABEL,SIDE AIRBAG2008-06-01~ |
85354-59JK0-000 |
US $3.84 |
||
|
56
|
56
85137-51K00-000 CLAMP2008-06-01~ |
85137-51K00-000 |
US $1.66 |
||
|
57
|
57
85136-51K00-000
CLAMP,NO.3
2008-06-01~ |
85136-51K00-000 |
— | ||
|
58
|
58
85138-51K00-000
Clamp, no.2
ES; 2009-08-01~ |
85138-51K00-000 |
— | ||
