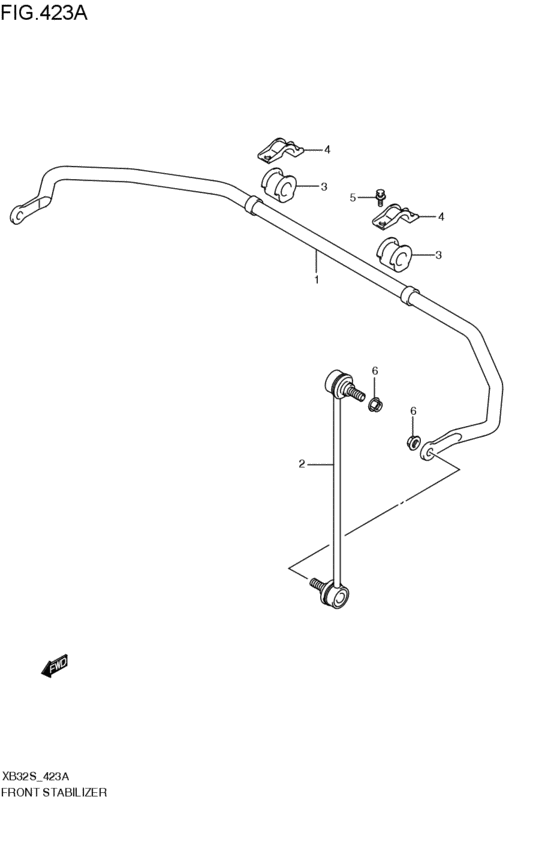

front stabilizer (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-51K20-000
Bar, front stabilizer
2008-06-01~ |
42311-51K20-000 |
— | ||
|
2
|
2
42420-62J00-000
JOINT,FR STABILIZER BAR
2008-06-01~ |
42420-62J00-000 |
— | ||
|
3
|
3
42431-51K00-000 MOUNT,FR STAB BAR2008-06-01~ |
42431-51K00-000 |
from US $9.09 |
||
|
4
|
4
42441-62J11-000 BRACKET,FR STABILIZER MOUNT2008-06-01~ |
42441-62J11-000 |
US $11.04 |
||
|
5
|
5
09117-08101-000 BOLT(8X25)2008-06-01~ |
09117-08101-000 |
US $1.92 |
||
|
6
|
6
08316-1010A-000 NUTNut, kick starter 2008-06-01~ |
08316-1010A-000 |
from US $0.76 |
