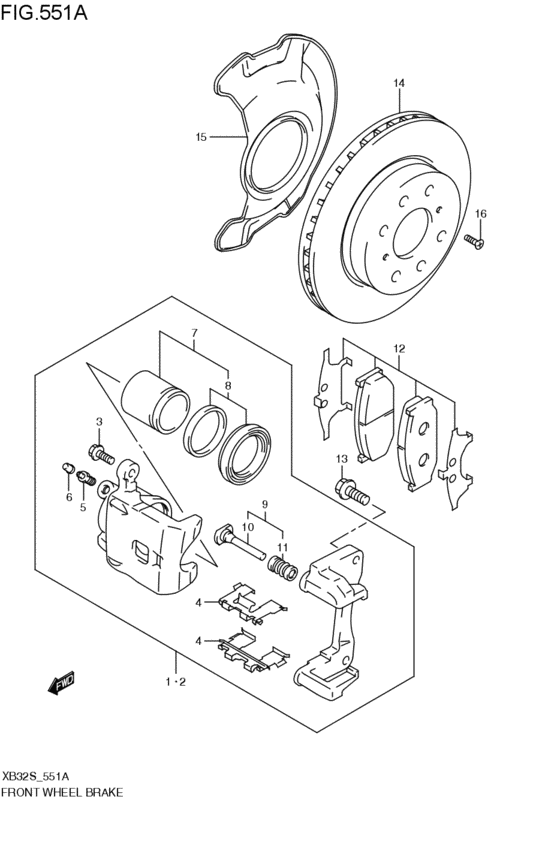

front wheel brakes (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-63J01-999
Caliper,front brake,r
2008-06-01~ |
55101-63J01-999 |
— | ||
| replacement | |||||
|
1
|
1
55101-86M00-999 CALIPER ASSY,FR,RH2008-06-01~ |
55101-86M00-999 |
US $409.14 |
||
|
2
|
2
55102-63J01-999
Caliper,front brake,l
2008-06-01~ |
55102-63J01-999 |
— | ||
| replacement | |||||
|
2
|
2
55102-86M00-999 CALIPER ASSY,FR,LH2008-06-01~ |
55102-86M00-999 |
US $409.14 |
||
|
3
|
3
55206-78452-000 BOLT,PIN2008-06-01~ |
55206-78452-000 |
US $4.77 |
||
|
4
|
4
55234-64G00-000
Spring,pad
2008-06-01~ |
55234-64G00-000 |
— | ||
|
5
|
5
55151-78451-000 PLUG,BLEEDER2008-06-01~ |
55151-78451-000 |
from US $3.94 |
||
|
6
|
6
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 2008-06-01~ |
55156-66310-000 |
from US $1.98 |
||
|
7
|
7
55840-63J00-000
PISTON / SEAL SET
2008-06-01~ |
55840-63J00-000 |
— | ||
| replacement | |||||
|
7
|
7
55840-63J01-000 PISTON / SEAL SET2008-06-01~ |
55840-63J01-000 |
US $40.48 |
||
|
8
|
8
55830-63J00-000
SEAL SET,PISTON
2008-06-01~ |
55830-63J00-000 |
— | ||
| replacement | |||||
|
8
|
8
55830-63J01-000 SEAL SET,PISTON2008-06-01~ |
55830-63J01-000 |
US $13.58 |
||
|
9
|
9
55850-70B00-000
BOOT SET,GUIDE PIN
2008-06-01~ |
55850-70B00-000 |
— | ||
| replacement | |||||
|
9
|
9
55850-70B01-000 BOOT SET,GUIDE PIN2008-06-01~ |
55850-70B01-000 |
from US $13.46 |
||
|
10
|
10
55191-60A00-000 PIN,CYLINDER SLIDE2008-06-01~ |
55191-60A00-000 |
US $10.56 |
||
|
11
|
11
55201-60A00-000 BOOT,PIN2008-06-01~ |
55201-60A00-000 |
US $2.56 |
||
|
12
|
12
55810-63J00-000 パッドセット,ディスクブレーキ2008-06-01~ |
55810-63J00-000 |
US $120.85 |
||
| replacement | |||||
|
12
|
12
55810-71L03-000
PAD SET,DISC BRAKE
2008-06-01~ |
55810-71L03-000 |
— | ||
|
13
|
13
09117-12012-000 BOLT(12X32)2008-06-01~ |
09117-12012-000 |
from US $2.08 |
||
|
14
|
14
55311-62J01-000 Disc,front brake2008-06-01~ |
55311-62J01-000 |
US $125.41 |
||
| replacement | |||||
|
14
|
14
55311-62J02-000 DISC,FR BRAKE2008-06-01~ |
55311-62J02-000 |
US $228.16 |
||
|
15
|
15
55321-62J00-000 COVER,BRAKE DISC DUST2008-06-01~ |
55321-62J00-000 |
US $22.82 |
||
|
16
|
16
02122-0612A-000 SCREW2008-06-01~ |
02122-0612A-000 |
from US $0.80 |
||
