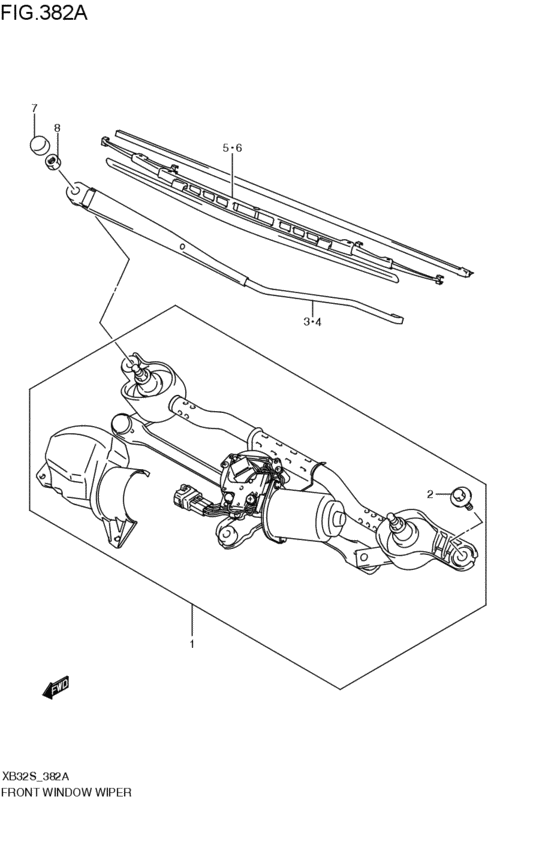

front wind windshield wiper (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38100-51K00-000
Motor & bracket assy, wiper
2008-06-01~ |
38100-51K00-000 |
— | ||
| replacement | |||||
|
1
|
1
38100-51K40-000 WIPER ASSY,WINDSHIELD2008-06-01~ |
38100-51K40-000 |
US $382.72 |
||
|
2
|
2
38116-51K00-000 BOLT,WIPER MOTOR2008-06-01~ |
38116-51K00-000 |
US $4.42 |
||
|
3
|
3
38310-51K00-000 Arm assy, wiper rh2008-06-01~ |
38310-51K00-000 |
US $73.73 |
||
| replacement | |||||
|
3
|
3
38310-51KA0-000 ARM ASSY,WIPER,R2008-06-01~ |
38310-51KA0-000 |
US $75.07 |
||
|
4
|
4
38330-51K20-000 Arm assy, wiper lh2008-06-01~ |
38330-51K20-000 |
US $77.52 |
||
| replacement | |||||
|
4
|
4
38330-51KA0-000 ARM ASSY,WIPER,L2008-06-01~ |
38330-51KA0-000 |
US $65.14 |
||
|
5
|
5
38340-51K00-000
Blade assy, wiper rh
2008-06-01~ |
38340-51K00-000 |
— | ||
| replacement | |||||
|
5
|
5
38340-54GH0-000 BLADE ASSY,WIPER2008-06-01~ |
38340-54GH0-000 |
US $17.26 |
||
|
6
|
6
38340-51K20-000
Blade assy, wiper lh
2008-06-01~ |
38340-51K20-000 |
— | ||
| replacement | |||||
|
6
|
6
38340-75HH0-000 BLADE ASSY,WIPER2008-06-01~ |
38340-75HH0-000 |
US $11.92 |
||
|
7
|
7
38315-60B10-000
Cap
2008-06-01~ |
38315-60B10-000 |
— | ||
| replacement | |||||
|
7
|
7
38315-60B11-000 CAP,WIPER PIVOT2008-06-01~ |
38315-60B11-000 |
US $1.60 |
||
|
8
|
8
08310-0008A-000 NUTNut, bead stopper 2008-06-01~ |
08310-0008A-000 |
from US $0.76 |
||
