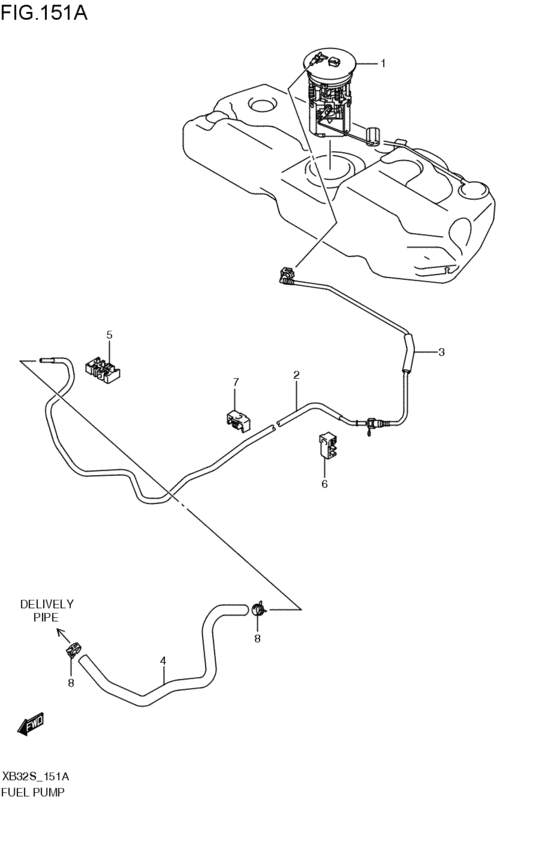

Fuel Pump (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-73KA0-000 Pump assy, fuel2008-06-01~ |
15100-73KA0-000 |
US $433.35 |
||
|
2
|
2
15811-73KA0-000
PIPE,FUEL
2008-06-01~ |
15811-73KA0-000 |
— | ||
|
3
|
3
15812-73KA0-000
Pipe, fuel feed
2008-06-01~ |
15812-73KA0-000 |
— | ||
| replacement | |||||
|
3
|
3
15812-73KA1-000 PIPE,FUEL FEED PUMP TO PIPE2008-06-01~ |
15812-73KA1-000 |
US $45.26 |
||
|
4
|
4
15815-73KA0-000
HOSE,FUEL PIPE TO ENG
2008-06-01~ |
15815-73KA0-000 |
— | ||
|
5
|
5
15882-86G00-000
CLAMP,FUEL PIPE
2008-06-01~ |
15882-86G00-000 |
— | ||
|
6
|
6
15893-63J00-000 CLAMP,FUEL PIPE2008-06-01~ |
15893-63J00-000 |
US $1.77 |
||
|
7
|
7
15893-86G00-000 CLAMP,FUEL PIPE2008-06-01~ |
15893-86G00-000 |
US $3.02 |
||
|
8
|
8
09401-13419-000 CLIP2008-06-01~ |
09401-13419-000 |
from US $1.60 |
||
