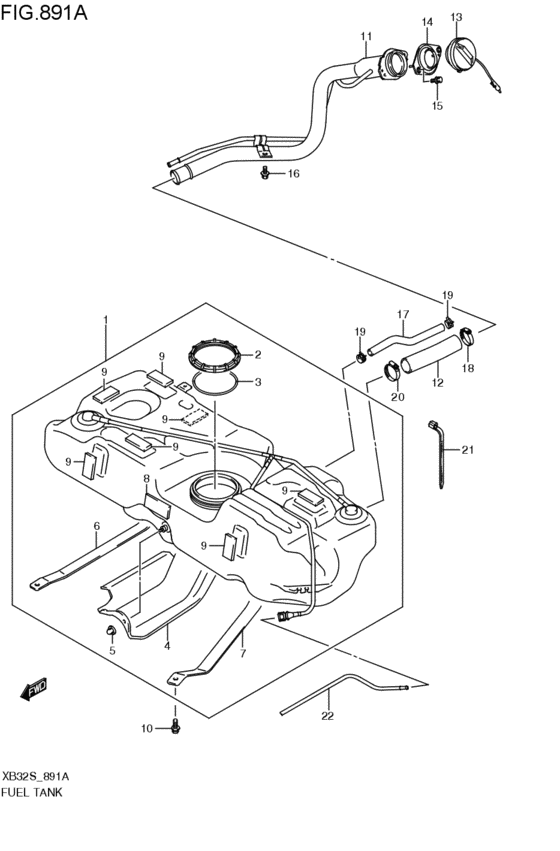

fuel tank (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89100-51K00-000 TANK ASSY,FUEL2008-06-01~ |
89100-51K00-000 |
US $746.24 |
||
|
2
|
2
89191-62J00-000 NUT,FUEL PUMP LOCK2008-06-01~ |
89191-62J00-000 |
from US $37.35 |
||
|
3
|
3
89192-62J00-000 O-RING,FUEL PUMP2008-06-01~ |
89192-62J00-000 |
from US $6.54 |
||
|
4
|
4
89311-62J00-000
INSULATOR,HEAT
2008-06-01~ |
89311-62J00-000 |
— | ||
|
5
|
5
89315-62J00-000 NUT,HEAT INSULATOR2008-06-01~ |
89315-62J00-000 |
US $7.68 |
||
|
6
|
6
89360-62J00-000
BELT,FUEL TANK FIXER,R
2008-06-01~ |
89360-62J00-000 |
— | ||
|
7
|
7
89370-62J02-000
BELT,FUEL TANK FIXER,L
2008-06-01~ |
89370-62J02-000 |
— | ||
|
8
|
8
89382-72K00-000
PAD,FUEL TANK
2008-06-01~ |
89382-72K00-000 |
— | ||
|
9
|
9
89385-62J00-000
PAD,FUEL TANK
2008-06-01~ |
89385-62J00-000 |
— | ||
|
10
|
10
09118-10073-000 BOLT(10X30)2008-06-01~ |
09118-10073-000 |
US $1.44 |
||
|
11
|
11
89201-51K11-000 NECK ASSY,FUEL FILLER2008-06-01~ |
89201-51K11-000 |
US $171.49 |
||
|
12
|
12
89241-62J00-000
HOSE,FUEL TANK FILLER
2008-06-01~ |
89241-62J00-000 |
— | ||
|
13
|
13
89260-65G00-000 CAP ASSY,FUEL FILLER2008-06-01~ |
89260-65G00-000 |
US $69.92 |
||
|
14
|
14
89285-58J00-000 PACKING,FUEL FILLER2008-06-01~ |
89285-58J00-000 |
US $6.24 |
||
|
15
|
15
09116-05014-000 BOLT(5X20)2008-06-01~ |
09116-05014-000 |
US $1.82 |
||
|
16
|
16
09116-06205-000 BOLT(6X16)2008-06-01~ |
09116-06205-000 |
from US $0.96 |
||
|
17
|
17
09355-11188-600 HOSE(11X17.8X600)L:600>400; 2008-06-01~ |
09355-11188-600 |
US $8.80 |
||
|
18
|
18
09400-45311-000 CLAMP2008-06-01~ |
09400-45311-000 |
US $1.92 |
||
|
19
|
19
09401-16407-000 CLIP2008-06-01~ |
09401-16407-000 |
from US $1.60 |
||
|
20
|
20
09402-50512-000 CLAMP2008-06-01~ |
09402-50512-000 |
US $46.40 |
||
|
21
|
21
09407-19401-000 CLAMP(L:190)2008-06-01~ |
09407-19401-000 |
from US $4.17 |
||
|
22
|
22
89483-51K00-000
PIPE,FUEL EVAP
2008-06-01~ |
89483-51K00-000 |
— |
