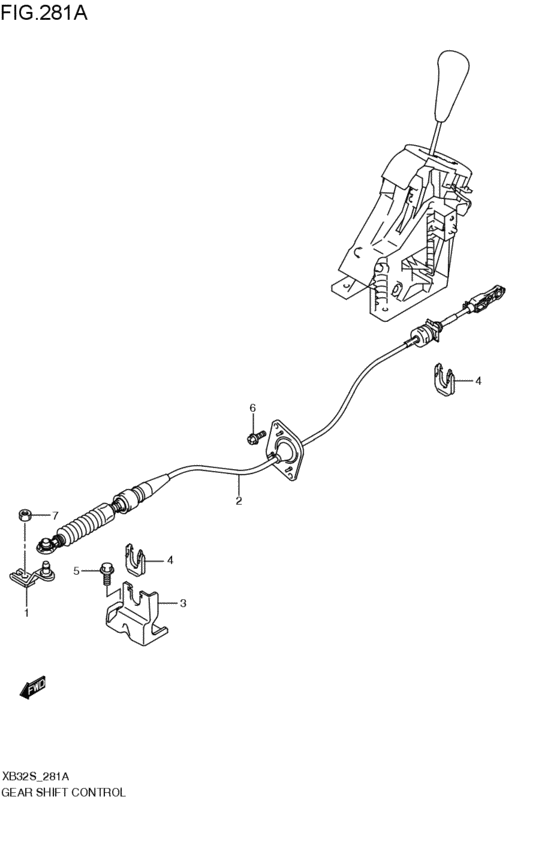

gearlever control (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25970-73KR0-000
レバー,マニュアルセレクト
2008-06-01~ |
25970-73KR0-000 |
— | ||
|
2
|
2
28210-51KR0-000
ケーブルアッシ,セレクト
2008-06-01~ |
28210-51KR0-000 |
— | ||
|
3
|
3
28221-73KR0-000
ブラケット,セレクトケーブル
2008-06-01~ |
28221-73KR0-000 |
— | ||
|
4
|
4
29365-79A40-000 CLIP2008-06-01~ |
29365-79A40-000 |
US $4 |
||
|
5
|
5
01550-0816A-000 BOLTBolt, rear 2008-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
6
|
6
02162-0620C-000 SCREW2008-06-01~ |
02162-0620C-000 |
from US $0.80 |
||
|
7
|
7
08361-3508A-000 NUT2008-06-01~ |
08361-3508A-000 |
US $0.77 |
