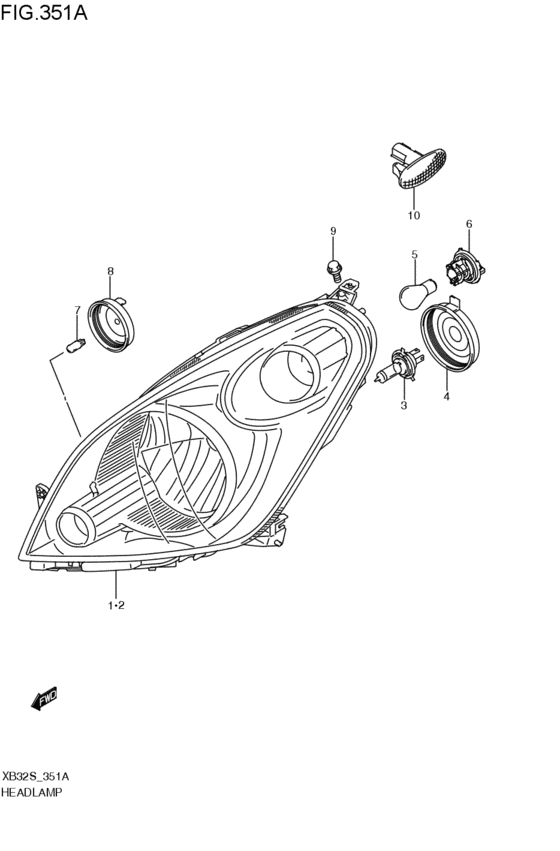

head lamp (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-51K11-000 UNIT,HEADLAMP,R2008-06-01~ |
35120-51K11-000 |
US $418.88 |
||
|
2
|
2
35320-51K11-000 UNIT,HEADLAMP,L2008-06-01~ |
35320-51K11-000 |
US $418.88 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4)2008-06-01~ |
09471-12182-000 |
from US $26.98 |
||
|
4
|
4
35125-51K00-000 COVER,SOCKET2008-06-01~ |
35125-51K00-000 |
US $36.43 |
||
|
5
|
5
09471-12186-000 BULB(12V21W,AMBER)アンバ-; 2008-06-01~ |
09471-12186-000 |
from US $5.65 |
||
|
6
|
6
35618-51K00-000 SOCKET,TURN LAMP2008-06-01~ |
35618-51K00-000 |
US $40.11 |
||
|
7
|
7
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2008-06-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
7
|
7
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2008-06-01~ |
09471-12216-000 |
from US $2.84 |
||
|
8
|
8
35125-51K10-000 COVER,POSITION LAMP SOCKET2008-06-01~ |
35125-51K10-000 |
US $34.59 |
||
|
9
|
9
09122-76006-000 SCREW(6X16)2008-06-01~ |
09122-76006-000 |
from US $0.80 |
||
|
10
|
10
36410-51K00-000 LAMP ASSY,TURN SIG2008-06-01~ |
36410-51K00-000 |
US $10.23 |
||
