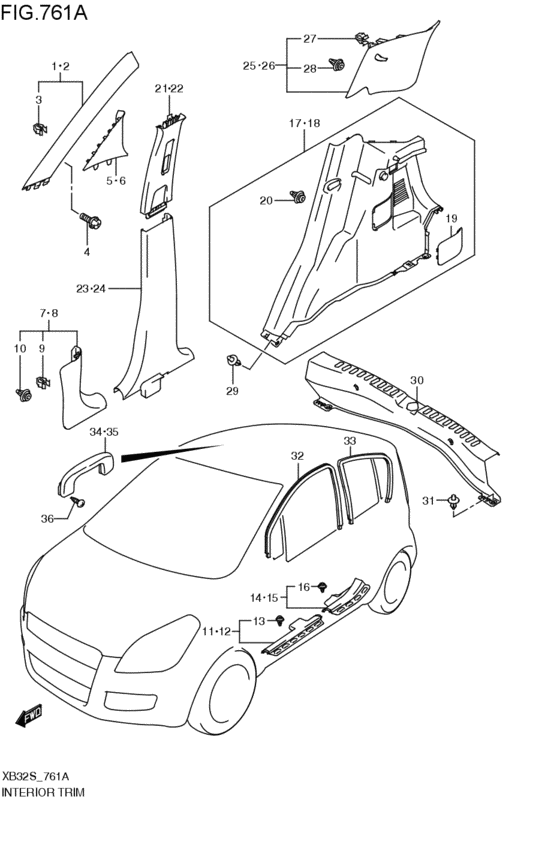

i trim interior (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76111-51K10-6GS TRIM,FR PILLAR,RGray グレ-; 2008-06-01~ |
76111-51K10-6GS |
US $28.70 |
||
|
2
|
2
76121-51K10-6GS TRIM,FR PILLAR,LGray グレ-; 2008-06-01~ |
76121-51K10-6GS |
US $28.70 |
||
|
3
|
3
09409-07335-000 CLIP2008-06-01~ |
09409-07335-000 |
from US $1.04 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket 2008-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
5
|
5
76113-51K00-S1S COVER,F/PILLAR INR LWR,RGray グレ-; 2008-06-01~ |
76113-51K00-S1S |
US $13.76 |
||
|
6
|
6
76123-51K00-S1S COVER,F/PILLAR INR LWR,LGray グレ-; 2008-06-01~ |
76123-51K00-S1S |
US $11.26 |
||
|
7
|
7
76130-51K00-S1S TRIM,DASH SIDE,RGray グレ-; 2008-06-01~ |
76130-51K00-S1S |
US $21.90 |
||
|
8
|
8
76140-51K00-S1S TRIM,DASH SIDE,LGray グレ-; 2008-06-01~ |
76140-51K00-S1S |
US $21.90 |
||
|
9
|
9
09409-08342-000 CLIP2008-06-01~ |
09409-08342-000 |
from US $0.68 |
||
|
10
|
10
09409-10312-000 CLIP2008-06-01~ |
09409-10312-000 |
from US $1.13 |
||
|
11
|
11
76151-51K00-S1S SCUFF,SIDE SILL FR,RGray グレ-; 2008-06-01~ |
76151-51K00-S1S |
US $17.70 |
||
|
12
|
12
76161-51K00-S1S SCUFF,SIDE SILL FR,LGray グレ-; 2008-06-01~ |
76161-51K00-S1S |
US $41.60 |
||
|
13
|
13
09409-10312-000 CLIP2008-06-01~ |
09409-10312-000 |
from US $1.13 |
||
|
14
|
14
76152-51K00-S1S SCUFF,SIDE SILL RR,RGray グレ-; 2008-06-01~ |
76152-51K00-S1S |
US $16.85 |
||
|
15
|
15
76162-51K00-S1S SCUFF,SIDE SILL RR,LGray グレ-; 2008-06-01~ |
76162-51K00-S1S |
US $16.85 |
||
|
16
|
16
09409-10312-000 CLIP2008-06-01~ |
09409-10312-000 |
from US $1.13 |
||
|
17
|
17
76170-51K00-S1S TRIM,QTR INNER LWR,RGray グレ-; 2008-06-01~ |
76170-51K00-S1S |
US $55.57 |
||
|
18
|
18
76180-51K00-S1S TRIM,QTR INNER LWR,LGray グレ-; 2008-06-01~ |
76180-51K00-S1S |
US $55.57 |
||
|
19
|
19
76172-51K00-S1S CAP,QTR INNER LOWERGray グレ-; 2008-06-01~ |
76172-51K00-S1S |
US $13.76 |
||
|
20
|
20
09409-10312-000 CLIP2008-06-01~ |
09409-10312-000 |
from US $1.13 |
||
|
21
|
21
76210-51K10-6GS
TRIM,CTR PILLAR UPR,R
グレ-; 2008-06-01~ |
76210-51K10-6GS |
— | ||
|
22
|
22
76220-51K10-6GS
TRIM,CTR PILLAR UPR,L
グレ-; 2008-06-01~ |
76220-51K10-6GS |
— | ||
|
23
|
23
76231-51K00-S1S TRIM,CTR PLR INR LWR,RGray グレ-; 2008-06-01~ |
76231-51K00-S1S |
US $43.42 |
||
|
24
|
24
76241-51K00-S1S
TRIM,CTR PLR INR LWR,L
グレ-; 2008-06-01~ |
76241-51K00-S1S |
— | ||
|
25
|
25
76251-51K00-6GS TRIM,QTR INNER UPPER,RGray グレ-; 2008-06-01~ |
76251-51K00-6GS |
US $27.23 |
||
|
26
|
26
76261-51K00-6GS TRIM,QTR INNER UPPER,LGray グレ-; 2008-06-01~ |
76261-51K00-6GS |
US $27.23 |
||
|
27
|
27
09409-07335-000 CLIP2008-06-01~ |
09409-07335-000 |
from US $1.04 |
||
|
28
|
28
09409-10312-000 CLIP2008-06-01~ |
09409-10312-000 |
from US $1.13 |
||
|
29
|
29
09409-07308-S1S CLIP(GRAY)グレ-; 2008-06-01~ |
09409-07308-S1S |
US $17.30 |
||
|
30
|
30
76271-51K00-S1S TRIM,TAIL ENDGray グレ-; 2008-06-01~ |
76271-51K00-S1S |
US $61.46 |
||
|
31
|
31
09409-07308-S1S CLIP(GRAY)グレ-; 2008-06-01~ |
09409-07308-S1S |
US $17.30 |
||
|
32
|
32
76291-51K00-000 TRIM,FR DOOR OPENING2008-06-01~ |
76291-51K00-000 |
US $37.17 |
||
|
33
|
33
76295-51K00-000 TRIM,RR DOOR OPENING2008-06-01~ |
76295-51K00-000 |
US $34.78 |
||
|
34
|
34
76410-86G01-6GS GRIP,ASSTGray グレ-; 2008-06-01~ |
76410-86G01-6GS |
US $31.28 |
||
|
35
|
35
76410-86G11-6GS
GRIP,ASST
グレ-; 2008-06-01~ |
76410-86G11-6GS |
— | ||
|
36
|
36
03111-0516A-000 SCREW2008-06-01~ |
03111-0516A-000 |
from US $0.80 |
