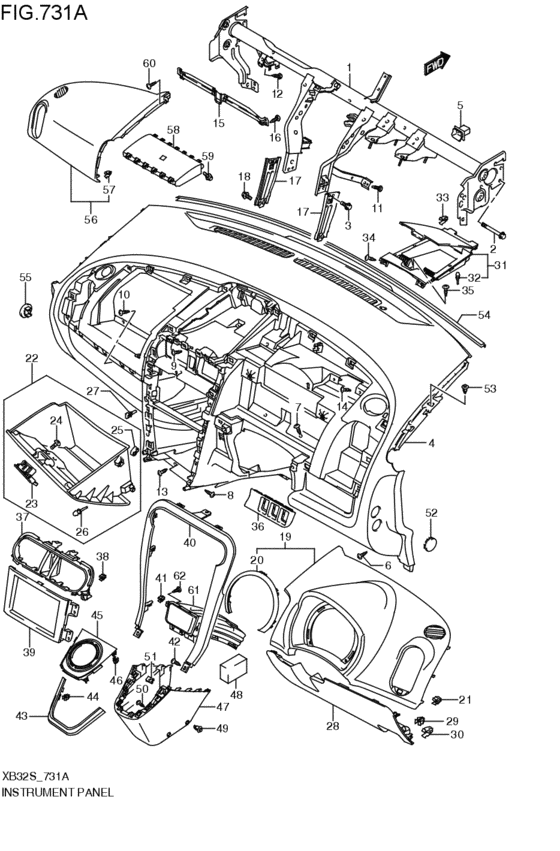

installment panel (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73200-51K00-000
MEMBER,STRG SUPPORT
2008-06-01~ |
73200-51K00-000 |
— | ||
|
2
|
2
73291-50G03-000
Bolt,strg support member side
2008-06-01~ |
73291-50G03-000 |
— | ||
| replacement | |||||
|
2
|
2
73291-50G20-000 BOLT,STRG SPRT MBR SIDE2008-06-01~ |
73291-50G20-000 |
US $2.91 |
||
|
3
|
3
01551-0816C-000 Bolt2008-06-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
4
|
4
73111-51K00-S1S PANEL,INSTR MAINGray グレ-; 2008-06-01~ |
73111-51K00-S1S |
US $401.28 |
||
|
5
|
5
73123-51K00-000 SOCKET,I/P PIN2008-06-01~ |
73123-51K00-000 |
US $1.92 |
||
|
6
|
6
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
7
|
7
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
8
|
8
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
9
|
9
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
10
|
10
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
11
|
11
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
12
|
12
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
13
|
13
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
14
|
14
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
15
|
15
73250-51K00-000
REINFORCEMENT,GLOVE BOX UPR
2008-06-01~ |
73250-51K00-000 |
— | ||
|
16
|
16
03541-0516A-000 SCREW2008-06-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
17
|
17
73261-51K00-000
BRACE,STRG SPRT MBR LWR
2008-06-01~ |
73261-51K00-000 |
— | ||
|
18
|
18
01551-0816C-000 Bolt2008-06-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
19
|
19
73310-51K50-FCY
パネル,インパネクラスタ(ブルー/シルバー)
グレー/グレー/シルバー; ES; 2009-08-01~ |
73310-51K50-FCY |
— | ||
|
20
|
20
73312-51K00-U3L
GARNISH,SPDOM
シルバ-; 2008-06-01~ |
73312-51K00-U3L |
— | ||
|
21
|
21
09409-08342-000 CLIP2008-06-01~ |
09409-08342-000 |
from US $0.68 |
||
|
22
|
22
73410-51K00-S1S
Box, glove
グレ-; 2008-06-01~ |
73410-51K00-S1S |
— | ||
| replacement | |||||
|
22
|
22
73410-51K01-S1S BOX,GLOVEグレ-; 2008-06-01~ |
73410-51K01-S1S |
US $104.88 |
||
|
23
|
23
73430-86G00-S1S LOCK,GLOVE BOXGray グレ-; 2008-06-01~ |
73430-86G00-S1S |
US $45.60 |
||
|
24
|
24
02142-0412A-000 SCREW2008-06-01~ |
02142-0412A-000 |
from US $2.04 |
||
|
25
|
25
73413-65D00-000 CUSHION,GLOVE BOX2008-06-01~ |
73413-65D00-000 |
US $2.43 |
||
|
26
|
26
73413-82C00-000 CUSHION2008-06-01~ |
73413-82C00-000 |
US $1.60 |
||
|
27
|
27
73461-54G00-000 CUSHION,GLOVE BOX LID2008-06-01~ |
73461-54G00-000 |
US $2.13 |
||
|
28
|
28
73811-51K00-S1S
COVER,STRG COLUMN HOLE
グレ-; 2008-06-01~ |
73811-51K00-S1S |
— | ||
|
29
|
29
09409-08342-000 CLIP2008-06-01~ |
09409-08342-000 |
from US $0.68 |
||
|
30
|
30
09409-08326-000 CLIP2008-06-01~ |
09409-08326-000 |
from US $0.76 |
||
|
31
|
31
73820-51K01-S1S BOX,I/P CTR UPPERGray グレ-; 2008-06-01~ |
73820-51K01-S1S |
US $149.78 |
||
|
32
|
32
73826-51K00-000
CUSHION,I/P CTR UPR
2008-06-01~ |
73826-51K00-000 |
— | ||
|
33
|
33
09409-08342-000 CLIP2008-06-01~ |
09409-08342-000 |
from US $0.68 |
||
|
34
|
34
03541-0516A-000 SCREW2008-06-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
35
|
35
09409-06322-S1S CLIP(GRAY)グレ-; 2008-06-01~ |
09409-06322-S1S |
US $23.60 |
||
|
36
|
36
73831-51K00-S1S
Bezel, i/p switch
グレ-; 2008-06-01~ |
73831-51K00-S1S |
— | ||
|
37
|
37
73841-51K00-S1S GARNISH,I/P CTRGray グレ-; 2008-06-01~ |
73841-51K00-S1S |
US $23.92 |
||
|
38
|
38
09409-08342-000 CLIP2008-06-01~ |
09409-08342-000 |
from US $0.68 |
||
|
39
|
39
73861-51K10-S1S
ガーニッシュ,インパネセンタロア(グレー)
グレ-; 2008-06-01~ |
73861-51K10-S1S |
— | ||
|
40
|
40
73871-51K00-ZCP ORNAMENT,I/P CENTERGray グレ-; 2008-06-01~ |
73871-51K00-ZCP |
US $32.75 |
||
|
41
|
41
09409-08342-000 CLIP2008-06-01~ |
09409-08342-000 |
from US $0.68 |
||
|
42
|
42
03141-0512A-000 SCREWScrew, belt cooling duct 2008-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
43
|
43
73872-51K00-ZCP ORNAMENT,I/P SHIFTGray グレ-; 2008-06-01~ |
73872-51K00-ZCP |
US $14.68 |
||
|
44
|
44
09409-08342-000 CLIP2008-06-01~ |
09409-08342-000 |
from US $0.68 |
||
|
45
|
45
73880-51K00-S1S GARNISH,I/P SHIFTGray グレ-; 2008-06-01~ |
73880-51K00-S1S |
US $40.11 |
||
|
46
|
46
09409-08342-000 CLIP2008-06-01~ |
09409-08342-000 |
from US $0.68 |
||
|
47
|
47
73891-51K00-S1S COVER,I/P SHIFT LOWERGray グレ-; 2008-06-01~ |
73891-51K00-S1S |
US $36.25 |
||
|
48
|
48
75853-83E00-000
SILENCER,CONSOLE BOX FRONT
2008-06-01~ |
75853-83E00-000 |
— | ||
|
49
|
49
09409-07308-S1S CLIP(GRAY)グレ-; 2008-06-01~ |
09409-07308-S1S |
US $17.30 |
||
|
50
|
50
03541-0516A-000 SCREW2008-06-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
51
|
51
09148-05045-000 NUT2008-06-01~ |
09148-05045-000 |
from US $0.81 |
||
|
52
|
52
73891-83E00-S1S
CAP,INSTPN SIDE
グレ-; 2008-06-01~ |
73891-83E00-S1S |
— | ||
|
53
|
53
09409-07308-5PK CLIP(BLACK)ブラツク; 2008-06-01~ |
09409-07308-5PK |
from US $0.95 |
||
|
54
|
54
73121-62J00-000 SILENCER,I/P TOP2008-06-01~ |
73121-62J00-000 |
US $18.77 |
||
|
55
|
55
73895-51K00-S1S
Cap, deactivation switch
グレ-; 2008-06-01~ |
73895-51K00-S1S |
— | ||
|
56
|
56
73910-51K00-U3H
DOOR ASSY,PASS A/B
ブル-; 2008-06-01~ |
73910-51K00-U3H |
— | ||
|
56
|
56
73910-51K00-U3J
Door, passeger air bag
グレー; 2009-08-01~ |
73910-51K00-U3J |
— | ||
|
56
|
56
73910-51K00-5PK DOOR ASSY,PASS A/BBlack ブラツク; 2008-06-01~ |
73910-51K00-5PK |
US $213.44 |
||
|
57
|
57
09409-08342-000 CLIP2008-06-01~ |
09409-08342-000 |
from US $0.68 |
||
|
58
|
58
73920-51K10-000 HOUSING ASSY,PASSENGER AIR BAG2008-06-01~ |
73920-51K10-000 |
US $992.64 |
||
|
59
|
59
01551-0816C-000 Bolt2008-06-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
60
|
60
03541-0516A-000 SCREW2008-06-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
61
|
61
73850-51K00-S1S ホルダ,カップ(グレー)グレ-; 2008-06-01~ |
73850-51K00-S1S |
US $170.02 |
||
|
62
|
62
03541-0512A-000 SCREW2008-06-01~ |
03541-0512A-000 |
from US $0.65 |
||
