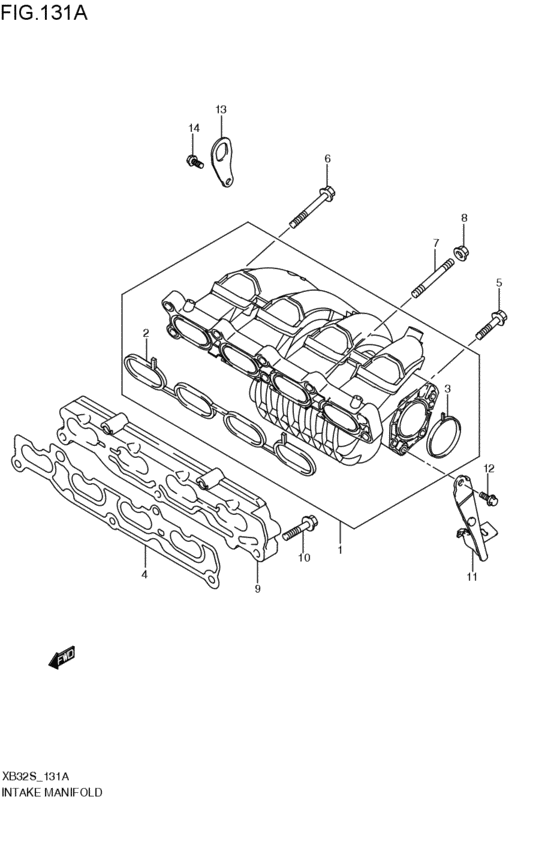

intake manifold (2008-06-01~) Diagram Suzuki SPLASH
- Year
- 2009 - 2011
- Sales region
- Japan
- Engine
- A5B412
- drive
- 2WD
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-73K00-000
Manifold,intake
2008-06-01~ |
13110-73K00-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-73K01-000 MANIFOLD,INTK2008-06-01~ |
13110-73K01-000 |
US $429.44 |
||
|
1
|
1
01550-0835A-000 BOLT2009-05-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
2
|
2
13118-73K00-000 GASKET,INTK MANF2008-06-01~ |
13118-73K00-000 |
from US $13.25 |
||
|
3
|
3
13421-73K00-000 GASKET,THROTTLE BODY2008-06-01~ |
13421-73K00-000 |
from US $6.05 |
||
|
4
|
4
13119-73K00-000 GASKET,INTK MANF2008-06-01~ |
13119-73K00-000 |
US $9.02 |
||
|
5
|
5
01550-0835A-000 BOLT2009-05-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
01550-0835B-000 BOLT2008-06-01~2009-04-01 |
01550-0835B-000 |
from US $1.12 |
||
|
6
|
6
01550-0865A-000 BOLTBolt, oil pump (l) 2008-06-01~ |
01550-0865A-000 |
from US $1.44 |
||
|
7
|
7
01421-0860A-000 BOLT,STUD2008-06-01~ |
01421-0860A-000 |
from US $2.99 |
||
|
8
|
8
08316-1008A-000 NUTNut, idle gear shaft 2008-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
9
|
9
13151-73K00-000 PLATE,INTK MANF2008-06-01~2009-04-01 |
13151-73K00-000 |
US $75.44 |
||
|
9
|
9
13151-73K01-000 PLATE,INTK MANF2009-05-01~ |
13151-73K01-000 |
US $90.53 |
||
|
10
|
10
01550-0840A-000 BOLT2008-06-01~2009-04-01 |
01550-0840A-000 |
from US $1.12 |
||
|
11
|
11
13161-51KA0-000
Stiffener, intk manf
2008-06-01~ |
13161-51KA0-000 |
— | ||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket 2008-06-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
11851-62B00-000 HOOK2008-06-01~ |
11851-62B00-000 |
US $5.02 |
||
|
14
|
14
01550-0816A-000 BOLTBolt, rear 2008-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
